Pentax 67 II User Manual

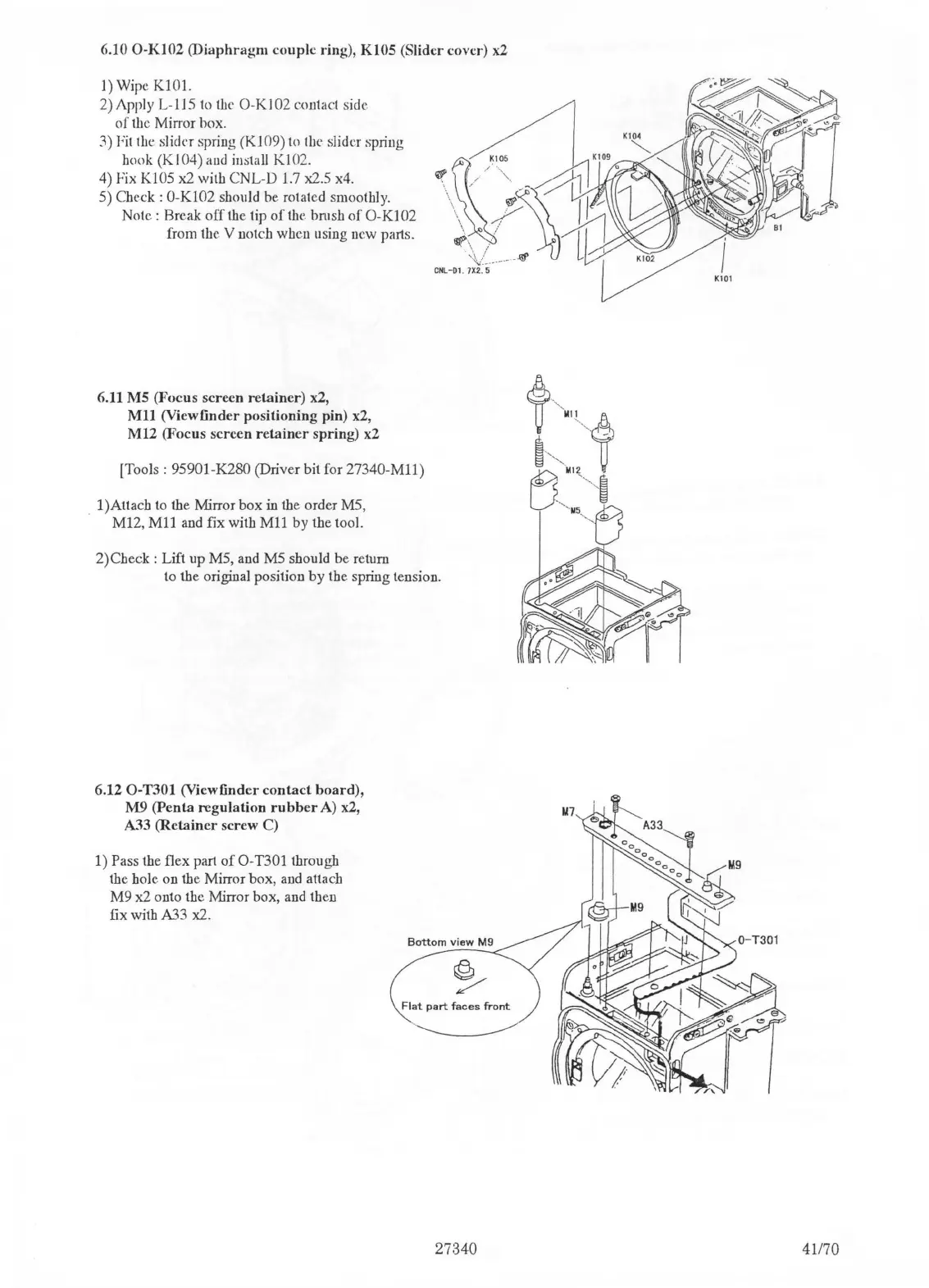

6.10 O-Kl02 (Diaphragm couple ring), K105 (Slider cover) x2
1) Wipe KlOl.
2)Apply L-115 to the O-K102 contact side
of the Mirror hox .
.3) Fit the slider spring (KHl9) to the slider spring
hook
(KI 04) and install KI 02.
4) Fix K105 x2 with CNL-D 1.7 x2.5 x4.
5) Check :
O-Kl02 should be rotated smoothly.
Note: Break off the tip of the brnsh of 0-Kl 02
from the V notch when using new parts.
6.11 MS (Focus screen retainer) x2,
Mll (Viewfinder positioning pin) x2,
M12 (Focus screen
retainer spring) x2
(Tools: 95901-K280 (Driver bit for 27340-Mll)
1 )Attach to the Mirror box in the order MS,
. Ml2, Mll and fix with Mll by the tool.
2)Cbeck : Lift up MS, and
MS should be return
to the
original position by the spring tension.
6.12 O-T301 (Viewfinder contact board),
M9 (Penta regulation rubber A) x2,
A33
(Retainer screw C)
1) Pass the flex part of O-T301 through
the bole on the Mirror box, and attach
M9 x2 onto the Mirror box, and then
fix with A33 x2.
Bottom view M9
Flat part faces front
27:340 41170

Pentax 67 II Specifications

General

Type	Medium format SLR
Film Format	120/220 roll film
Image Size	6x7 cm
Lens Mount	Pentax 67 bayonet mount
Metering	TTL center-weighted metering
Focusing Screen	Interchangeable
Mirror Lock-Up	Yes
Multiple Exposure	Yes
Shutter	Electronically controlled horizontal-travel cloth focal plane shutter
Shutter Speed Range	1/1000 to 4 s, Bulb
ISO Range	6 to 6400
Exposure Modes	Manual, Aperture Priority
Viewfinder	Interchangeable
Flash Sync Speed	1/30 s
Power Source	6V 4LR44 battery
