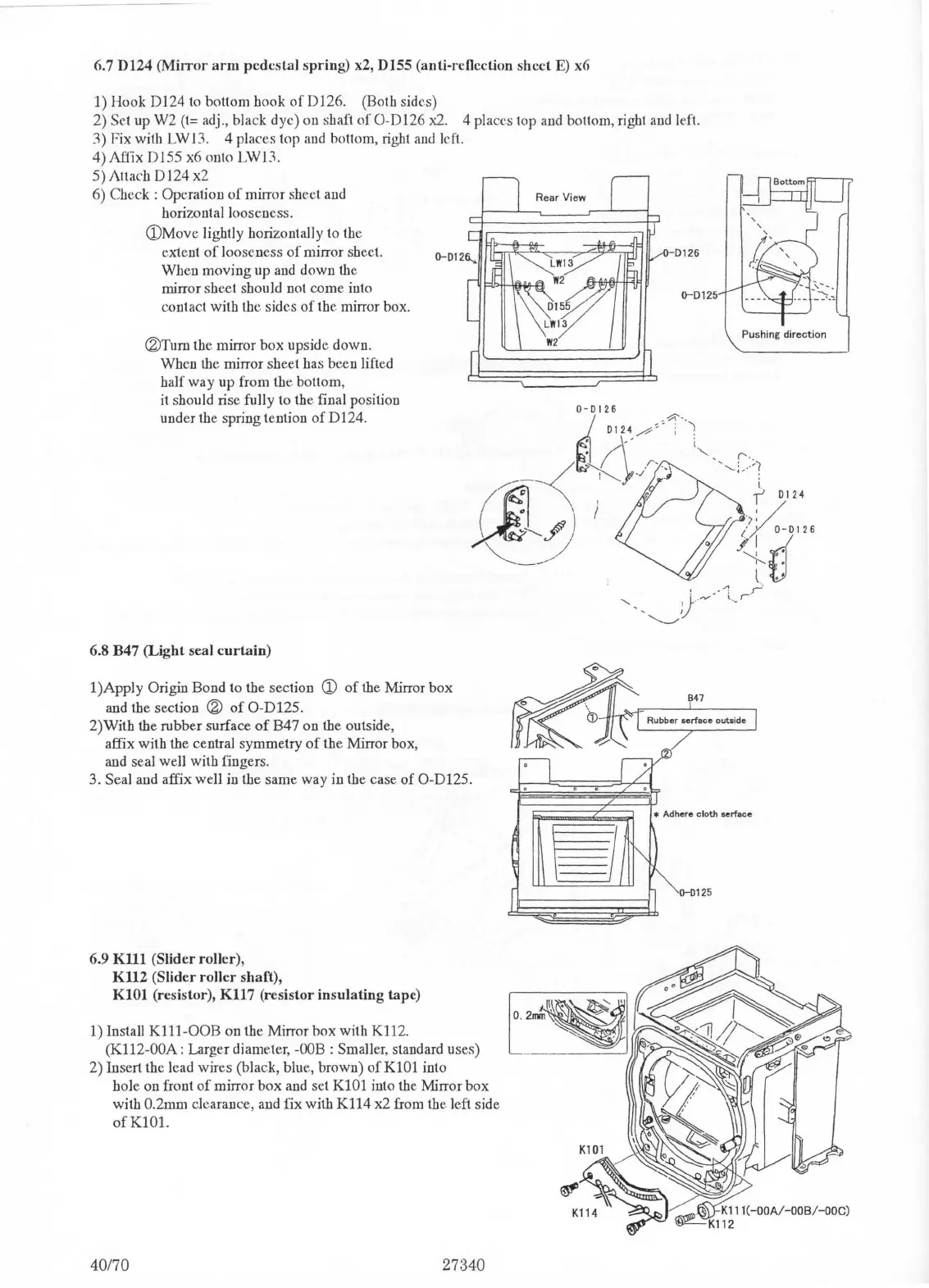

6.7 D124
(Mirror
arm
pedestal
spring)
x2,
Dl55
(anti-rcllection sheet
E)
x6
I)
Hook
Dl24
to bottom
book
of
0126.
(Both sides)
2)
Set up
W2
(t= adj., black
dye)
on shaft
of
0-0126
x2.
4 places top and bottom, right and left.
3)
Fix with LW 13. 4 places top and bottom, right and left.
4)Affix
DISS
x6 onto
LWJ3.
S) Attach
0124
x2
6)
Check
: Operation
of
mirror sheet and Rear View
horizontal looseness.
CDMove lightly horizontally to the
ext.ent
of
looseness
of
mirror sheet.
-0126
When
moving
up and
down
tl1c
mirror sheet should not
come
into
cont act with the sides
of
the
mirror box.
®Tum
the mirror
box
upside
down
.
When the mirror sheet bas been lifted
half
way
up
from the bottom,
it
should rise fully
to
the final position
under the spring tention
of
0124.
6.8 B47
(Light
seal
curtain)
1
)Apply
Origin Bond to the section
CD
of
the Mirror
box
and the section ®
of
0-0125
.
2)Witb
the
rubber
surface
of
B47
on the outside,
affix
with
the central
symmetry
of
the
Mirror
box
,
and seal well with fingers.
3.
Seal and affix
we.I]
in the
same
way
in the case
of
0-012S.
6.9
Klll
(Slider roller),
K112 (Slider
roller
shaft),
KlOI (resistor), K117 (resistor
insulating
tape)
1) Install
Kl11-00B
on the Mirror
box
with K112.
(K112-00A:
Larger diameter,
-OOB
: Smaller, standard uses)
2)
Insert the lead wires (black, blue, brown)
of
KlOl
into
hole
on front
of
mirror
box
and set
KlOl
into the Mirror
box
with
0.2mm clearance, and fix with
K114
x2
from the left side
ofKlOl.
40170 27340
Pushing
direction
