Pentax 67 II User Manual

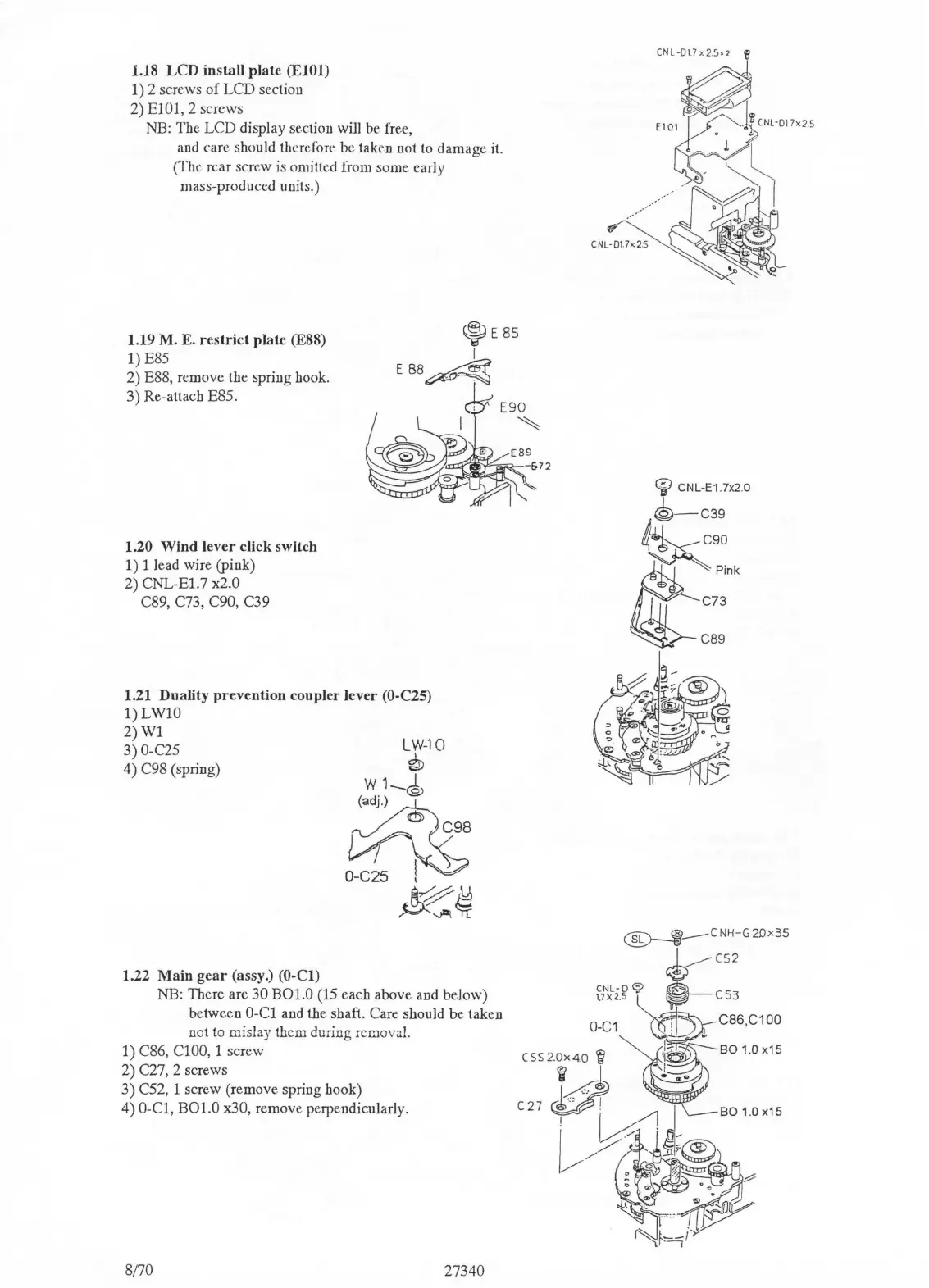

1.18 LCD install plate (ElOl)
1) 2 screws of LCD section
2) EIOl, 2 screws
NB: The LCD display section will be free,
and care should therefore be taken not to damage it.
(The rear
screw is omitted from some early
mass-produced units.)
1.19 M. E. restrict plate (E88)
1)
E85
2) E88, remove the spring hook.
3) Re-attach E85.
1.20 Wind lever click switch
1) 1 lead wire (pink)
2) CNL-El.7
x2.0
C89, C73, C90, C39
~E85
I
E88~
1.21 Duality prevention coupler lever (O-C25)
1) LWlO
2)Wl
3) O-C25
4) C98 (spring)
1.22 Main gear (assy.) (0-Cl)
NB: There are 30 BOLO (15 each above and below)
between
0-Cl and the shaft. Care should be taken
not to mislay them during removal.
1) C86,
ClOO, 1 screw
2) C27, 2 screws
3) C52, 1 screw (remove spring hook)
4)
0-Cl, BOLO x30, remove perpendicularly.
8170
27340
f?
CN L-Dl7x2.S
O-C1
~ CNL-E1 . 7x2 .0
@-c39
~~C90
!{
~Pink
C73
C89
B01 . 0x15

Pentax 67 II Specifications

General

Type	Medium format SLR
Film Format	120/220 roll film
Image Size	6x7 cm
Lens Mount	Pentax 67 bayonet mount
Metering	TTL center-weighted metering
Focusing Screen	Interchangeable
Mirror Lock-Up	Yes
Multiple Exposure	Yes
Shutter	Electronically controlled horizontal-travel cloth focal plane shutter
Shutter Speed Range	1/1000 to 4 s, Bulb
ISO Range	6 to 6400
Exposure Modes	Manual, Aperture Priority
Viewfinder	Interchangeable
Flash Sync Speed	1/30 s
Power Source	6V 4LR44 battery
