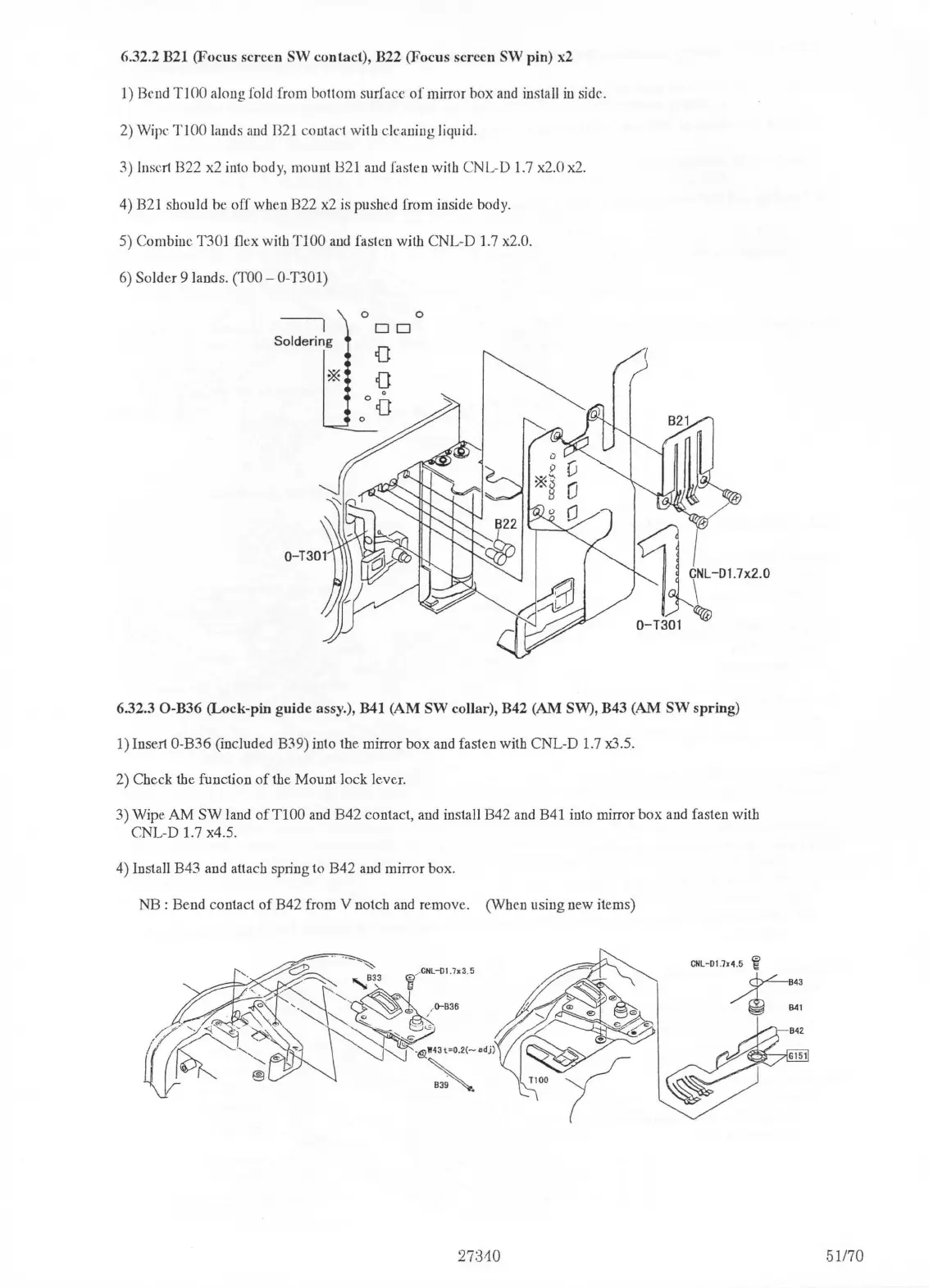

6.32.2 B21 (Focus screen SW contact), Il22 (Focus screen S\V pin) x2
1) Bend Tl 00 along fold from bottom surface of mirror box and install in side.
2)
Wipe TIOO lands and B21 contact with cleaning liquid.
3)
Insert B22 x2 into body, mount B21 and fasten with CN L-D 1.7 x2.0 x2.
4) B21 should
be off when B22 x2 is pushed from inside body.
5) Combine T3011lex with TIOO and fasten with CNL-D 1.7 x2.0.
6) Solder 9 lands. (TOO - O-T301)
---i
0 0
DD
Soldering
6.32.3 O-B36 (Lock-pin guide assy.), B41 (AM SW collar), B42 (AM SW), B43 (AM SW spring)
1) Insert O-B36 (included B39) into the mirror box and fasten with CNL-D 1.7 x3.5.
2)
Check the function of the Mount lock lever.
3) Wipe AM SW land ofTlOO and B42 contact, and install B42 and B41 into mirror box and fasten with
CNL-D
1.7 x4.5.
4) Install B43 and attach spring to
B42 and mirror box.
NB : Bend contact
of B42 from V notch and remove. (When using new items)
27 : 310
CHL-D1.7x4.5 ~
~843
/@ 841
51170
