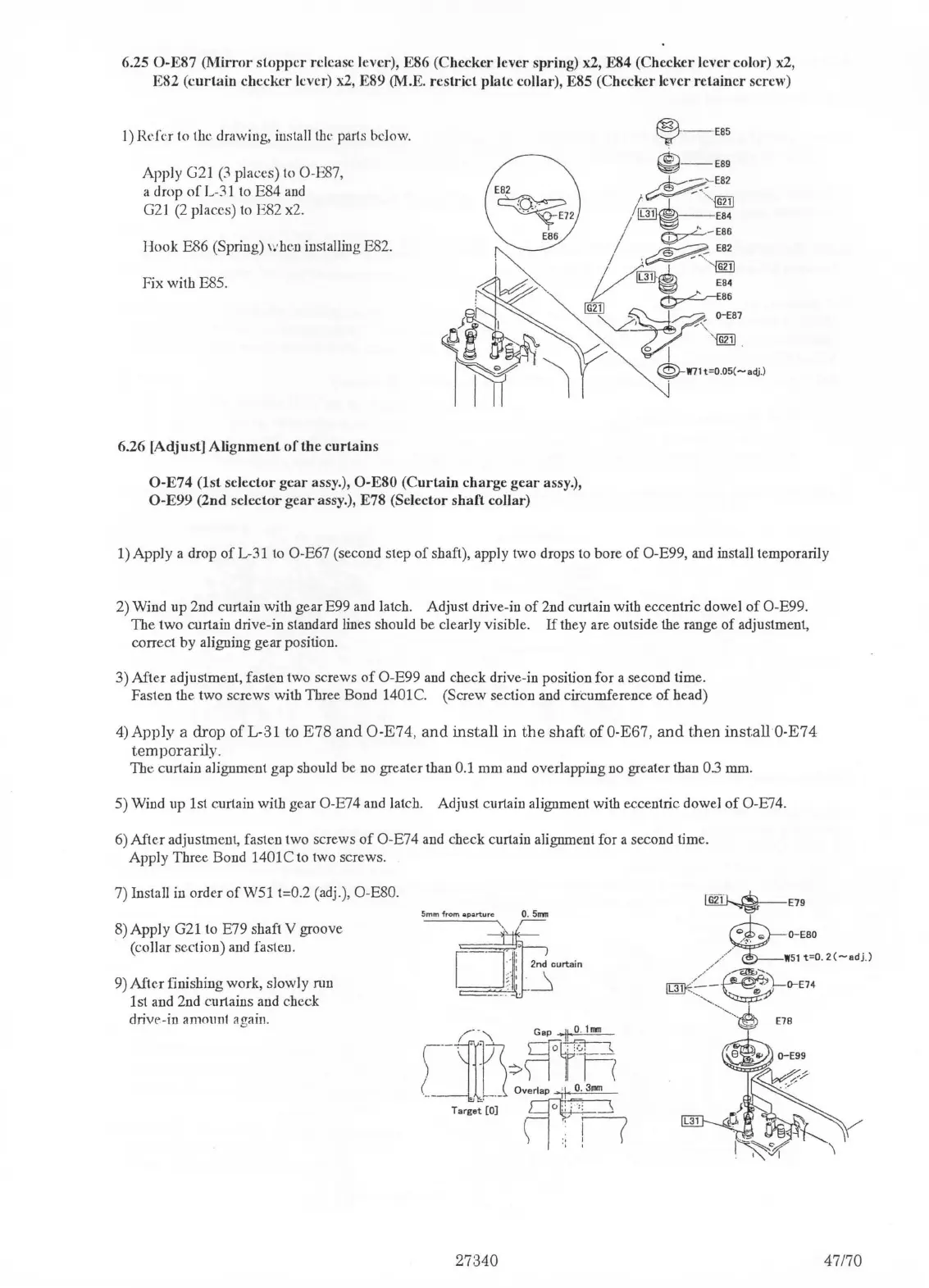

6.25
0-E87
(Mirror
stopper
release lever), E86 (Checker lever spring)
x2,
E84 (Checker lever color)
x2,
E82 (curtain checker lever)
x2,
E89 (M.E. restrict plate collar), E85 (Checker lever retainer screw)
I)
Refer to the drawing, install
the
parts below.
Apply G21
(3
places)
to
O-E87,
a drop
of
L-
31
to
E84
and
G21
(2
places)
to
E82 x2.
Hook E86 (Spring)
when installing E82.
Fix with E85.
6.26 [Adjust]
Alignment
of
the curtains
t>:
.
~
1
O-E74 (1st selector gear assy.), 0-ESO
(Curtain
charge
gear
assy.),
O-E99 (2nd selector
gear
assy.), E78 (Selector shaft collar)
@;J
--
E85
~
-
-EB9
~
~
EB2
I '
'·
@II
l
ffi
- -
EB4
I ,, -
EB6
I
~E82
0
1
:~@,/
/ ''
,,
,m
lillt
EB4
~86
~
>~
-
O-EB7
'-..L.-' .
/'\.
' @
0 I .
($/-W71t
=O
.05( -
acjj
.)
1) Apply a drop
of
L-31
to
O-E67 (second step
of
shaft), apply two drops
to
bore
of
O-E99,
and
install temporarily
2) Wind up 2nd curtain with gear E99
and
latch. Adjust drive-in
of
2nd curtain with eccentric dowel
of
O-E99.
The two curtain drive-in standard lines should be clearly visible.
If
they are outside the range
of
adjustment,
correct by aligning gear position.
3) After adjustment, fasten two screws
of
O-E99
and
check drive-in position for a second time.
Fasten the two screws with Three Bond
1401
C.
(Screw section and circumference
of
bead)
4)
Apply a drop of
L-31
to E78
and
O-E74,
and
install
in
the
shaft
of
O-E67,
and
then
install O-E74
temporarily
.
The curtain alignment gap should be no greater than 0.1 mm
and
overlapping
no
greater than 0.3 mm.
5) Wind up 1st curtain with gear
O-E74
and
latch. Adjust curtain alignment with eccentric dowel
of
O-E74.
6)
After adjustment, fasten two screws
of
O-E74 and check curtain alignment for a second time.
Apply Three Bond
1401C to two screws.
7) Install in order
ofW51
t=0.2 (adj.), O-E80.
8)Apply
G21 to E79 shaft V groove
(collar section)
and
fasten.
9) After finishing work, slowly run
1st and 2nd curtains and check
drive-in
amount again.
5mm from ap.arturc 0.
Srrm
t
jf
..
~'"
~E79
~O-ESO
//
~W51t=O.2(-adj.)
/
~-
~
~
-~J}_O-E74
. I _
__)
~
...
-
...........
~
'-....
.
.....
_e E78
\]_(.~
A°F
(_
l
.t~v~rlap
ti
OD
Target[O]
~
\ (
\ I : !
27340
47/70
To Next Page
