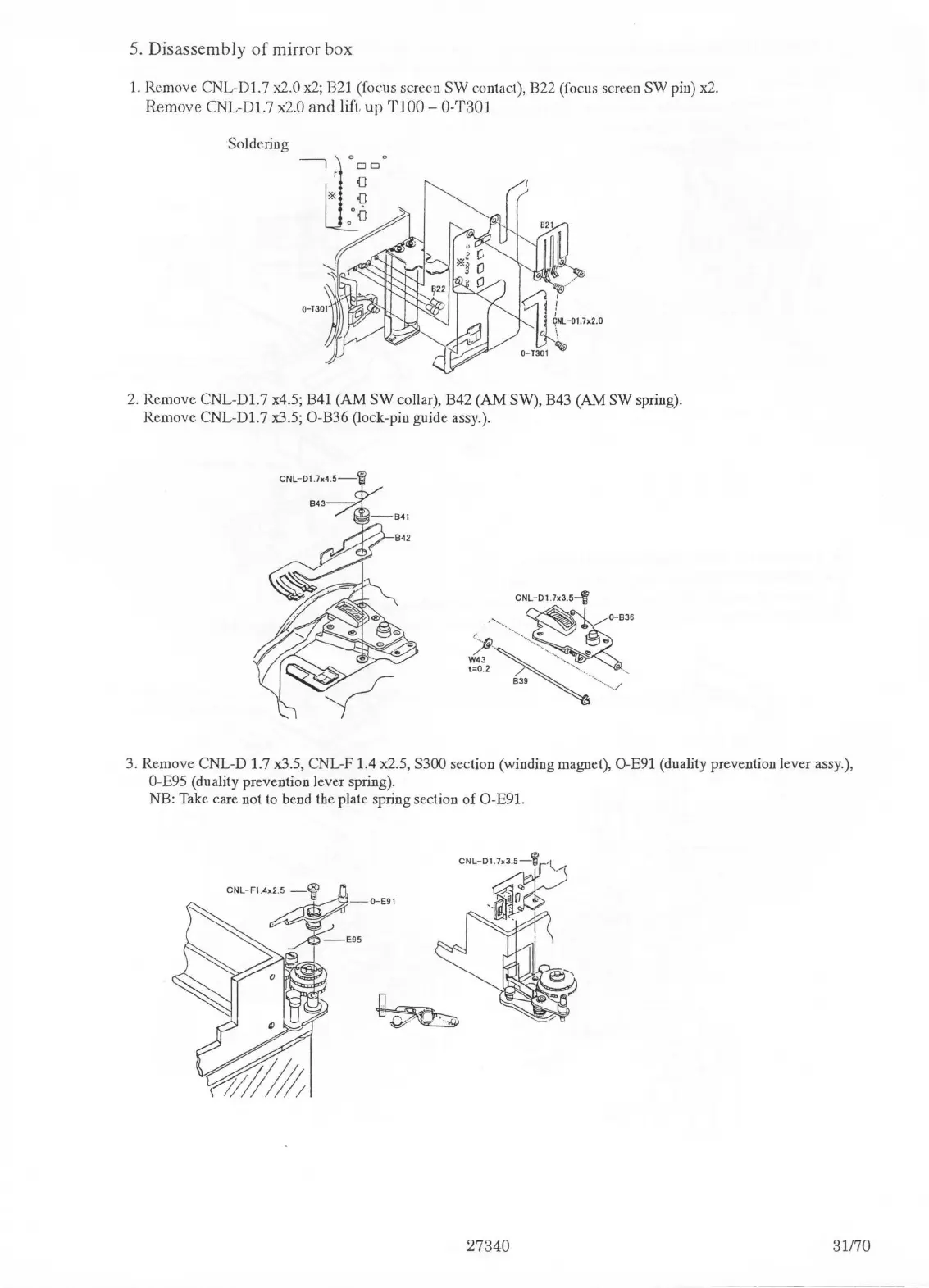

5.
Disassembly
of
mirror box
1.
Remove CNL-Dl.7
x2
.0 x2;
1321
(focus screen SW contact), B22 (focus screen SW pin) x2.
Remove
CNL-Dl.7 x2.0
and
lift
up
TJOO - O-T301
Soldering
2.
Remove
CNL-Dl.7
x4.5; B41 (AM
SW
collar), B42 (AM SW), B43 (AM SW spring).
Remove
CNL-Dl.7
x3.5; O-B36 (lock-pin guide assy.).
CNL-D1.7x4
.
5-~
CNL-D
t.7x3.5-i
3. Remove CNL-D 1.7 x3.5, CNL-F 1.4 x2.5, S300 section (winding magnet), O-E91 (duality prevention lever assy.),
O-E95
(duality prevention lever spring).
NB: Take care not
to
bend the plate spring section
of
O-E91.
