Pentax 67 II User Manual

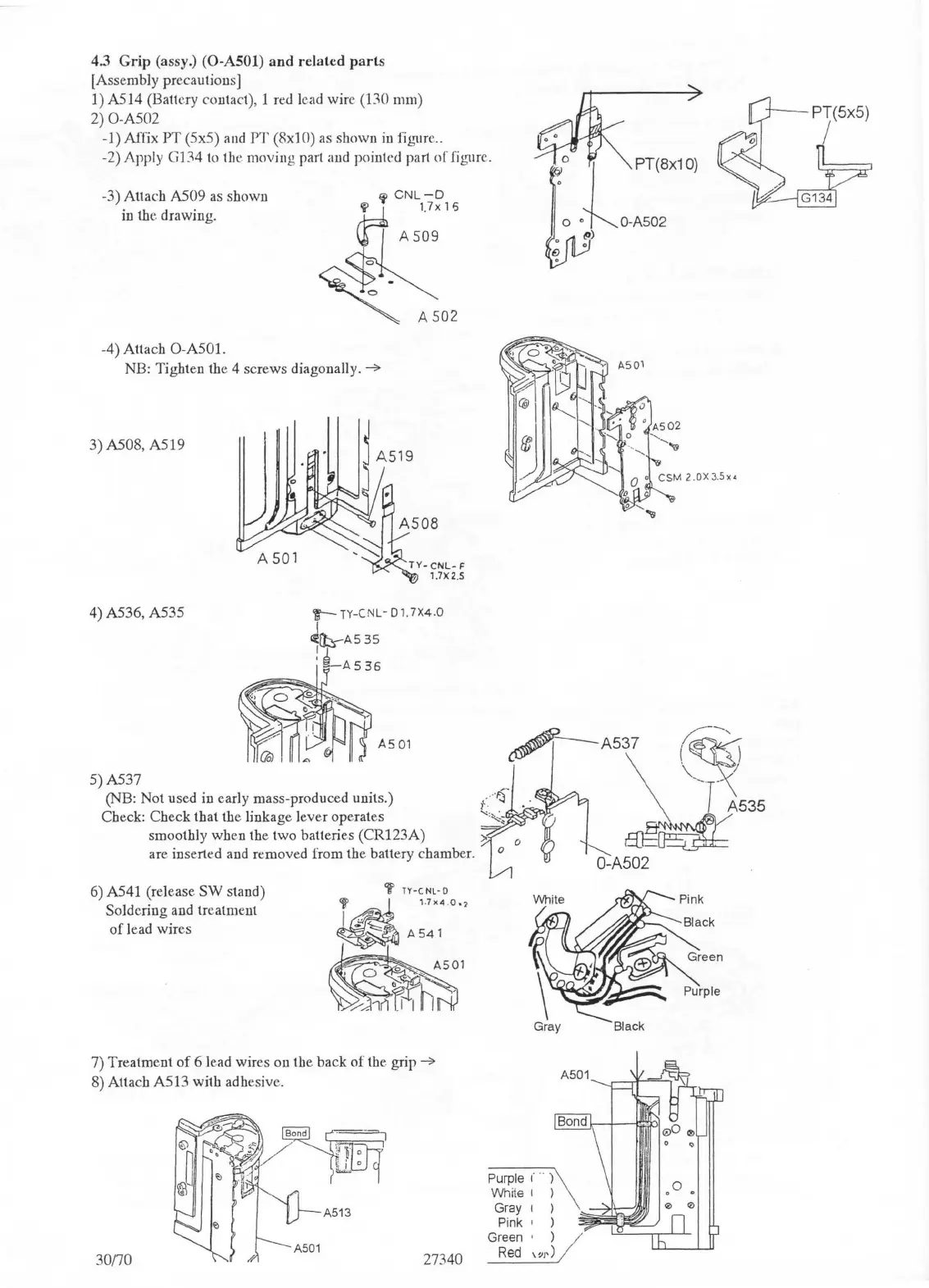

4.3 Grip (assy.) (0-A501) and related parts
[Assembly precautions]
l)A514 (Battery contact), 1 red lead wire (BO mm)
2)
0-A502
-1) Allix PT (SxS) and PT (8x10) as shown in figure ..
-2) Apply
Gl 34 to the moving part and pointed part of fi1:,ri1re .
-3) Attach A509 as shown
in the drawing.
-4) Attach
0-ASOl.
'j' CNL-0
g 1.7x 16
~ T A 509
A 502
NB: Tighten the 4 screws diagonally.__.,.
3) A508, A519
A501
4) A536, A535
6) A541 (release
SW stand)
Soldering and treatment
of lead wires
~ A519
f-TY-CNL- 01. 7X4.0
~[L-A535
! ~-A 5 36
'f TY·CNL-0
r ~ , . 7.4 . 0.,
~A541
7) Treatment of 6 lead wires on the back of the grip---?>
8) Attach A513 with adhesive.
30170
27340
Purple i' ·· )
White
I )
Gray 1 )
Pink ' )
Green · ) /
Red ,~1,)
PT(5x5)
o I
PT(8x10)
~

Pentax 67 II Specifications

General

Type	Medium format SLR
Film Format	120/220 roll film
Image Size	6x7 cm
Lens Mount	Pentax 67 bayonet mount
Metering	TTL center-weighted metering
Focusing Screen	Interchangeable
Mirror Lock-Up	Yes
Multiple Exposure	Yes
Shutter	Electronically controlled horizontal-travel cloth focal plane shutter
Shutter Speed Range	1/1000 to 4 s, Bulb
ISO Range	6 to 6400
Exposure Modes	Manual, Aperture Priority
Viewfinder	Interchangeable
Flash Sync Speed	1/30 s
Power Source	6V 4LR44 battery
