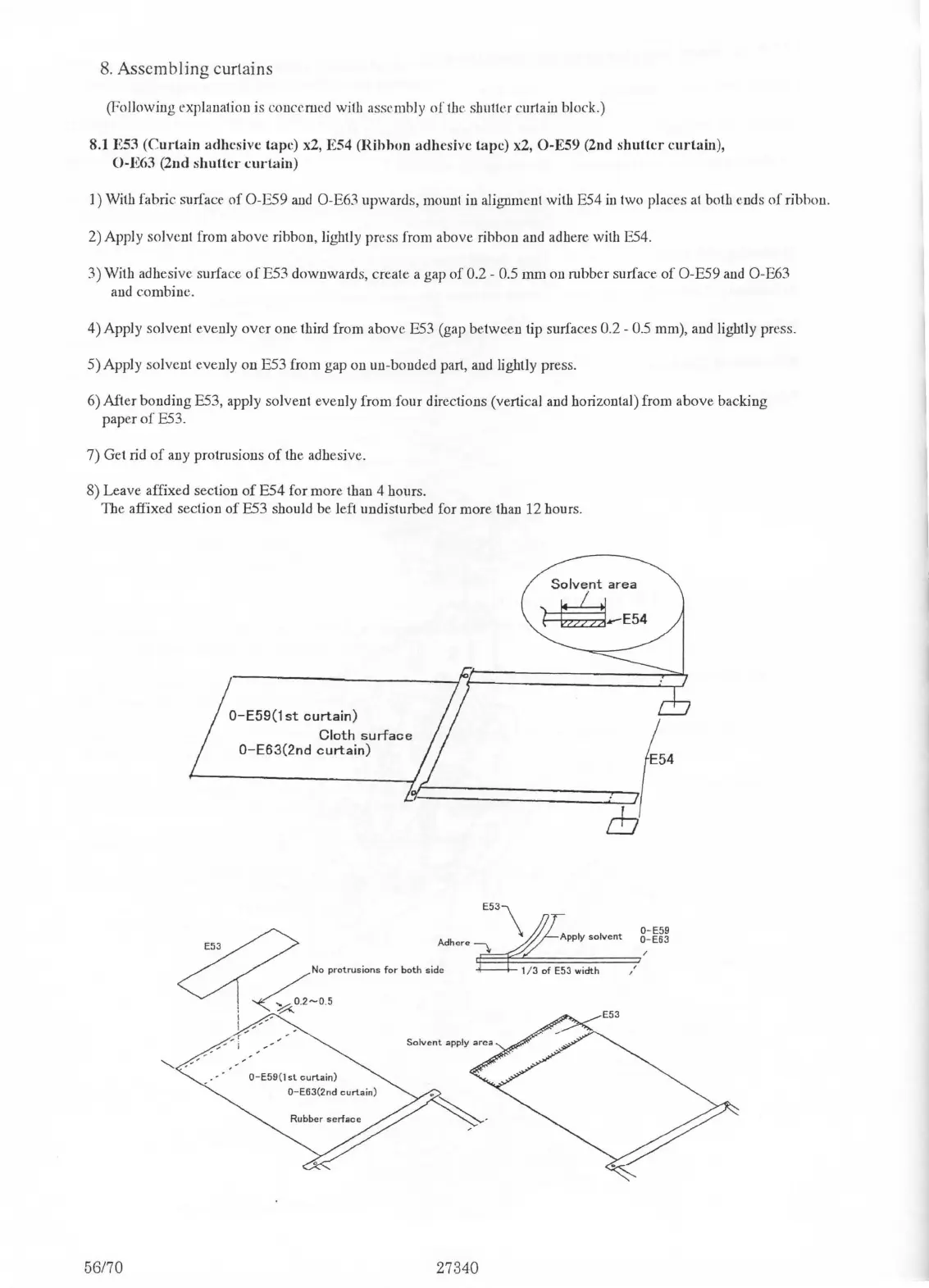

8.
Assembling
curtains
Wollowing explanation is concerned witli assembly
of
tlic shutter curtain block.)
8.1 E53
(Cmtain
adhesive tape) x2, E54 (Rihhon adhesive tape) x2, O-E59 (2nd
shutter
curtain),
O-E63 (2nd
shutter
curtain)
] ) With fabric surface
of
O-E59
and
O-E63 upwards, mount in alignment with E54
in
two places
at
both ends
of
ribbon.
2) Apply solvent from above ribbon, lightly press from above ribbon and adhere with E54.
3) With adhesive surface
ofE53
downwards, create a gap
of
0.2 - 0.5 mm on rnbber surface
of
O-E59
and
O-E63
and
combine.
4) Apply solvent evenly
over
one third from above E53 (gap between tip surfaces 0.2 - 0.5 mm), and lightly press.
5)
Apply solvent evenly on E53 from gap on un-bonded part, and lightly press.
6) Af1er bonding E53, apply solvent evenly from four directions (vertical
and
horizontal) from above backing
paper
of
E53.
7) Get rid
of
any protrnsions
of
the adhesive.
8) Leave affixed section
of
E54 for more than 4 hours.
The affixed section
of
E53 should be left undisturbed for more than 12 hours.
56170
Solvent area
~-E54
0-E59(1
st
curtain)
Cloth surface
f
~~~o_-_E_6-3(_2_n_d_c_u_rt_a_in_)~~zr-~~~~~~~~~~.--.
E54
0
Ey/
Adhere~
~
/,
No
protrusions
for
both
side
:
~-05
!
.,."'
"'
I '
, r
'
;
O- E59(1
st
curtain)
O- E63(2nd
curtain)
27340
Apply
solvent
E53
'
,
0-E59
0- E63
