Pentax 67 II User Manual

Disassembly and assembly procedure
NB: In order to prevent static destruction of the inner circuit, use should be made of conductive mats
and wrist straps.

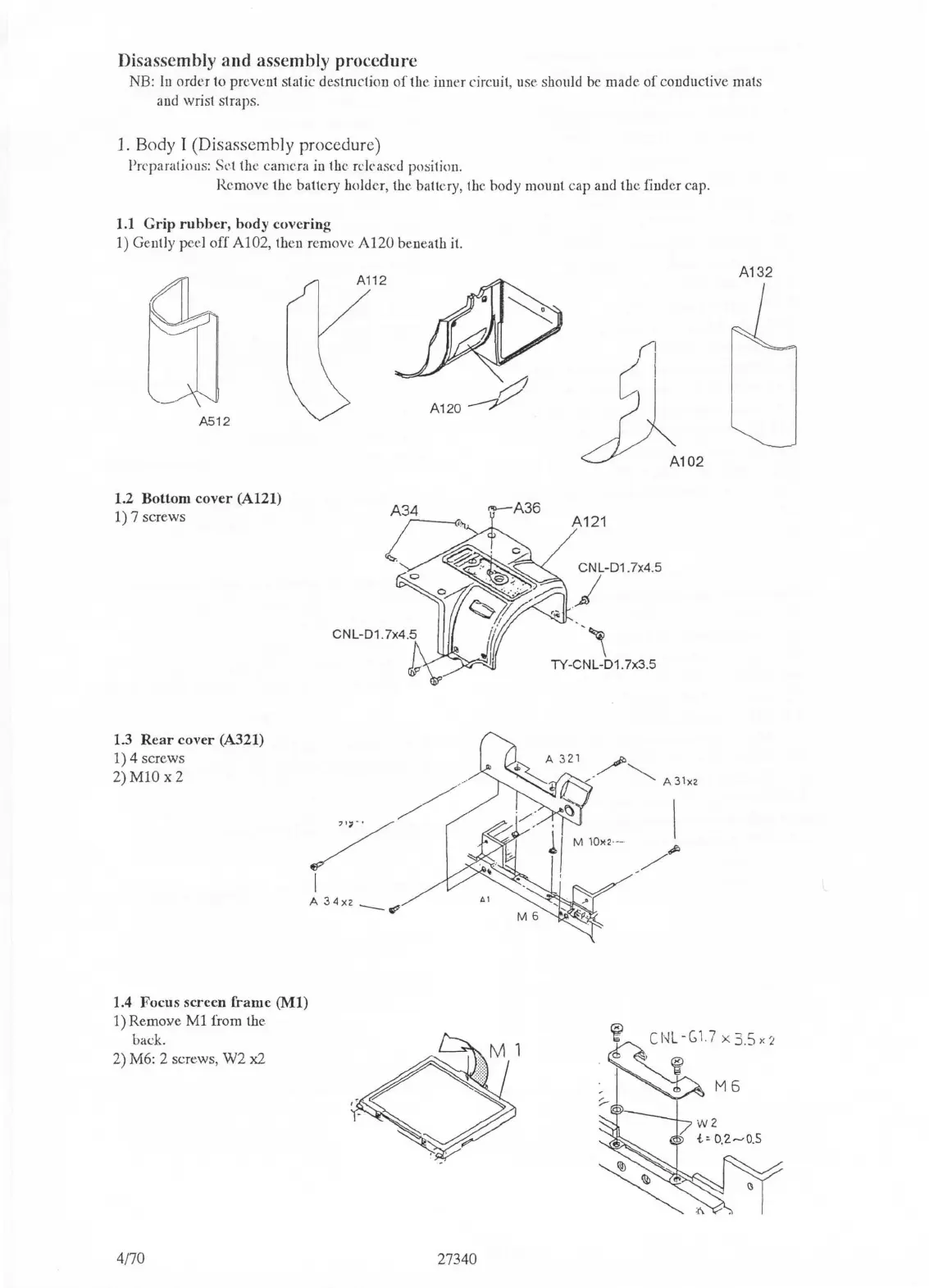

J. Body I (Disassembly procedure)
l'rcparatiou~: Sc.t the camera in the released position.
Remove the battery holder, the battery, the body mount cap
and the finder cap.
1.1 Grip rubber, body covering
I) Gently peel off A102, then remove A120 beneath it.
A512
1.2 Bottom cover (Al21)
1) 7 screws
1.3 Rear cover (A321)
1) 4 screws
2)Ml0 x2
1.4 Focus screen frame (Ml)
1) Remove Ml from the
back.
2) M6: 2 screws,
W2 x2
4170
A112
27340
A132
1
~ 102
~ Cl'lL-G1 .7 x 3.Sx 2
.
~ M 6
::;... en

Pentax 67 II Specifications

General

Type	Medium format SLR
Film Format	120/220 roll film
Image Size	6x7 cm
Lens Mount	Pentax 67 bayonet mount
Metering	TTL center-weighted metering
Focusing Screen	Interchangeable
Mirror Lock-Up	Yes
Multiple Exposure	Yes
Shutter	Electronically controlled horizontal-travel cloth focal plane shutter
Shutter Speed Range	1/1000 to 4 s, Bulb
ISO Range	6 to 6400
Exposure Modes	Manual, Aperture Priority
Viewfinder	Interchangeable
Flash Sync Speed	1/30 s
Power Source	6V 4LR44 battery
