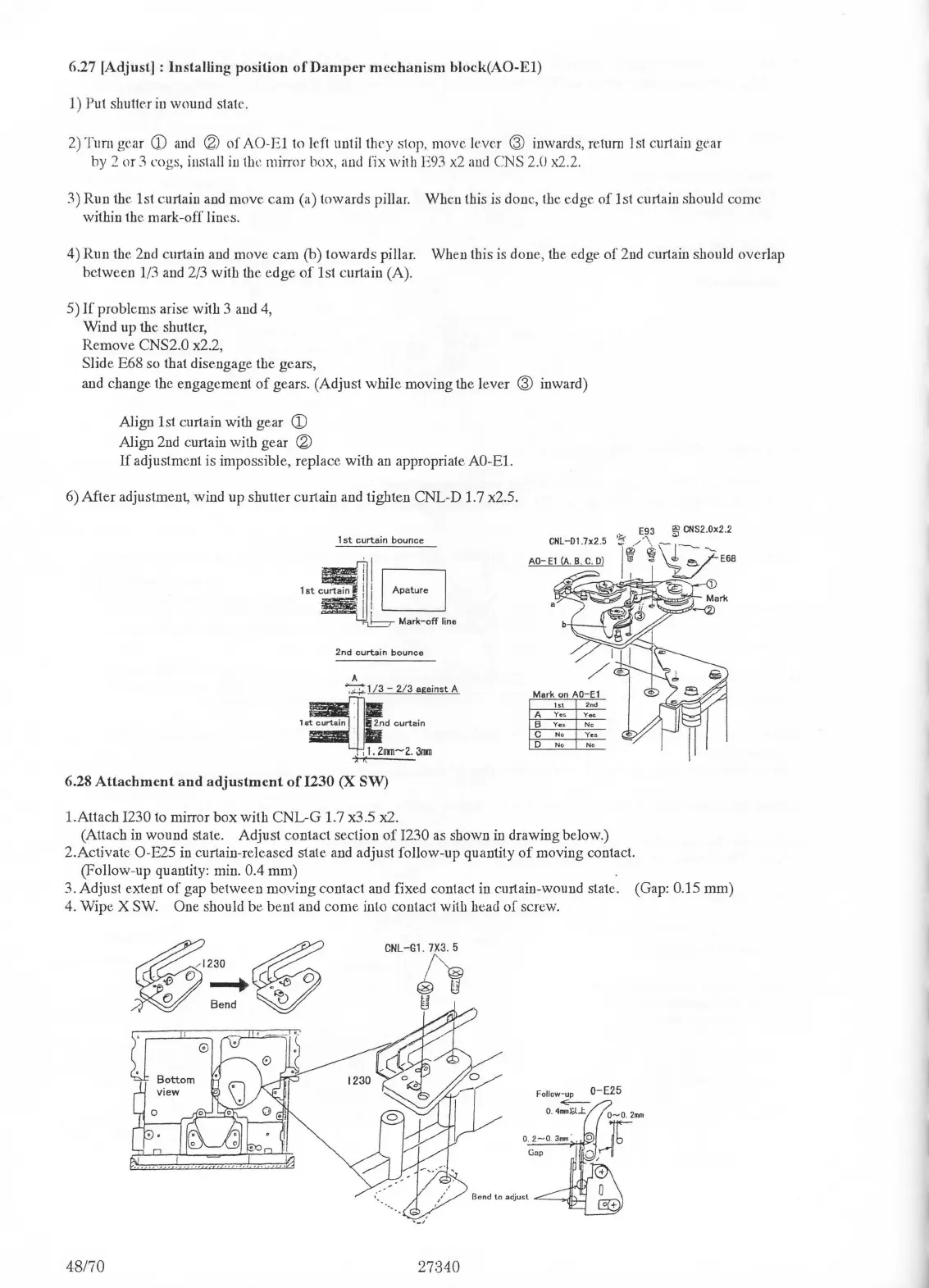

6.27 [Adjust] : Installing position
of
Damper
mechanism
block(AO-El)
1) Put shutter
in
wound state.
2) Turn gear
CD
and
®
of
AO-El
to left until they stop, move k.vcr @ inwards, return 1st curtaiu gear
by
2 or 3 cogs, install
iu
the mirror box, and fix with E93 x2
aud
CNS 2.0 x2.2.
3) Run the 1st curtain
and
move cam (a) towards pillar. When this is done, the edge
of
1st curtain should come
within the mark-off lines.
4) Run the 2nd curtain
and
move cam (b) towards pillar. When this
is
done, the edge
of
2nd curtain should overlap
between
1/3 and 2/3 with the edge
of
1st curtain (A).
5)
If
problems arise with 3 and 4,
Wind up
the shutter,
Remove
CNS2.0 x2.
2,
Slide E68 so that disengage the gears,
and change the engagement
of
gears. (Adjust while moving the lever @ inward)
Align 1st curtain
with gear
CD
Align 2nd curtain with gear ®
If
adjustment is impossible, replace with
au
appropriate AO-El.
6) After adjustment, wind up shutter curtain and tighten CNL-D 1.7 x2.5.
- · 1 r-==l
1stcurtain_
' i
L:__i
b
Mark-off
line
2nd curtain bounce
A
41
/3
- 213
against
A
'••:rn••
,,
1.Z11111
Z.il!nn
6.28
Attachment
and
adjustment
of
U30
(X SW)
I.Attach 1230 to mirror box with CNL-G 1.7 x3.5 x2.
CNL-01 .
7x2.5
A
B
c
D
(Attach
in
wound state. Adjust contact section
of
1230 as shown
in
drawing below.)
2.Activate
O-E25
in
curtain-released state
and
adjust follow-up quantity
of
moving contact.
(Follow-up quantity: min.
0.4 mm)
~ CNS2.0x2.2
3. Adjust
e:>.1ent
of
gap between moving contact and fixed contact
in
curtain-wound state. (Gap: 0.15 mm)
4. Wipe X
SW. One should
be
bent and come into contact with bead
of
screw.
CNL-Gl
.
7X3.5
£)
Li
O-E25
48170
27:340
