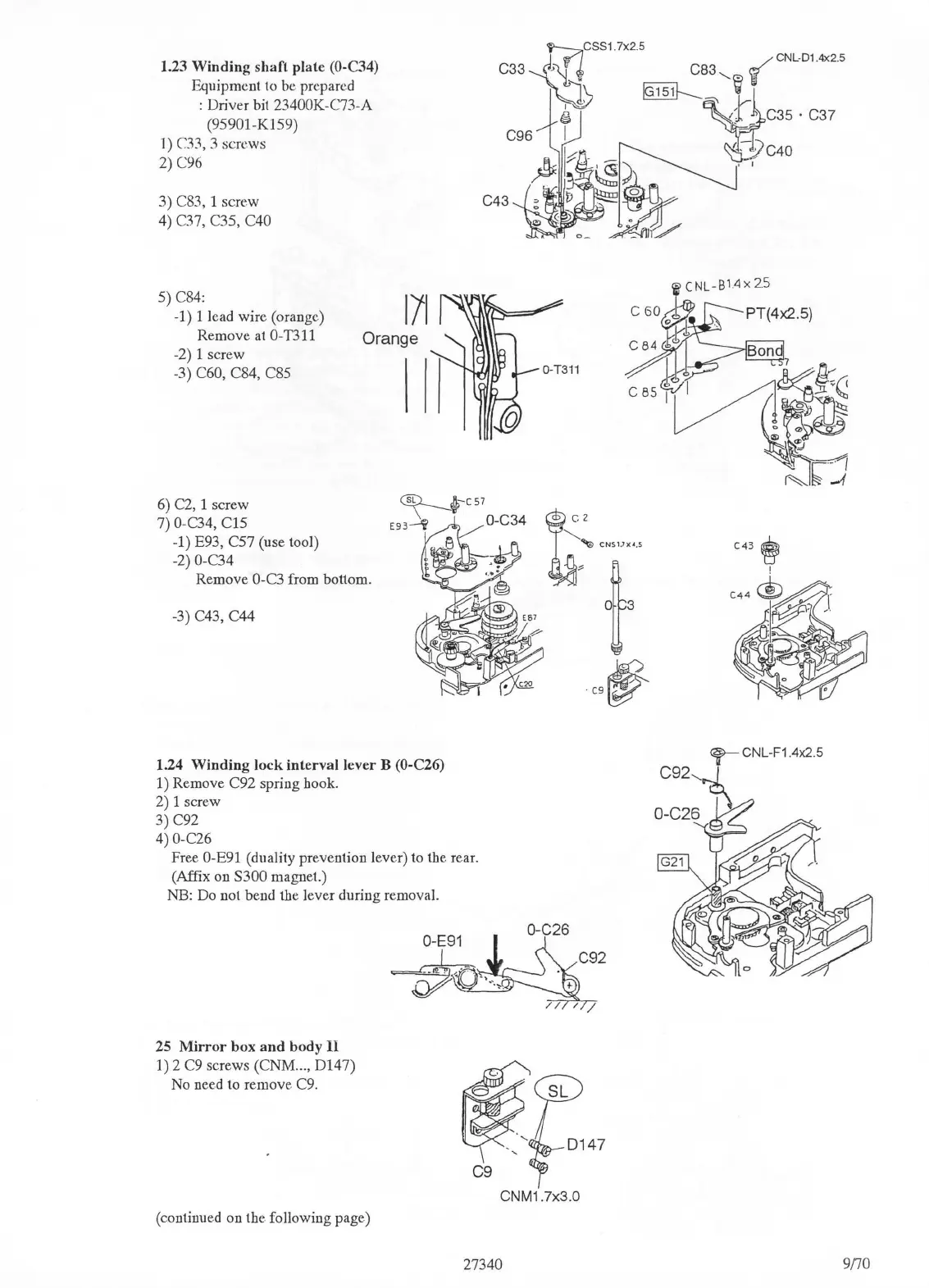

Pentax 67 II - Mirror Box and Body II; Winding Jock Interval Lever B; Winding Shaft Plate

1.23 Winding shaft plate (O-C34)
Equipment to be prepared
: Driver bit
23400K-C73-A
(95901-Kl 59)
1)
C33, 3 screws
2) C96
3) C83, 1 screw
4) C37, C35,
C40
5) C84:
I/I
-1) 1 lead wire (orange)
Remove
at O-T311
-2) 1 screw
Orange
-3) C60, C84, C85
6) C2, 1 screw
7)
O-C34, C15
-1) E93, C57 (use tool)
-2)
O-C34
Remove O-C3 from bottom.
-3) C43, C44
1.24 Winding Jock interval lever B (O-C26)
1) Remove C92 spring hook.
2) 1 screw
3) C92
4)
O-C26
Free O-E91 (duality prevention lever) to the rear.
(Affix on
S300 magnet.)
NB: Do not bend the lever during removal.
25 Mirror box and body II
1) 2 C9 screws (CNM ... , D147)
No need to remove C9 .
(continued on the following page)
CNM1 . 7x3.0
27340
C43 ~
!
C44 ®
:J.~]...,,.,P
Cf-- CNL-F1 .4x2.5
C92"~
O-C26
