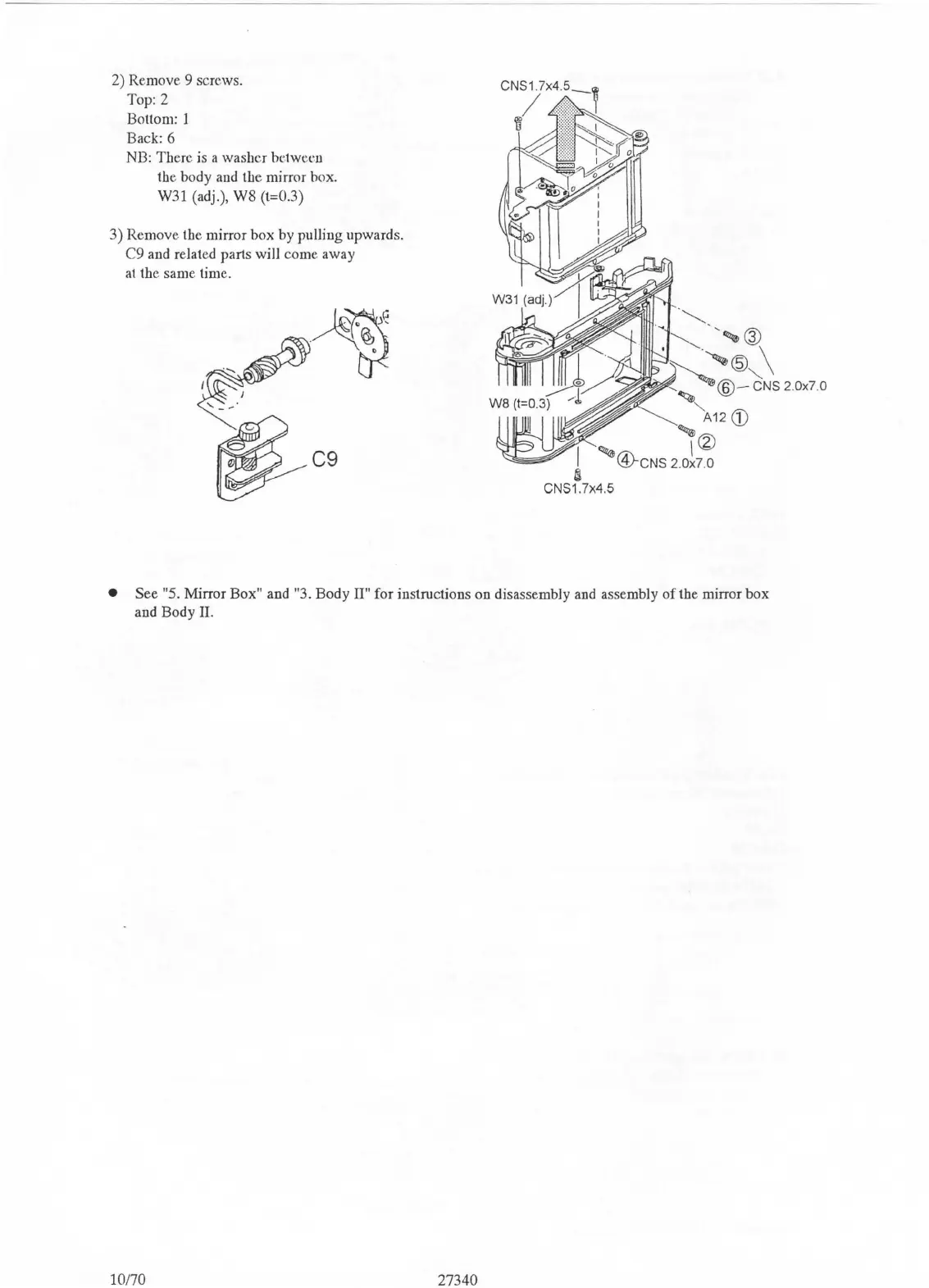

2) Remove 9 screws.
Top:2
Bottom: 1
Back: 6
NB: There is a washer
bc .1wecn
1h c body and the mirror box.
W31 (adj.), W8 (t=0.3)
3) Remove the mirror box by pulling upwards.
C9 and related parts will come away
al the same time.
~C9
. ~-
~~ ''®
·~'@ \
, @- 'cNs 2. Dx7 .o
~ "
A12 CD
'
~ 1®
I ®-cNS 2.0x7.0
~
CNS1.7x4.5
• See "5. Mirror Box" and "3. Body II" for instructions on disassembly and assembly of the mirror box
and Body II.
10170
27340
