Pentax 67 II User Manual

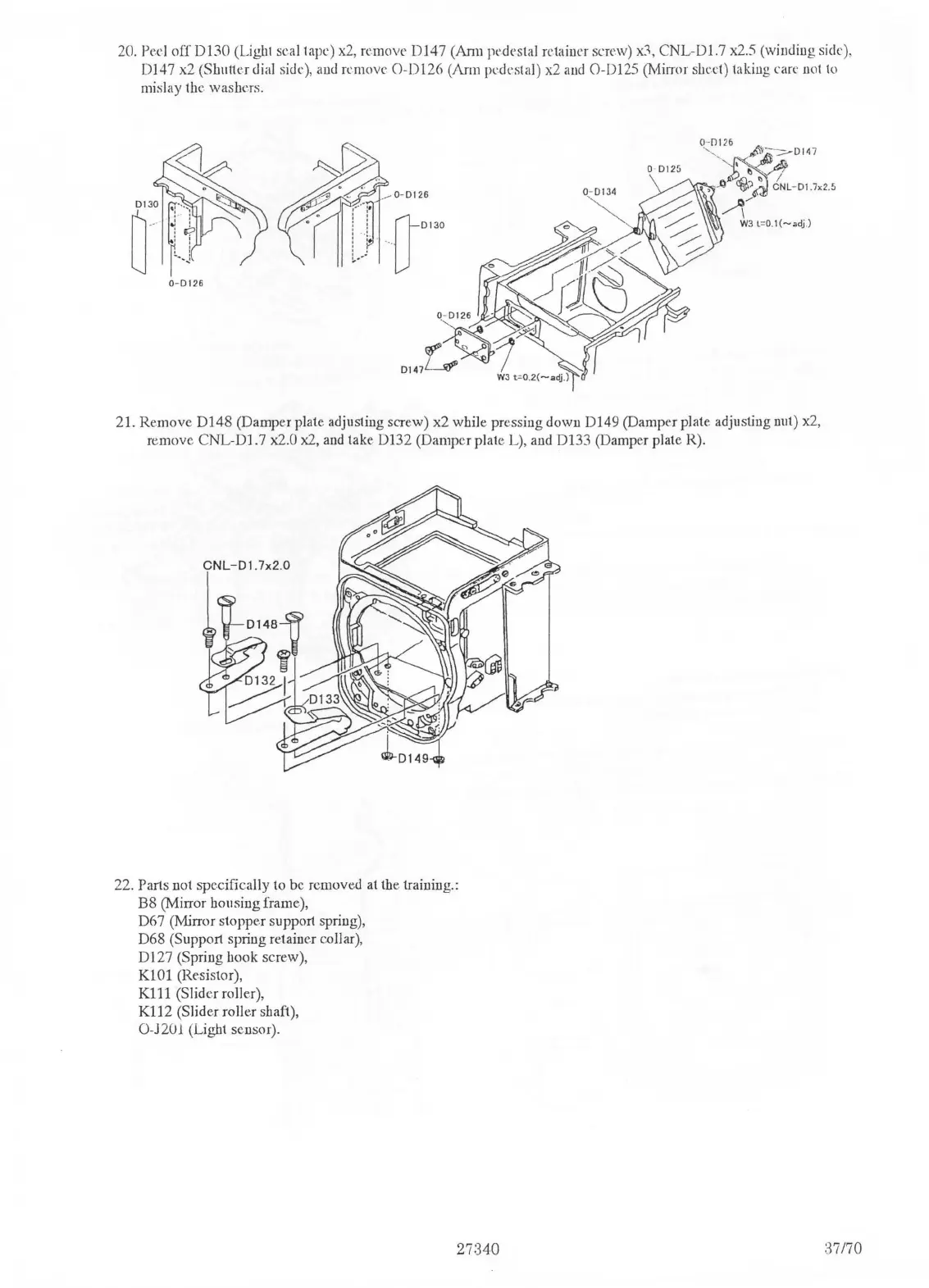

20. Ped off D130 (Light seal tape) x2, remove D147 (Ann pedestal retainer screw) x3, CNL -DJ.7 x2.5 (winding side),
DJ 4 7 x2 (Shutter dial side), and remove 0-D 126 (Ann pedestal) x2 and 0-D 125 (Minor s!Jcct) taking care uot lo
mislay the washers.
0 - 012~ ' ~ ~ ~
<! ~ ~ 1~ 2 6 ""---;::> 01 47
, A ~ ? " c'NL- 01 .7 x2 5
~ --
W3 L=0. 1(- adj.)
0- 0126
21. Remove D148 (Damper plate adjusting screw) x2 while pressing down D149 (Damper plate adjusting nut) x2,
remove
CNL-Dl .7 x2.0 x2, and take D132 (Damper plate L), and D133 (Damper plate R).
CNL-D 1.7x2.0
22. Parts not specifically to be removed at the training.:
B8 (Mirror housing frame),
D67 (Mirror
stopper support spring),
D68 (Support spring
retainer collar),
0127 (Spring hook screw),
KlOl (Resistor),
Kl 11 (Slider roller),
K112 (Slider roller shaft),
0 -J 201 (Light sensor).
37170

Pentax 67 II Specifications

General

Type	Medium format SLR
Film Format	120/220 roll film
Image Size	6x7 cm
Lens Mount	Pentax 67 bayonet mount
Metering	TTL center-weighted metering
Focusing Screen	Interchangeable
Mirror Lock-Up	Yes
Multiple Exposure	Yes
Shutter	Electronically controlled horizontal-travel cloth focal plane shutter
Shutter Speed Range	1/1000 to 4 s, Bulb
ISO Range	6 to 6400
Exposure Modes	Manual, Aperture Priority
Viewfinder	Interchangeable
Flash Sync Speed	1/30 s
Power Source	6V 4LR44 battery
