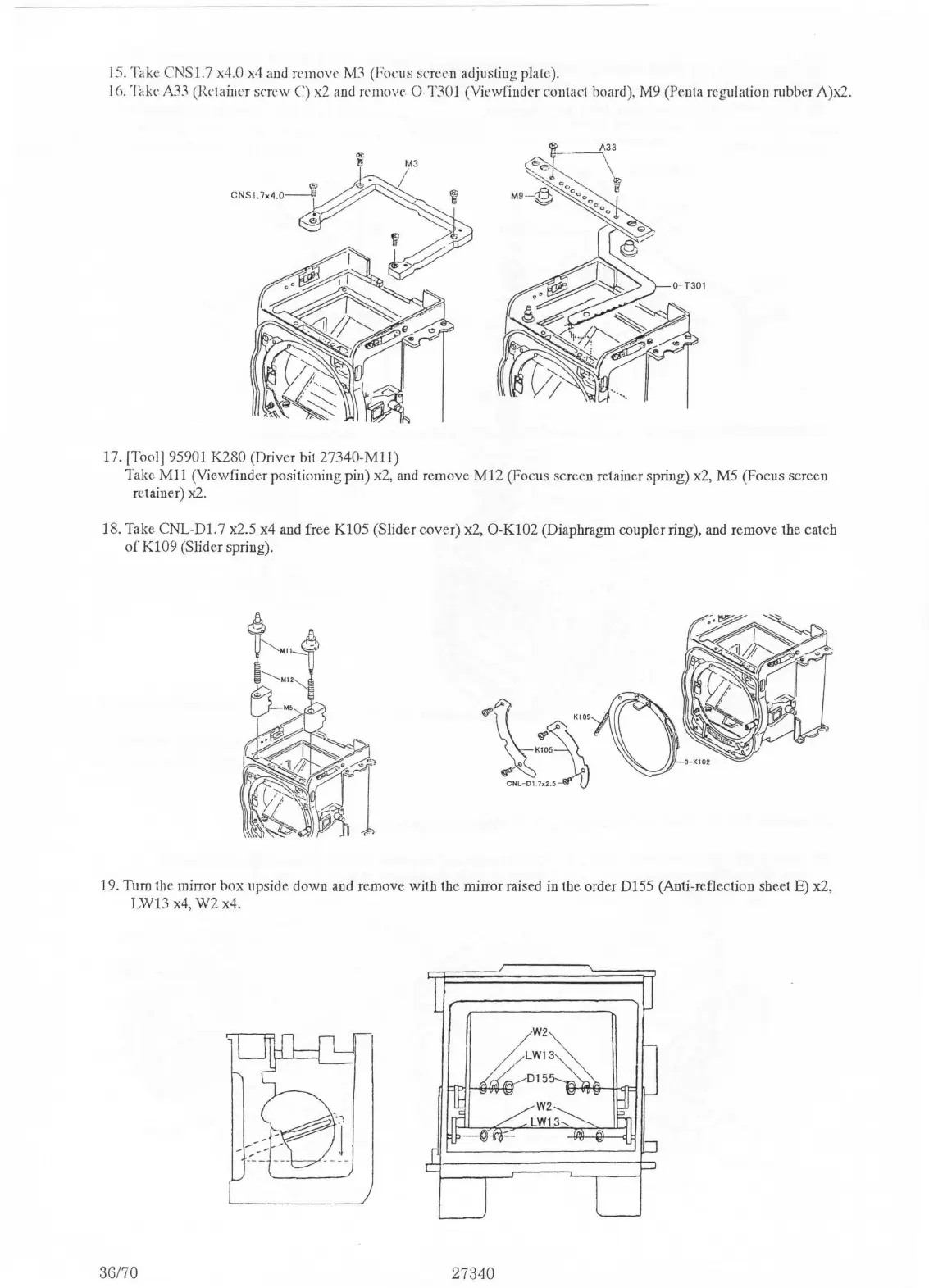

15.
Take CNS 1.7 x4.0 x4 and
.movc
M3
(Focus
scrcrn
adjusting plate).
I (i. "litke
AB
(Rctai11cr screw C) x2 and 1Tmove O-T301 (Viewfinder contact hoard), M9 (Penta regulation rubber
A)x2.
17. [Tool] 95901 K280 (Driver bit
27340-Mll)
Take
Ml
1 (Viewfinder positioning pin) x2, and remove M12 (Focus screen retainer spring) x2,
MS
(Focus screen
retainer)
x2.
18. Take
CNL-Dl.7
x2.5 x4 and free K105 (Slider cover)
x2,
O-Kl02
(Diaphragm coupler ring), and remove the catch
of
K109 (Slider spring).
19. Tum the mirror
box
upside down and remove with the mirror raised in the order D155 (Anti-reflection sheet E) x2,
LW13 x4,
W2
x4.
36170
27340
