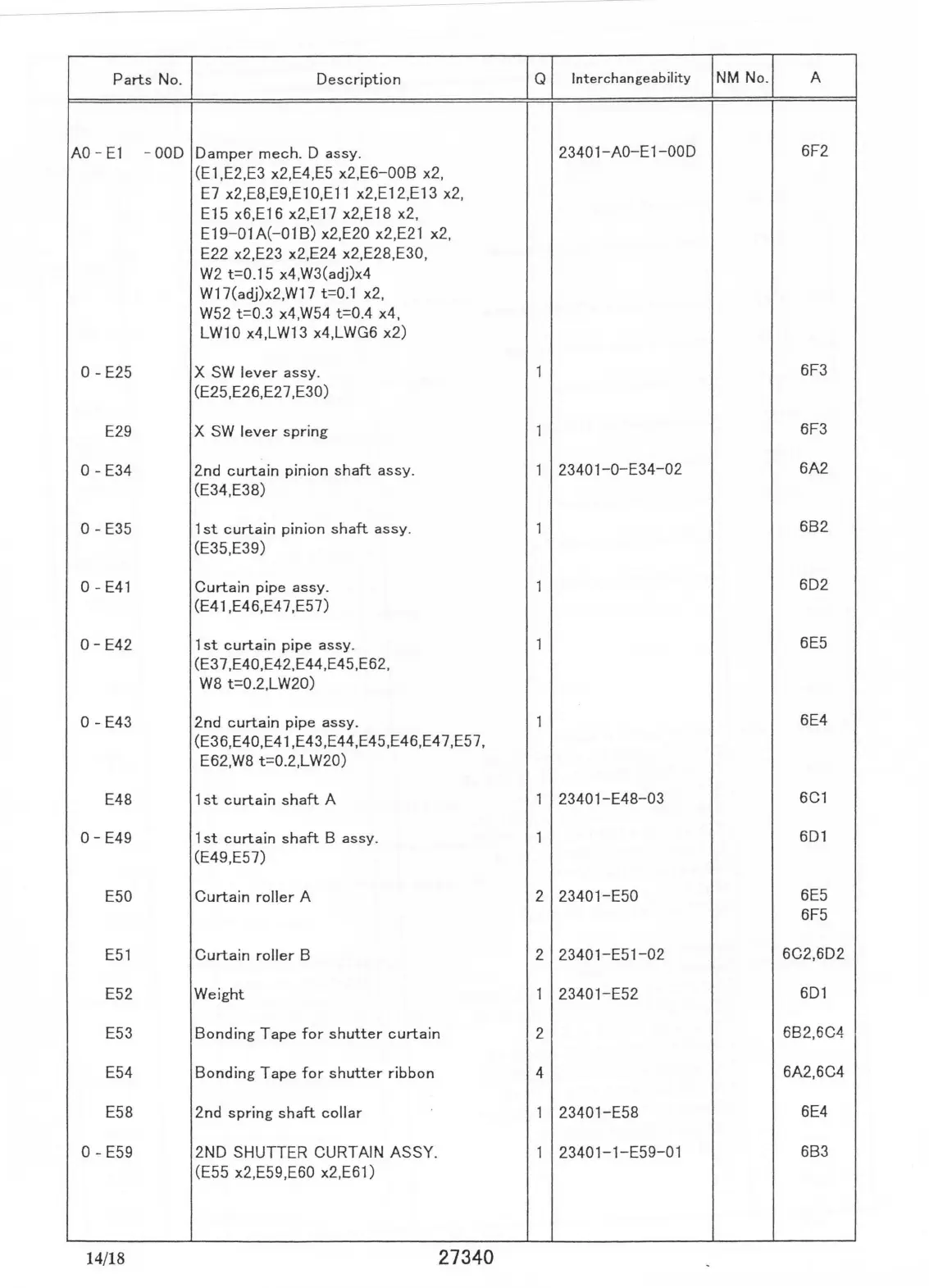

Pentax 67 II User Manual

------
-------------- -
Parts No .
Description
Q
Interchangeability
NM No . A
AO-E1 -DOD
Damper mech. D assy.
23401-AO-E1-00D
6F2
(E1 ,E2,E3 x2,E4, E5 x2,E6-00B x2,
E7 x2,E8,E9,E10,E11 x2,E12,E13 x2,
E15 x6,E16 x2,E17 x2,E18 x2,
E
19-01A(-018) x2,E20 x2, E21 x2,
E22 x2,E23 x2,E24
x2,E28,E30,
W2 t=0.15 x4,W3(adj)x4
W17(adj)x2,W17
t=0.1 x2,
W52 t=0.3 x4,W54 t=0.4 x4,
LW10 x4,LW13 x4,LWG6 x2)
0 -E25 X SW lever assy.
1
6F3
(E25 ,E26,E27
,E30)
E29
X SW lever spring
1
6F3
0 -E34 2nd curtain pinion shaft assy. 1
23401-0-E34-02
6A2
(E34,E38)
0 - E35
1st curtain pinion shaft assy.
1
6B2
(E35,E39)
0 - E41
Curtain pipe assy.
1
602
(E41,E46,E47,E57)
O-E42
1st curtain pipe assy. 1
6E5
(E37,E40,E42,E44,E45,E62,
W8 t=0.2,LW20)
0
-E43
2nd curtain pipe assy.
1
6E4
(E36,E40,E41,E43,E44,E45,E46,
E4 7 ,E57,
E62,W8 t=0 .2,LW20)
E48 1st curtain shaft A
1
23401-E48-03
6C1
O-E49 1st curtain shaft B assy. 1
601
(E49,E57)
ESO Curtain roller A
2
23401 - ESO
6E5
6F5
E51 Curta in roller B
2
23401-E51-02
6C2,6D2
E52 Weight 1
23401-E52
6D1
E53 Bonding Tape for shutter curtain 2
6B2,6C4
E54 Bonding Tape
for shutter ribbon 4
6A2,6C4
E58
2nd spring
shaft collar
1
23401-ESB
6E4
0 - E59
2ND SHUTTER CURTAIN ASSY.
1
23401-1-E59-01
6B3
(E55
x2, E59 ,E60 x2 ,E61)
14/ 18
27340

Pentax 67 II Specifications

General

Type	Medium format SLR
Film Format	120/220 roll film
Image Size	6x7 cm
Lens Mount	Pentax 67 bayonet mount
Metering	TTL center-weighted metering
Focusing Screen	Interchangeable
Mirror Lock-Up	Yes
Multiple Exposure	Yes
Shutter	Electronically controlled horizontal-travel cloth focal plane shutter
Shutter Speed Range	1/1000 to 4 s, Bulb
ISO Range	6 to 6400
Exposure Modes	Manual, Aperture Priority
Viewfinder	Interchangeable
Flash Sync Speed	1/30 s
Power Source	6V 4LR44 battery
