KENR6932 77
Disassembly and Assembly Section
End By:
a. Install the flywheel housing. Refer to Disassembly
and Assembly, “Flywheel Housing - Remove and
Install”.
Installation
Procedure Without
Isolating Frame for the Oil Pan
Table 27
Required Tool
s
Tool Part Number Part Description
Qty
A
-
T40 Torx Socket
1
-
Alignment Tool 1
B
-
Bolts (M8 by 20 mm)
4
Note: The crankshaft rear seal and the housing are
manufactured as one assembly.
Note: Do not lubricate the crankshaft rear seal or
the crankshaft flange. The crankshaft rear seal
must be installed dry.
NOTICE
Keep all parts clean from contaminants.
Contaminants may cause rapid wear and shortened
component life.

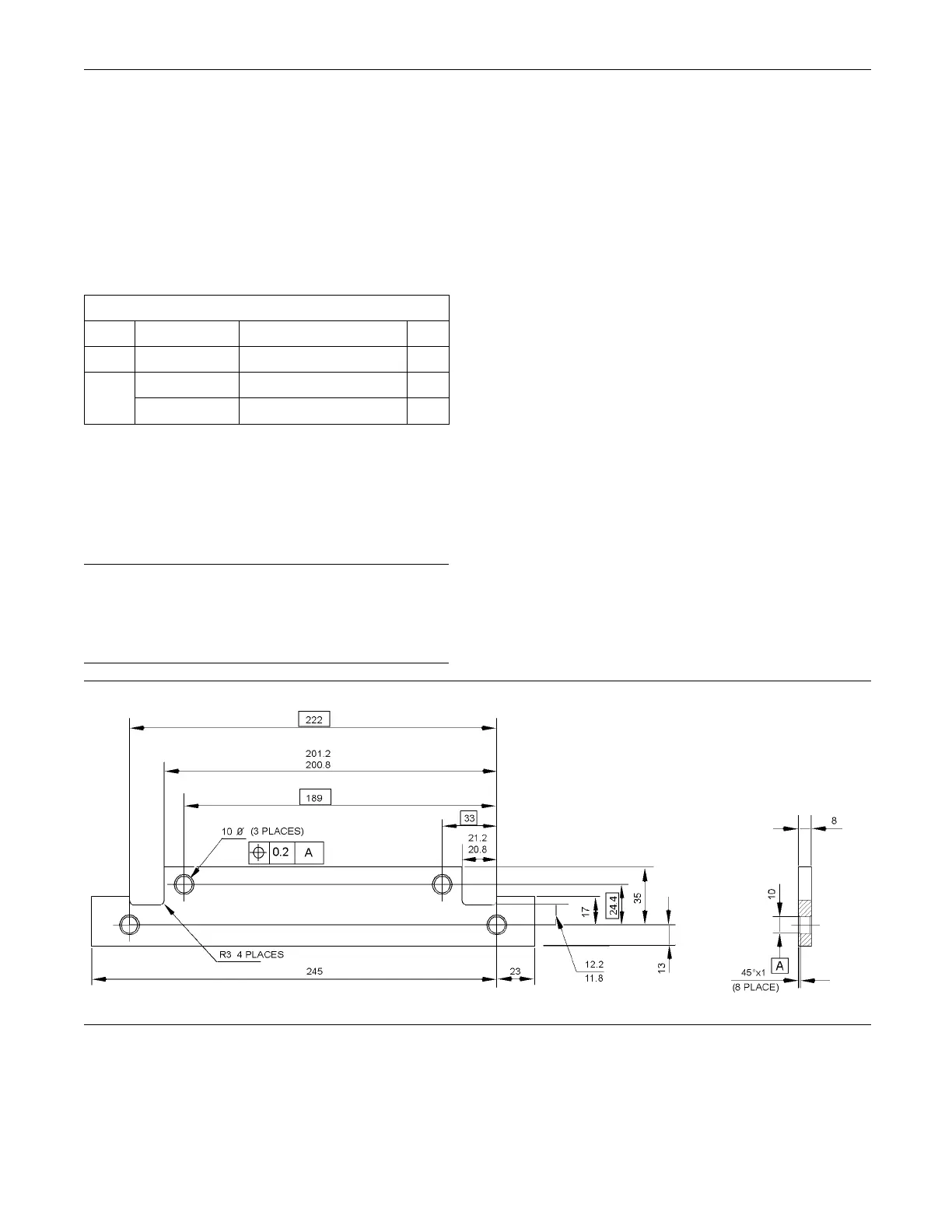

g01279001
Illustration 134
Alignmen
t tool
1. To install the crankshaft rear seal without the
isolatin
g frame for the oil pan in position, Tooling
(C)mustbeused.Thetoolshouldbefabricated
from 8 mm (5/16 inch) steel stock. The dimensions
for the t
oolaregiveninIllustration134.All
dimensions are shown in millimeters.
