14.0 IQ Back for Mamiya RZ67
The IQ backs are compatible with the Mamiya RZ PRO II and PRO IID with the
use of an adaptor plate.
The 645DF+ version of an IQ back can be used on a Mamiya RZ PRO IID with
a Mamiya RZ PRO IID adaptor plate. (Phase One Part # 70994)
The Hasselblad V version of an IQ back can be used on the older version
Mamiya RZ PRO II with a Mamiya RZ Pro II adaptor. (Phase One Part# 70964)
N.B. It is possible to use a Hasselblad V version of an IQ back on the new
Mamiya RZ67 PRO IID by getting the back mount plate modied with the
following Mamiya service part number: Y22995-RZ.

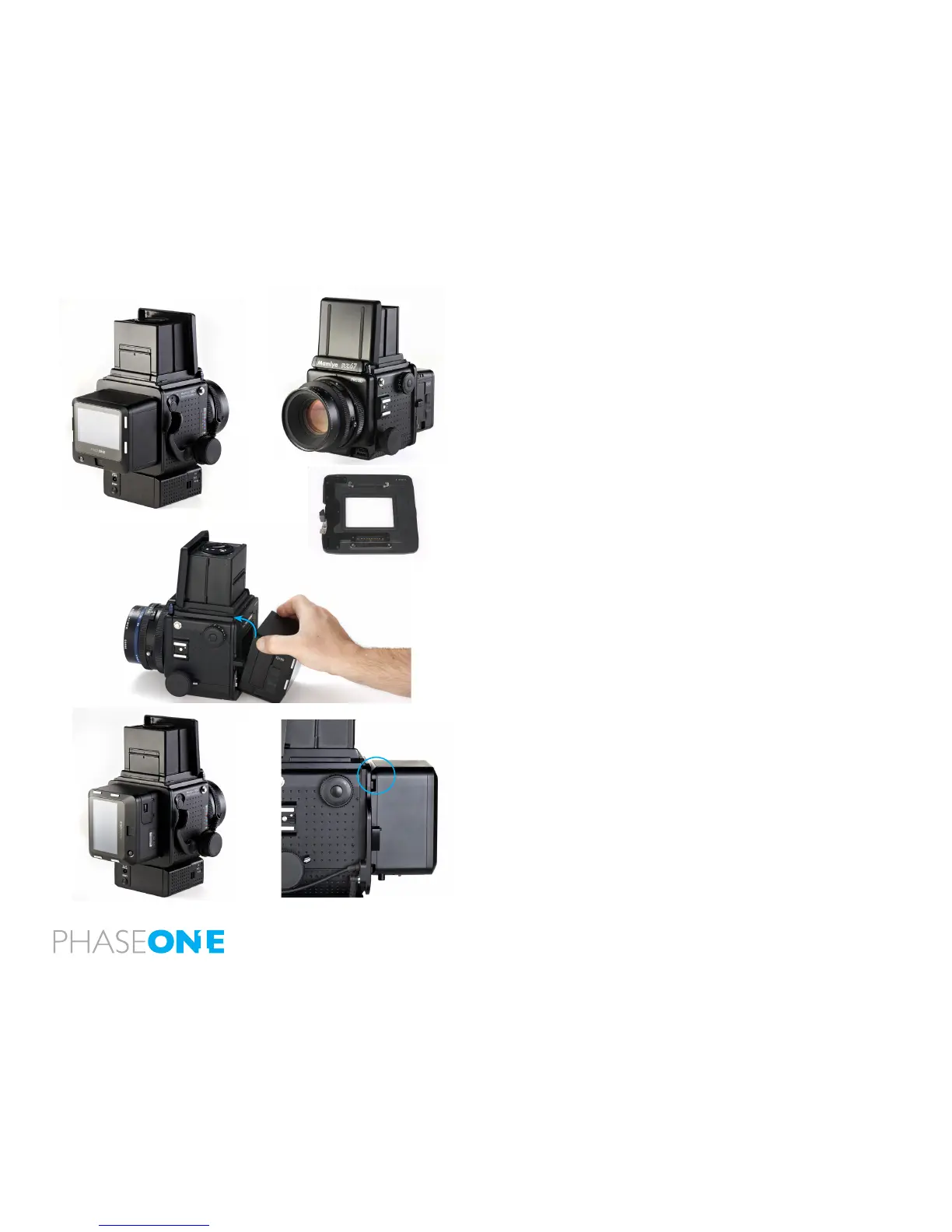

14.1 Mounting IQ Back on the Mamiya RZ67
1. Place the bottom of the IQ back in the locking mechanism.
2. Press the button at the top of the back with your thumb and lever the back
into place.
3. Release the button to lock into position.
N.B. It is important to ensure that the bottom part of the IQ back is attached
correctly before the upper locking mechanism is pressed together.
Mounting the IQ Back Vertically
The CCD in the IQ back is positioned in a landscape orientation. However, it
is possible to mount the IQ back in an upright orientation to capture images
in a portrait format without having to rotate the camera. The IQ back has an
internal sensor that detects when it has been rotated so images will appear
correctly oriented on the LCD and in the Capture One application.
Mount the IQ back in the portrait position by lining up the adapter mount to the
corresponding indentations on the left side of the back. Press the button (circled
left) and lever the back into place. Release the button to lock into position.
