5.1 Menu Buttons

The IQ2 back is equipped with four external buttons. The buttons will change

function to match the menu shown on the display.

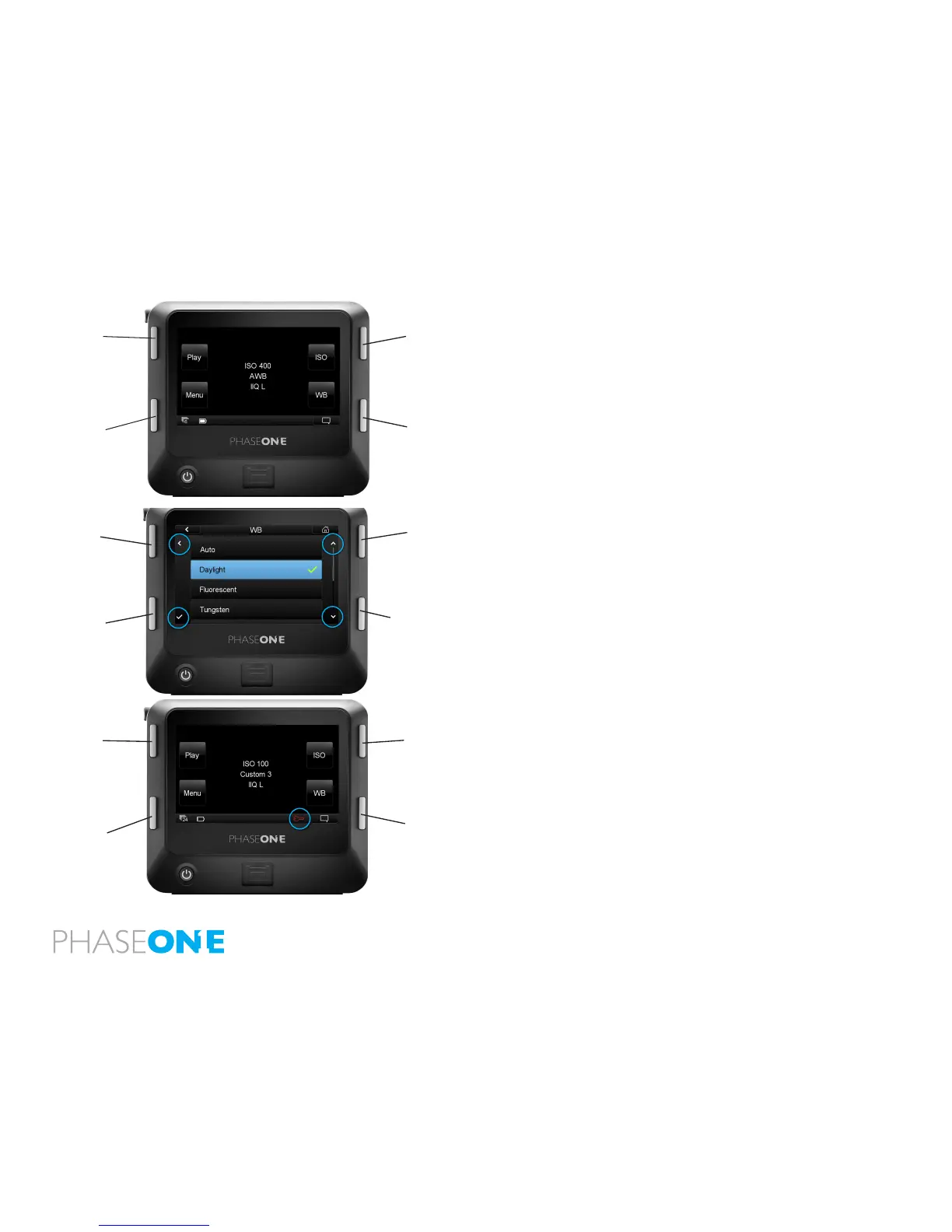

The four external buttons are assigned to the Play, Menu, ISO and WB options

when the IQ2 back is in its default Home Screen position. (See image left)

The function of the four buttons changes once one of the Menu, ISO and WB

options has been selected. In general, the two buttons to the left are used

to exit the screen and select a menu option. The two buttons to the right are

used to navigate up and down in the menu system.

Press Play on the Home Screen. Here the four buttons take on a dierent

role as the two left buttons are assigned to zoom in and out image les and

used to display a thumbnail collection. The two right buttons are assigned to

scroll through thumbnails and image les.

Tip: The function of an external button is usually signalled by the icon

positioned nearest to it on the screen. (See blue circles on the left picture).

5.2 Shortcuts

Home shortcut: Press and hold the upper left (Exit) button to immediately

return to the Home Screen regardless of where you are in the menu system.

Button Lock shortcut: Hold down the upper left (Play) button whilst the

Home Screen is displayed and double press the lower right (external) but-

ton. The key icon will appear at the bottom of the screen and turn red to

conrm that the four (external) menu buttons and the touch screen func-

tionality has been locked. Repeat the procedure to unlock the buttons and

screen. (Hold down the Play button and double press the WB button).

Down

Enter

Exit

ISO

Play

ISO

PhaseOne IQ Series User Manual
