14.2 Viewnder Masking
The image area of Mamiya RZ67 at 56x69.5 mm is larger than the size of the
three IQ model’s sensors so it is necessary to insert a viewnder mask.
There are two dierent masks available for the Mamiya RZ67 according to
which IQ is being used. (The size IQ280 and IQ260 models CCD is 53.9x40.4
mm while the IQ140’s CCD measures 43.9x32.9mm). Please check page 155
for the relevant viewnder mask.

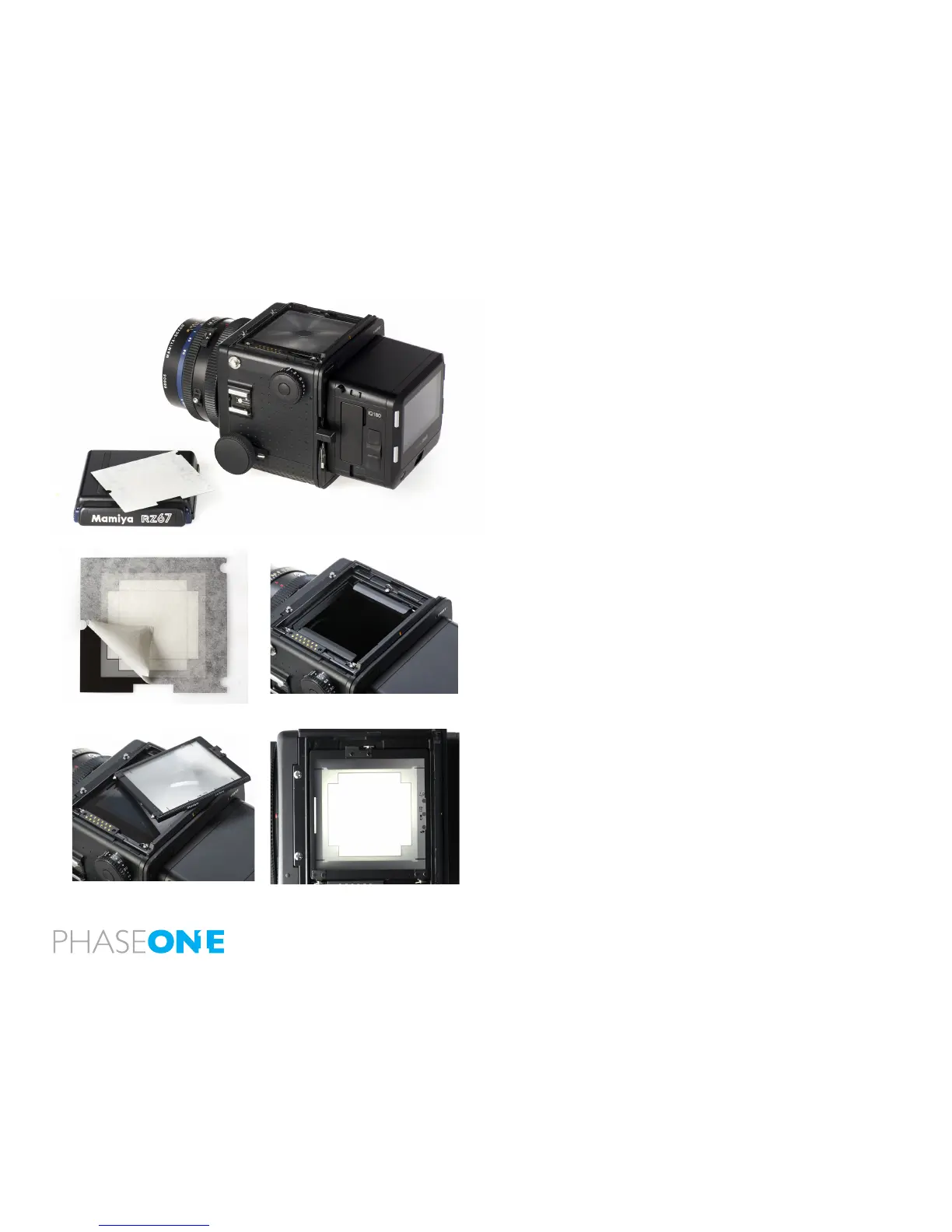

Insert a Viewnder Mask
1. Remove the protection tape from the mask.
2. Dismount the prism/waist-level nder and remove the focus screen.
3. Place the viewnder mask in the bracket that holds the focusing screen.
4. Re-mount the viewnder focus screen.
5. Re-attach the prism/waist-level nder.
N.B. Please check the relevant Mamiya RZ67 manual regarding how to
dismount the viewnder and remove the focus screen.
2.
1.
3.
4.
