16.2 Viewnder Masking
The image area of the Hasselblad H1/H2 cameras is 56x41.5 mm. A viewnder
mask is only needed for the smaller size of the IQ140 CCD that measures
44x33mm. Viewnder masking is not necessary for IQ280 and IQ260 models
as their light sensitive CCD measures 53.9x40.4 mm.
Please check page 155 for the relevant viewnder mask.
Insert a Viewnder Mask

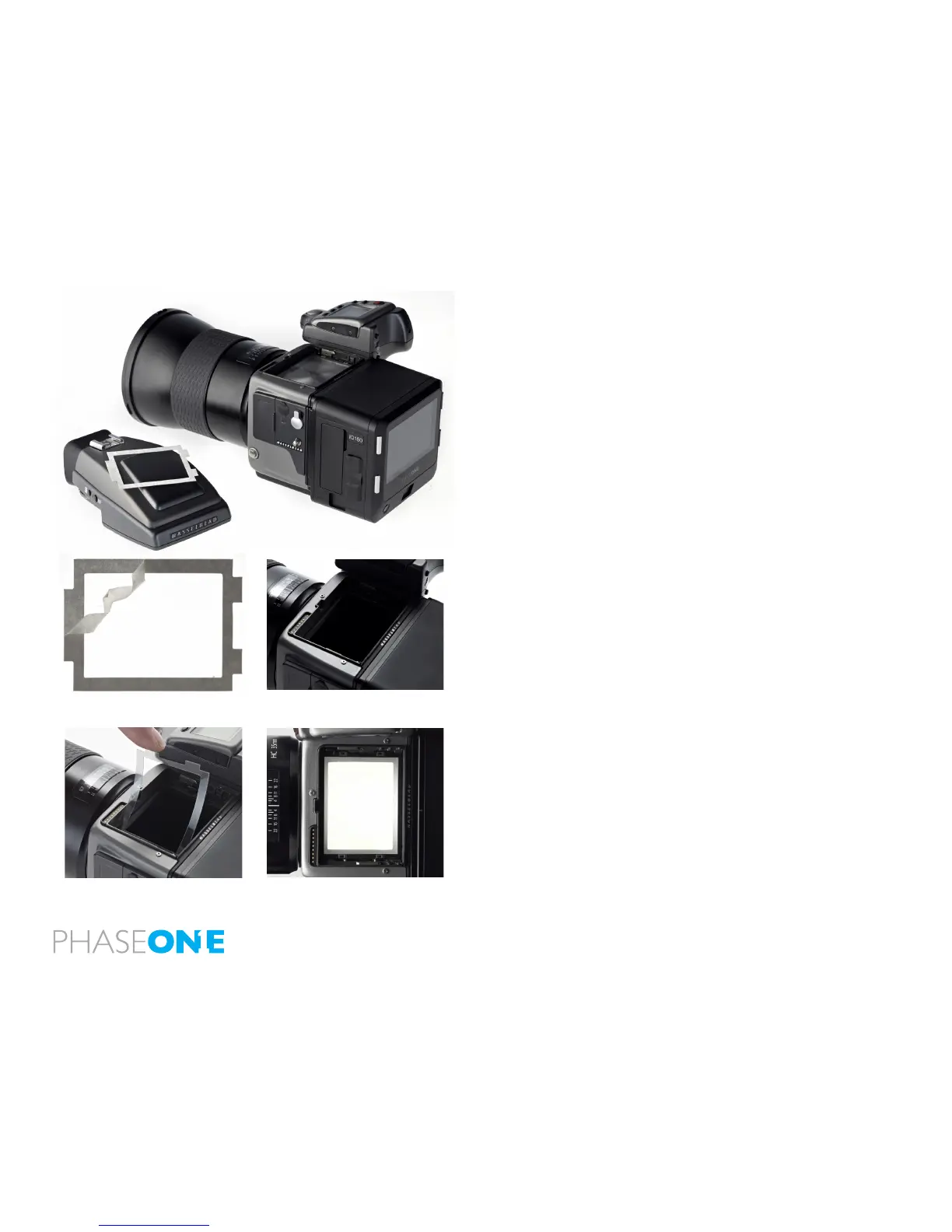

1. Remove the protection tape from the mask.
2. Dismount the prism/waist-level nder and remove the focus screen.
3. Place the viewnder mask in the bracket that holds the focusing screen.
4. Re-mount the viewnder focus screen.
5. Re-attach the prism/waist-level nder.
N.B. Please check the relevant Hasselblad H-series manual regarding how to
dismount the viewnder and remove the focus screen.
2.
3. 4.
1.
