7
HD11 XE Getting Started
4535 612 62651
151
Transducers

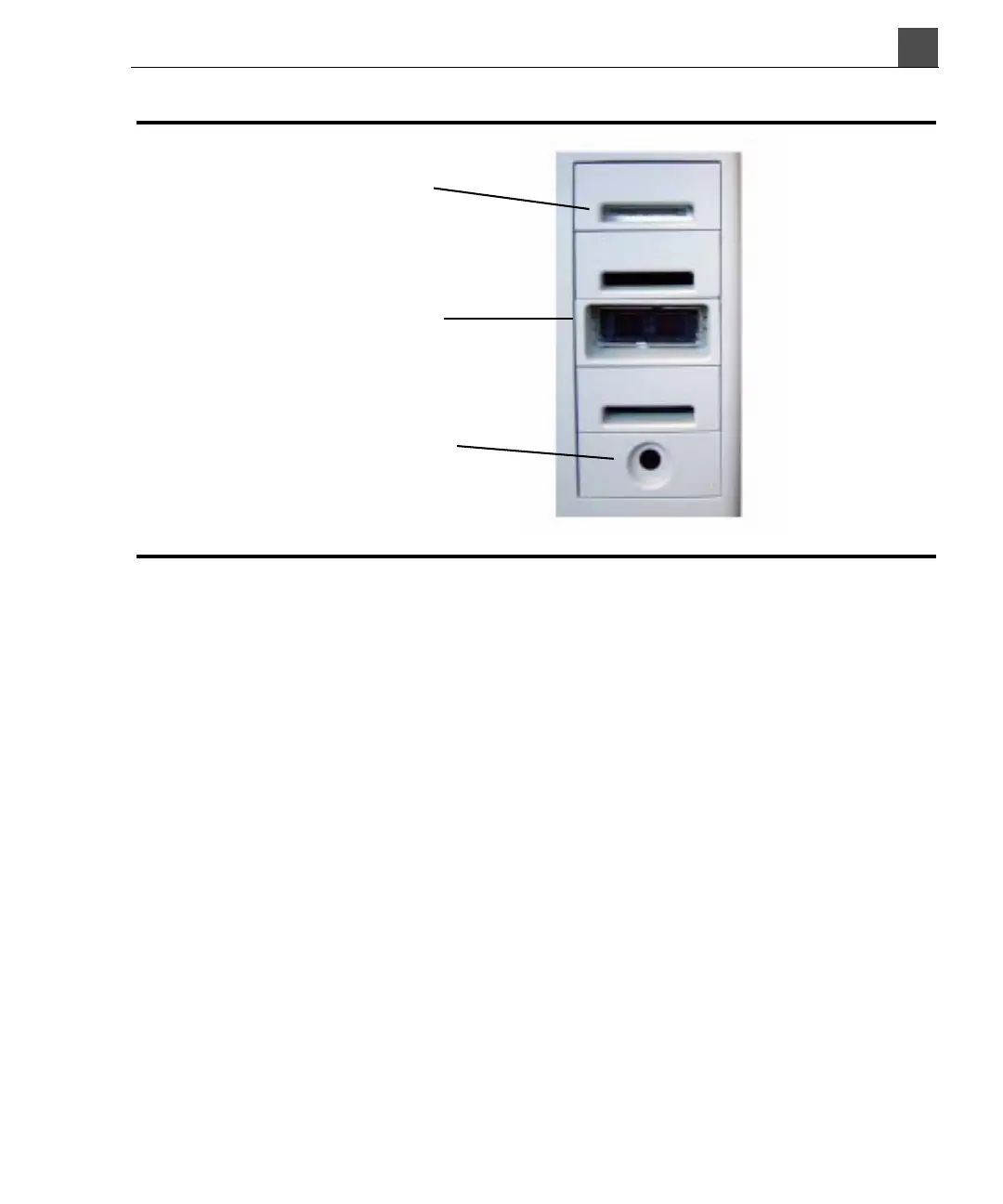

Figure 7-1 Transducer Connectors
Connecting Transducers with Cartridge-Style Connectors
➤ To connect a transducer with a cartridge-style connector
Align the connector as shown in Figure 7-3 and plug it in.
➤ To remove a cartridge-style transducer
Press the Release button on the connector and pull the connector toward you.
Connecting Nonimaging Transducers
➤ To connect a nonimaging transducer
Align the connector, and gently plug it in.
➤ To r e m o v e a n o n i m a g i n g t r a n s d u c e r
Grasp the transducer and pull it toward you. Do not pull the connector by the
cable or the strain relief connector.
Cartridge-style
Explora-style
Nonimaging-style
