Philips HD11 XE - Figure 9-3 C9-5 ec Endocavity Transducer

Endocavity Transducers
HD11 XE Getting Started
4535 612 62651
9
198
C9-5ec Endocavity Transducer
This section lists important features of the C9-5ec endocavity transducer shown
in Figure 9-3.

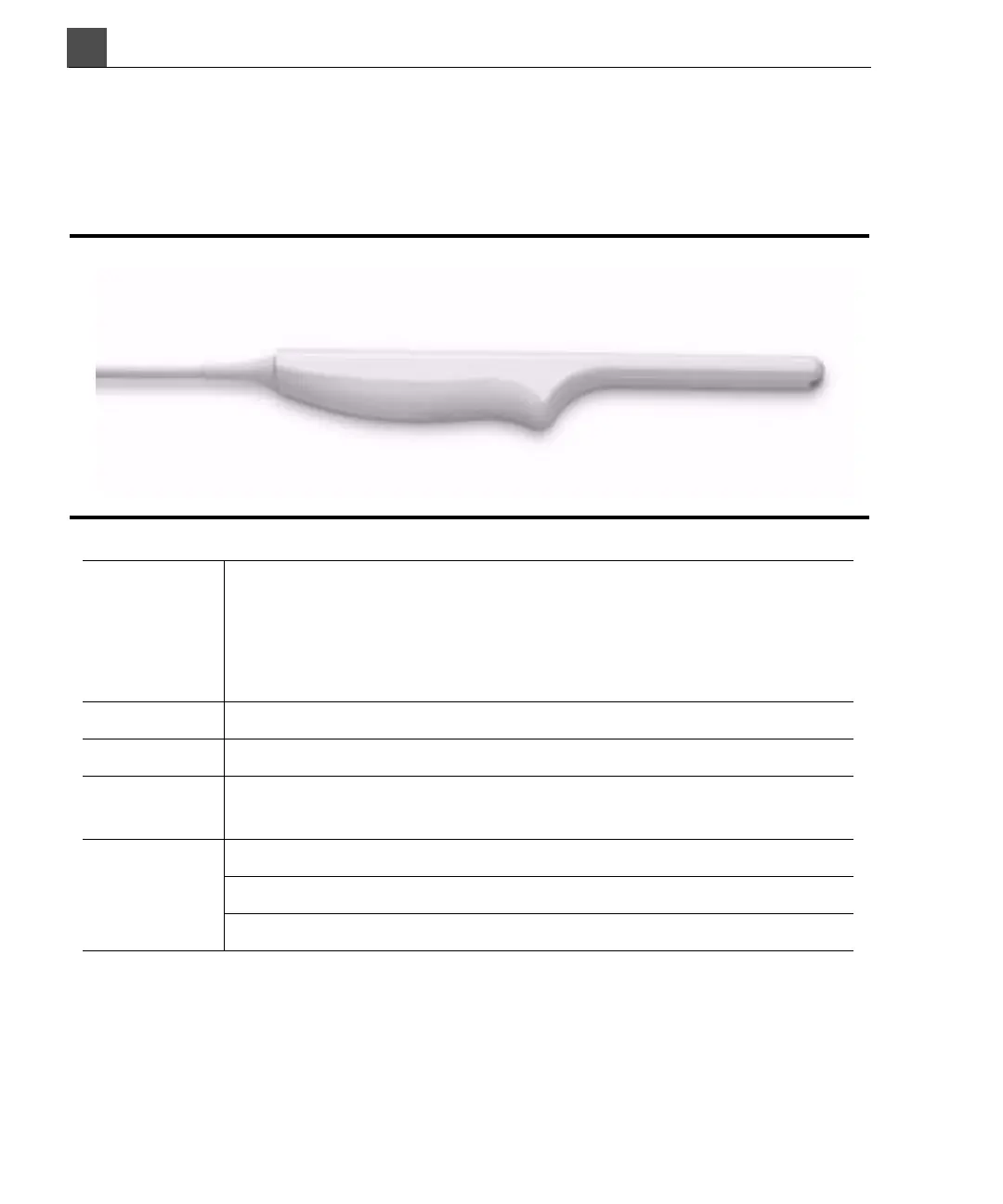

Figure 9-3 C9-5ec Endocavity Transducer
Features A broadband curved array transducer with a150-degree field of
view that supports: iSCAN Intelligent Optimization; steerable
pulsed Doppler, color Doppler and Color Power Angio; Freehand
3D, Panoramic, SonoCT, and XRES imaging for endocavity
applications including endovaginal and endorectal.
Connection See “Connecting Transducers” on page 150.
Frequency Operating range: 5 to 9 MHz
Max Sector
150 degrees
Specifications Length (transducer and cable): approximately 2.26 m (7.4 ft)
Length of handle and tip: 28 cm (11 in)
Radius of curvature: 0.8 cm (0.3 in)
