TEE Transducers
Manipulating the OmniPlane III Tip
This section contains details of OmniPlane III deflection controls and brakes that
are shown in Figure 10-4. Be sure to read “Deflection Control Basics” on
page 212 for background information pertaining to TEE transducers.

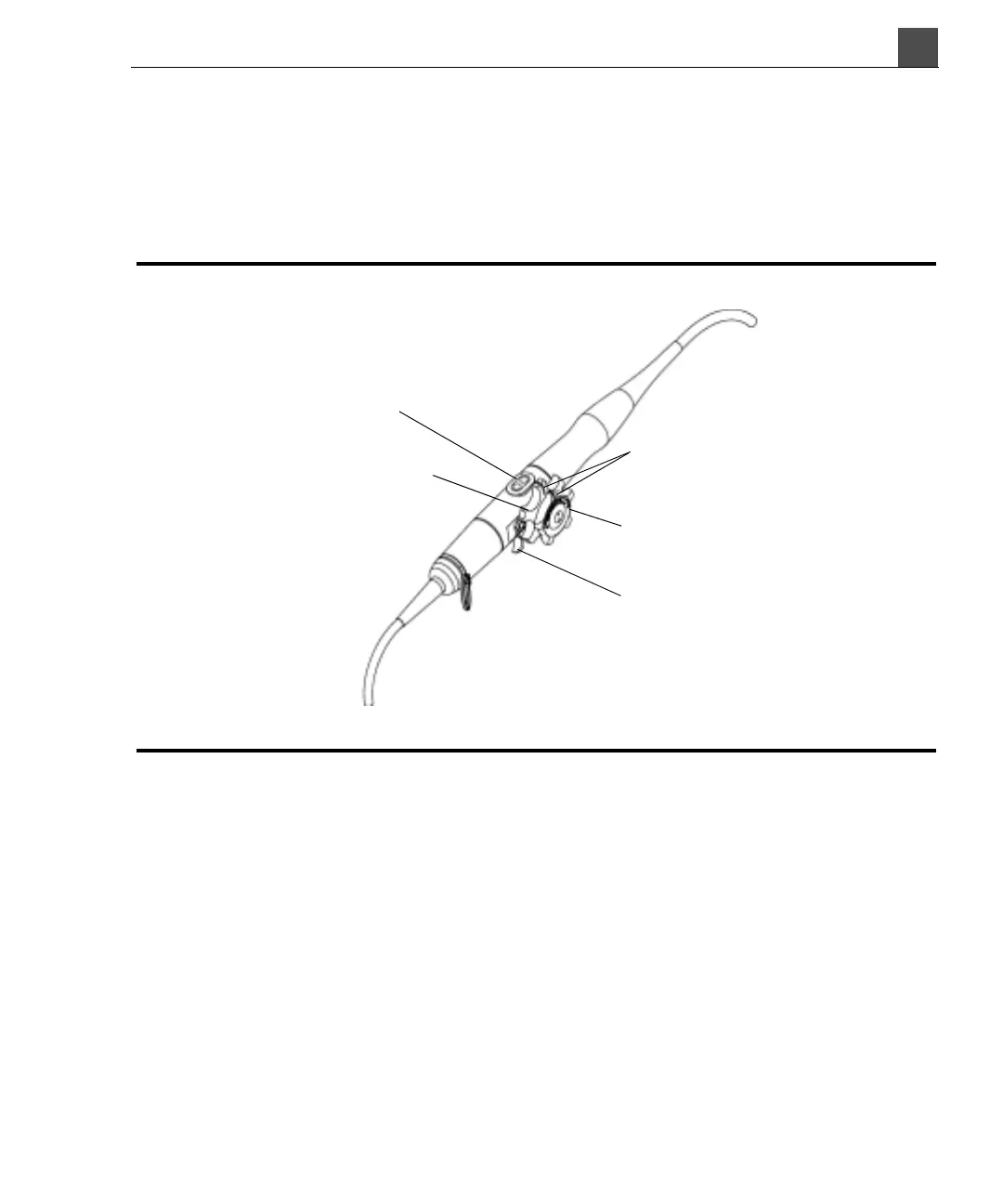

Figure 10-4 OmniPlane III Deflection Controls and Brakes
The larger inner knob controls anterior/posterior movement, while the smaller
outer knob controls medial/lateral movement.
➤ To place the tip of the TEE transducer into the neutral position
Align the ribs on each knob with the center of the array rotation buttons.
Array rotation buttons
Neutral position indicators
(no deflection)
Detent brake actuator
Medial/lateral control
Anterior/posterior control
