If the distal tip temperature reaches 42.5°C (108.5°F) during imaging, an
Auto-Cool in progress message is displayed, as shown in Figure 10-11.

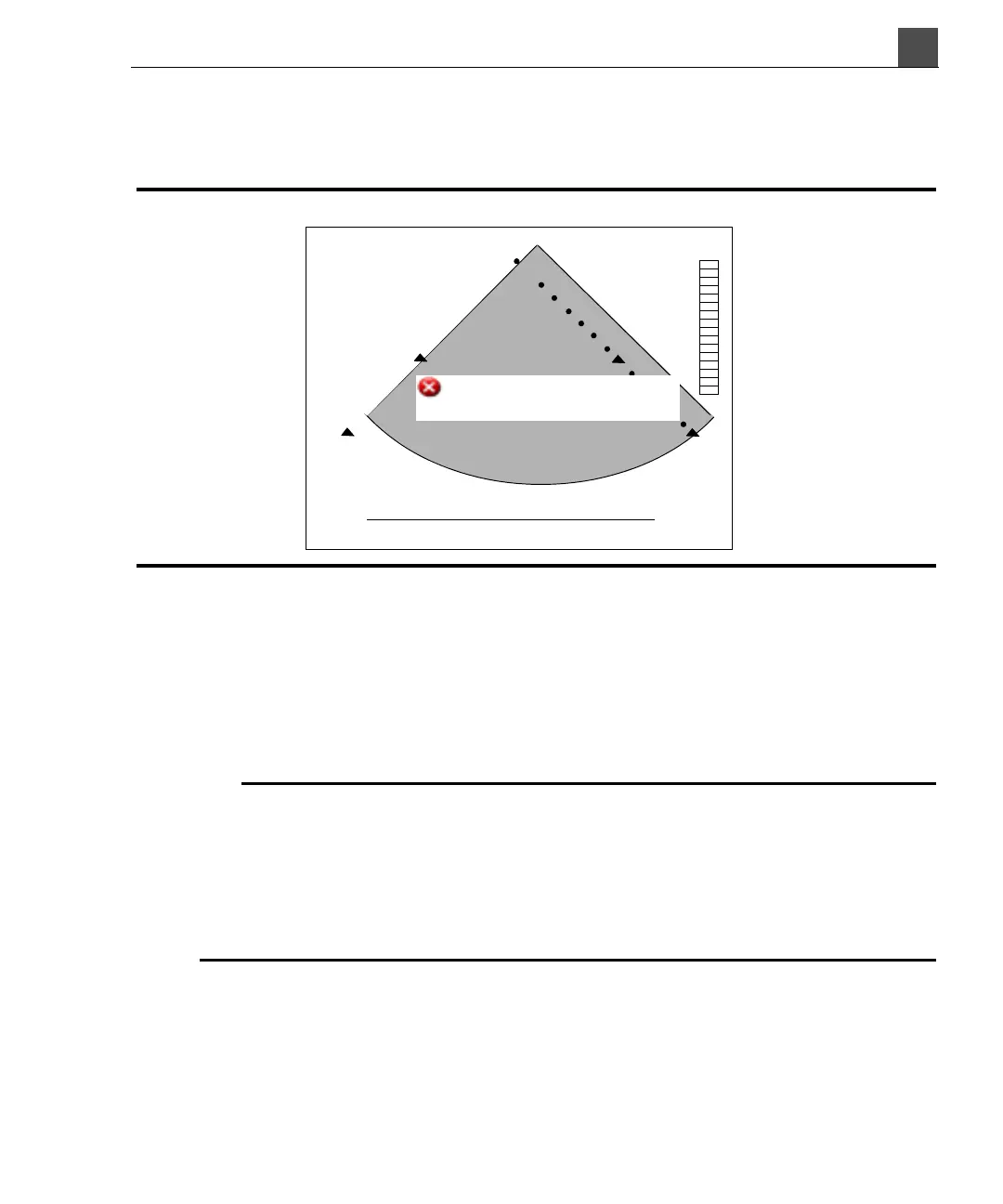

Figure 10-11 TEE Auto-Cool in Progress Display
Resuming Imaging After an Auto-Cool Interruption
When the distal tip temperature drops below 42.0°C (107.6°F), the system
resumes imaging. If the Auto-Cool message persists longer than 1 minute or an
error message is displayed, contact your Philips Ultrasound service representa-
tive.
WARNING
The Reconnect the transducer error message is often caused by a poorly
seated transducer connector, but could be caused by a failure in the Auto-Cool
Safety logic. In the case of a logic failure, distal tip temperatures could reach
46.5°C (115.7°F) in hyperthermic patients (40°C to 41°C (104°F to 105.8°F))
before the error causes scanning to stop. At this temperature, esophageal burns
may occur.
1,
2
1. Ding-Jiu et al. “Thermodamage, Thermosensitivity and Themotolerance of Normal Swine
Esophagus.” International Journal of Hyperthermia, Vol. 3, No. 2: 143-151.
2. Moritz, A. R. and Henriques, F. C. “Studies of Thermal Injury, II. The Relative Importance of
Time and Surface Temperature in the Causation of Cutaneous Burns.” American Journal of
Pathology, Vol. 23: 695-720, 1947.
TEE auto cool in progress. Wait for
transducer to cool or adjust Patient Temp to
set the current patient temperature.
PAT T:37.0°C
TEE T:42.5°C
