TEE Transducers
HD11 XE Getting Started
4535 612 62651
10
222
Lock Operation
To protect the patient and the transducer, unlock the deflection control when
inserting or withdrawing the transducer. Figure 10-7 shows the lock operation.

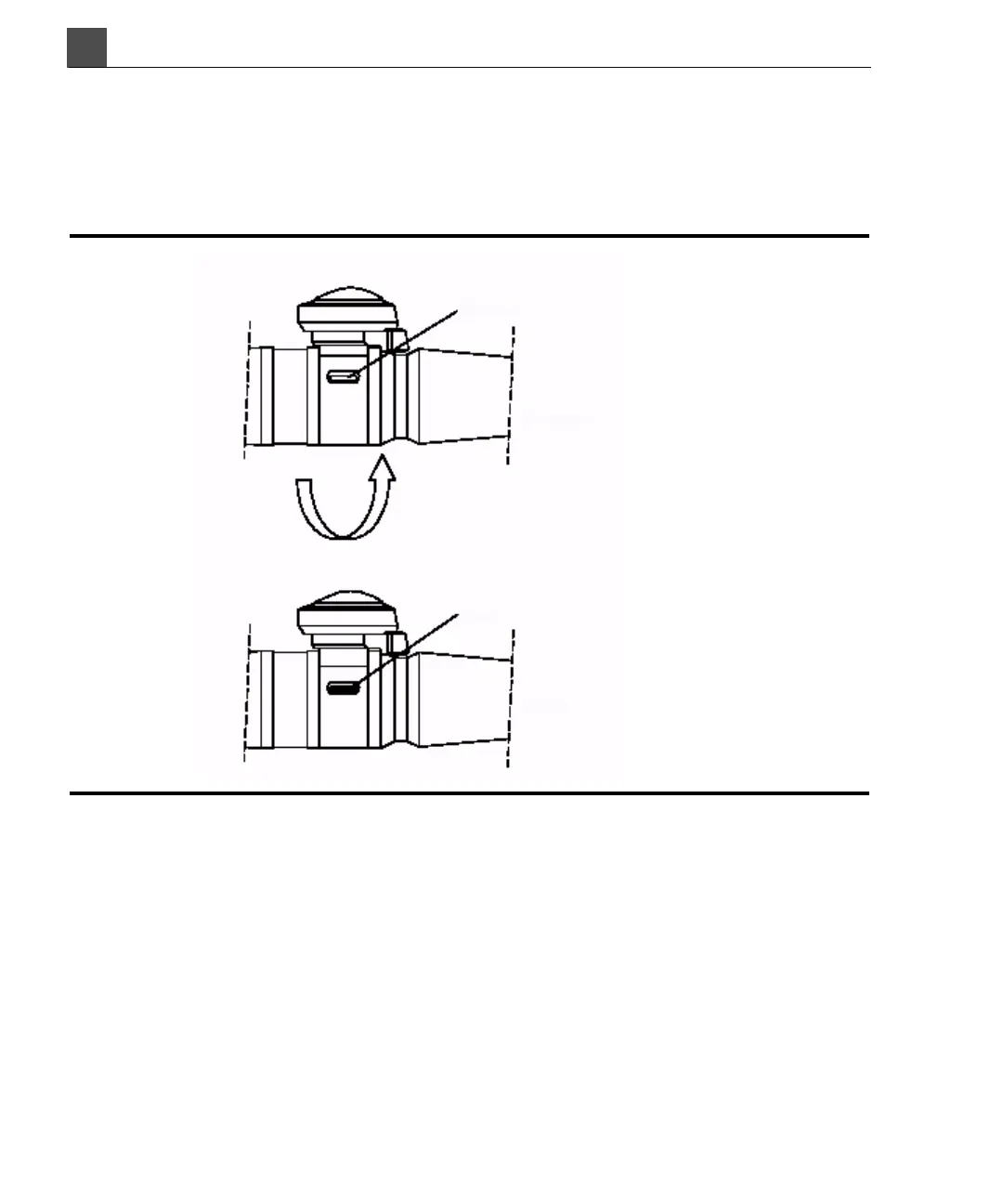

Figure 10-7 S7-3t Lock Operation
Tr a n s d u c e r S c a n P l a n e R o t a t i o n C o n t r o l
The transducer scan plane can be rotated from 0 degrees (transversal plane)
through 90 degrees (longitudinal plane) to 180 degrees (transversal plane, left/
right inverted). Figure 10-8 shows the scan plan rotation control. You can also
select all planes in between to scan a conical imaging volume.
White
Red
Unlock
Lock
