Description and Use: OmniPlane III Transducer

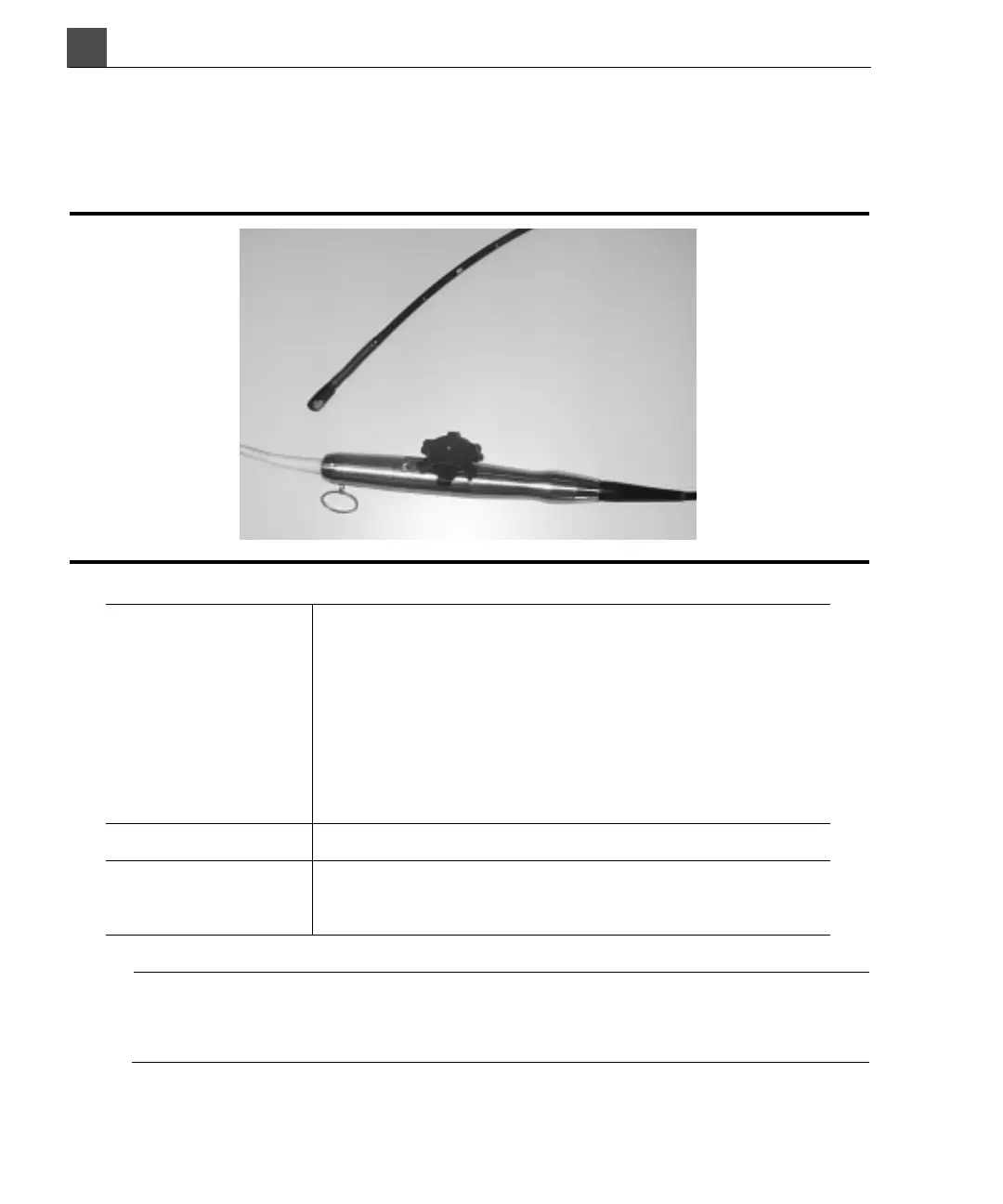

Figure 10-3 shows the OmniPlane III transducer.
Figure 10-3 OmniPlane III
NOTE
Philips recommends that you only use the OmniPlane III transducer on patients
weighing at least 25 kg (55 lb), to ensure the esophagus can comfortably accom-
modate the transducer.
Features Ultraband transducer technology sensor for Contrast
Harmonic Imaging. Enables high-resolution imaging and
360-degree views of the heart, unobstructed by lungs
and ribs. Capable of harmonic imaging, contrast
research, tissue Doppler, color flow imaging, steerable
CW and PW Doppler, frequency agility, and
electrocautery suppression. Tip surface constantly
monitored for patient safety. Convenient hanging ring.
Connection See “Connecting Transducers” on page 150.
Specifications Tip: 1.5 cm (0.6 in) diameter, 3.5 cm (1.4 in) long
Shaft: 1.0 cm (0.4 in) diameter, 0.9 m (2.95 ft) long
