Endocavity Transducers
3D9-3v Endocavity Transducer
This section lists important features of the 3D9-3v endocavity transducer shown
in Figure 9-2.

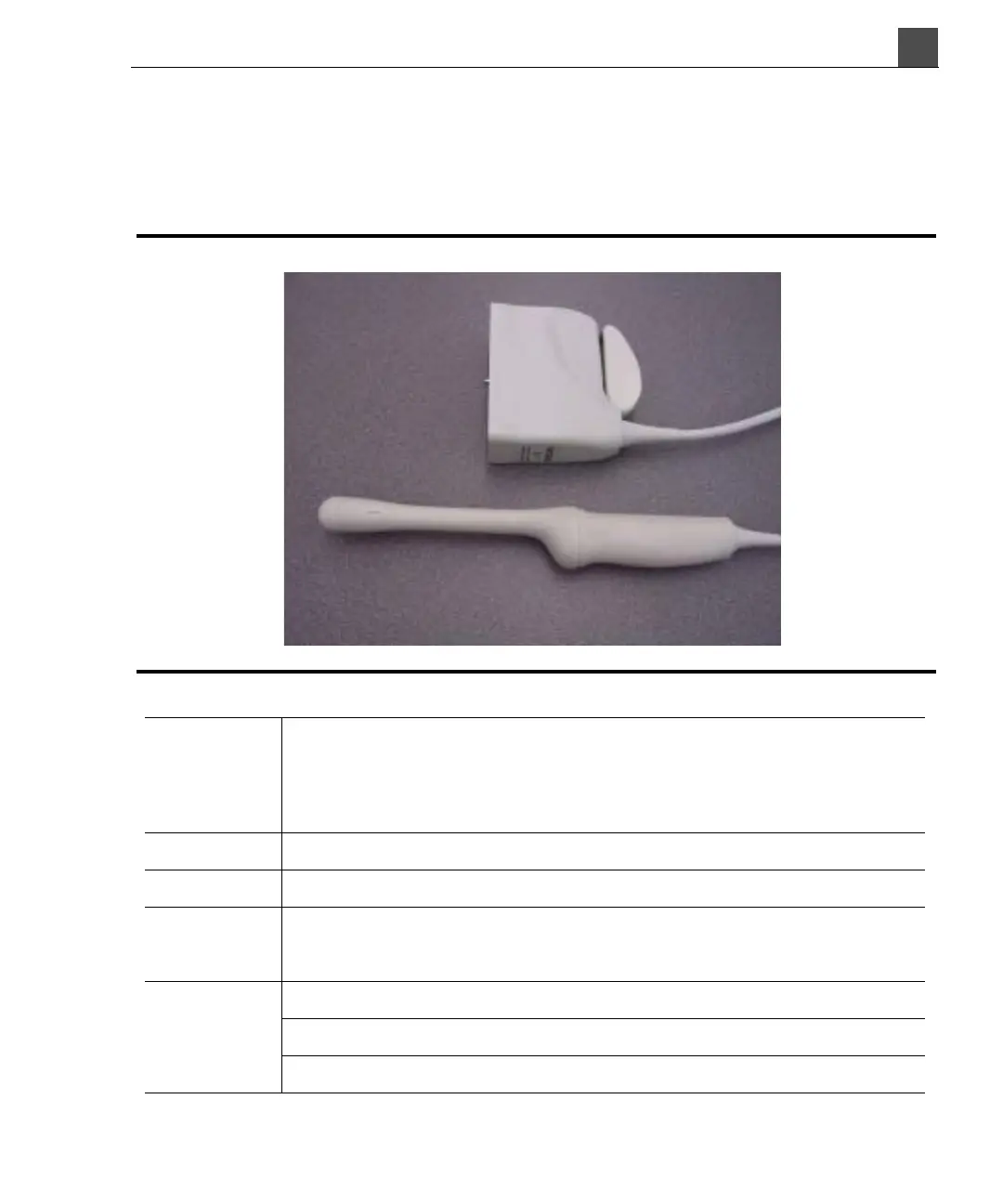

Figure 9-2 3D9-3v Endocavity Transducer
Features A curved array transducer with a 130-degree field of view that
supports: high-resolution 2D imaging; high-resolution quantitative,
single-sweep 3D volume acquisition; and 4D imaging up to 22 volumes
per second for endovaginal obstetrical and gynecological applications.
Connection See “Connecting Transducers” on page 150.
Frequency Operating range: 3 to 9 MHz
Sector Angle 2D image plane: 130 degrees
3D sweep direction: 85 degrees
Specifications Length (transducer and cable): approximately 2.38 m (7.8 ft)
Length of handle and tip: 30 cm (12 in)
Radius of curvature: 11.5 mm (0.45 in)
