TEE Transducers
Basic Transducer Parts
This section labels and describes individual parts that are common to TEE trans-
ducers. Many of the parts and their operation are similar among Philips TEE trans-
ducers. The following differences are not shown in Figure 10-1:
• Brakes for OmniPlane transducers
• Array rotation buttons for the OmniPlane transducers

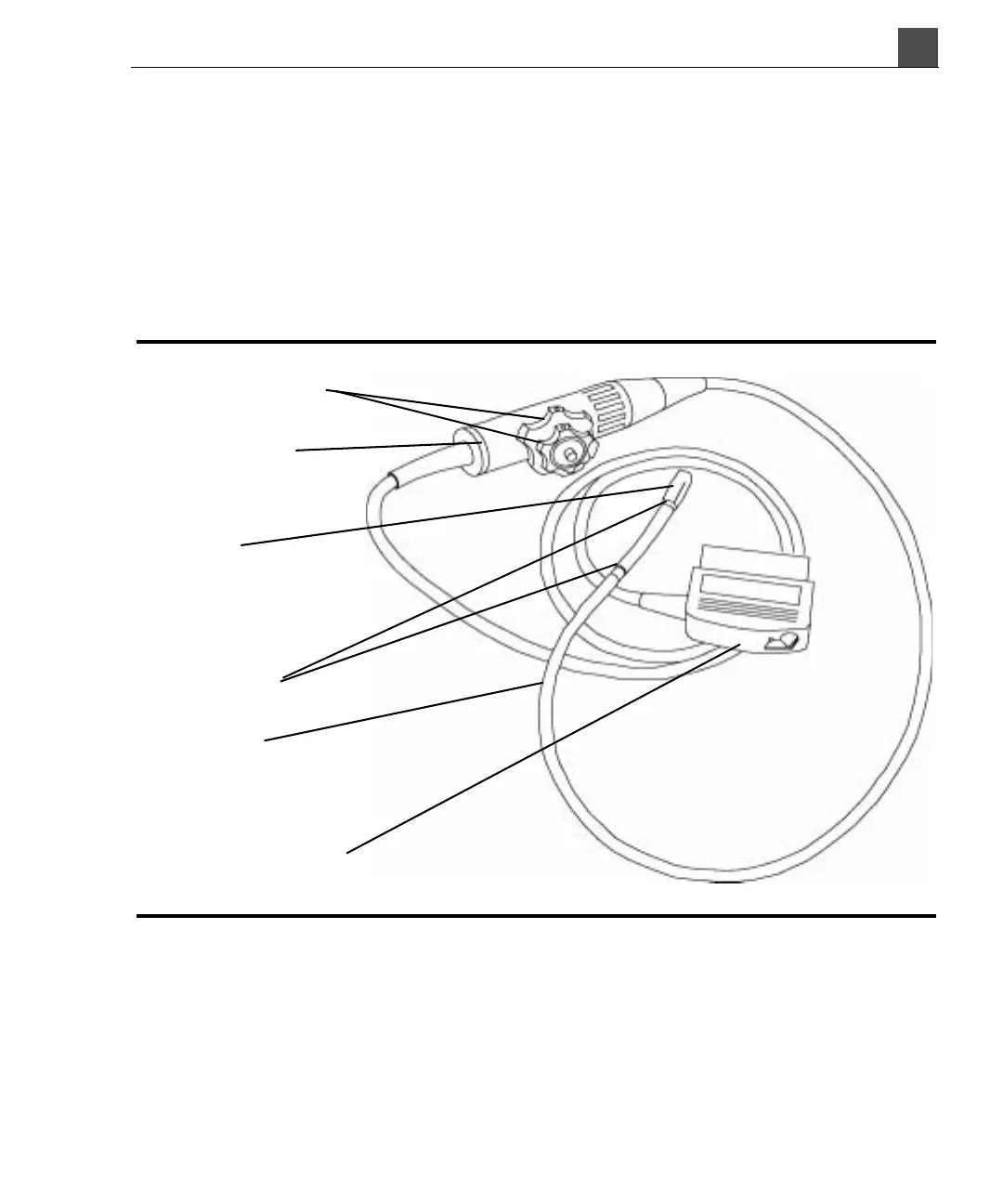

Figure 10-1 Basic TEE Transducer Parts
Deflection controls
Control housing
Flexible shaft
Transducer connector
Distal tip
Deflection area
