10
HD11 XE Getting Started
4535 612 62651
217
TEE Transducers
Calibration
Before connecting the OmniPlane III TEE transducer, be sure the tip and shaft are
straight. When you lock the connector into the transducer slot, the OmniPlane III
transducer recalibrates itself to the 0-degree (horizontal plane) position. As with
any array movement, the motor makes a humming sound while recalibrating.
NOTE
Do not turn the control knobs while calibration is in progress.

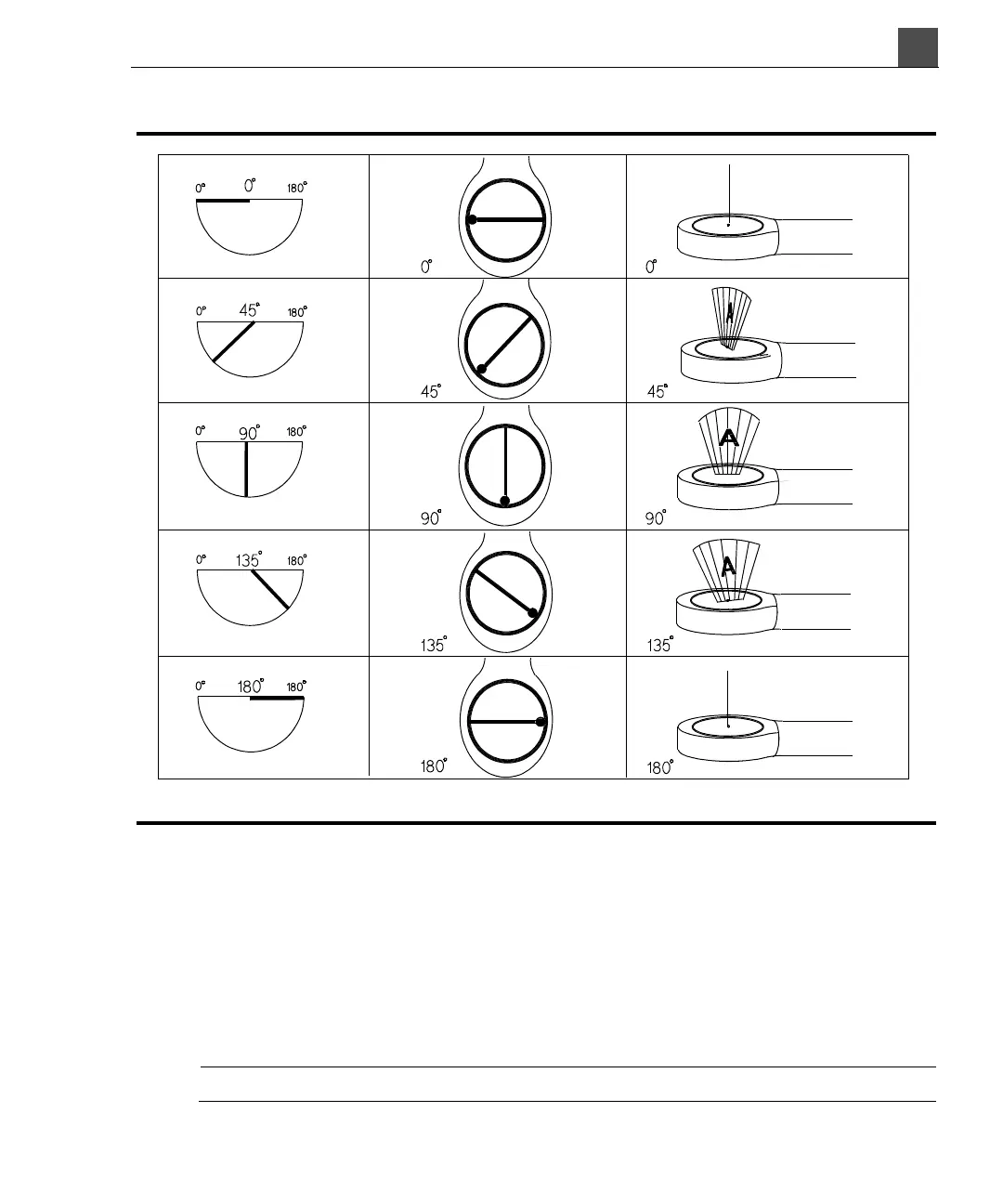

Figure 10-5 OmniPlane Array
210e005a
