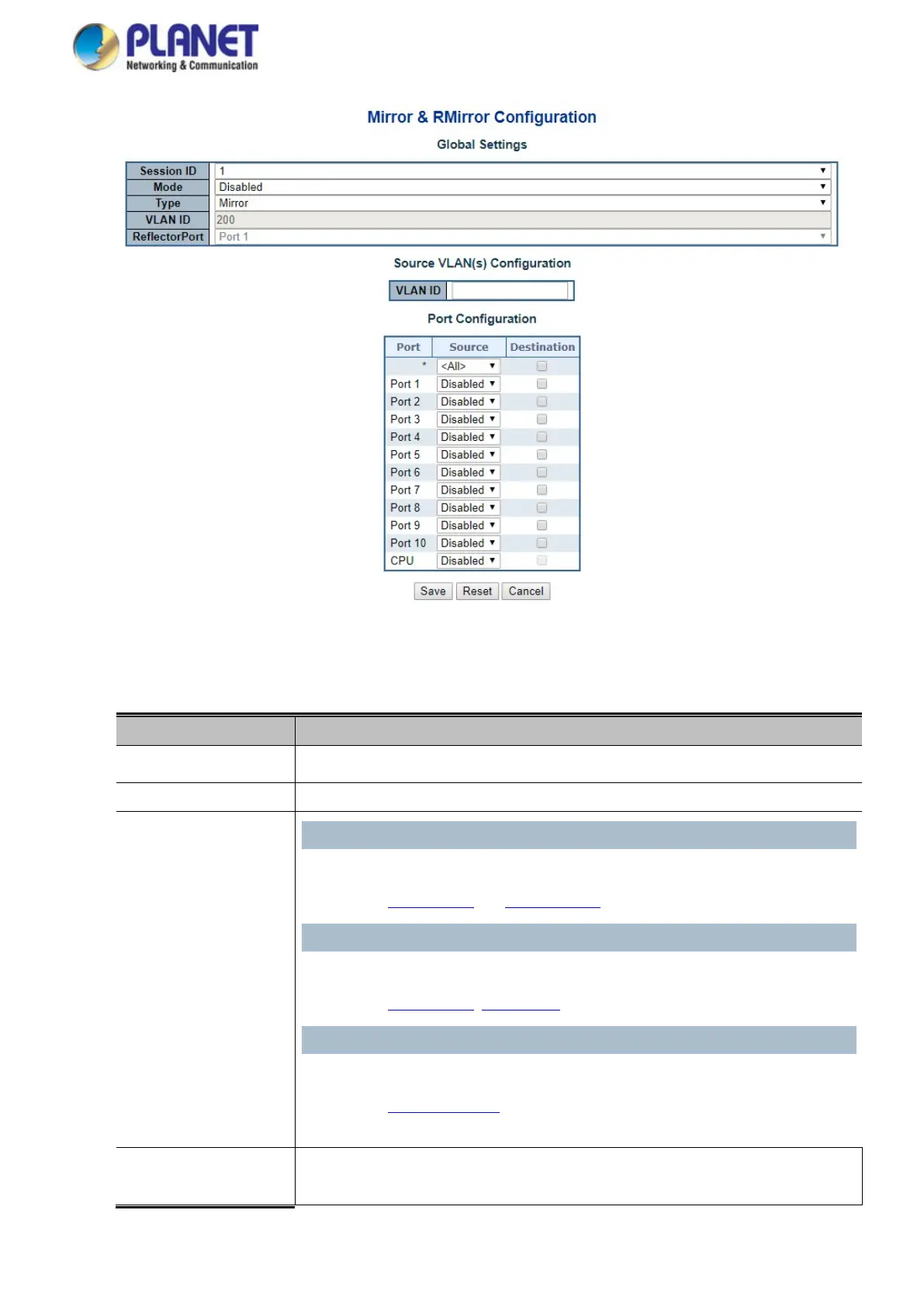

Figure 4-3-1-7: Mirror Configuration Page Screenshot
The page includes the following fields:
Object Description
• Session
Select session id to configure.
• Mode
To Enabled/Disabled the mirror or Remote Mirroring function
• Type
Mirror
The switch is running on mirror mode.
The source port(s) and destination port are located on this switch.
Source
The switch is a source node for monitor flow.
The source port(s), reflector port are located on this switch.
RMirror destination
The switch is an end node for monitor flow.
The destination port(s) is located on this switch.
• VLAN ID
The VLAN ID points out where the monitor packet will copy to. The default VLAN ID is
200.
