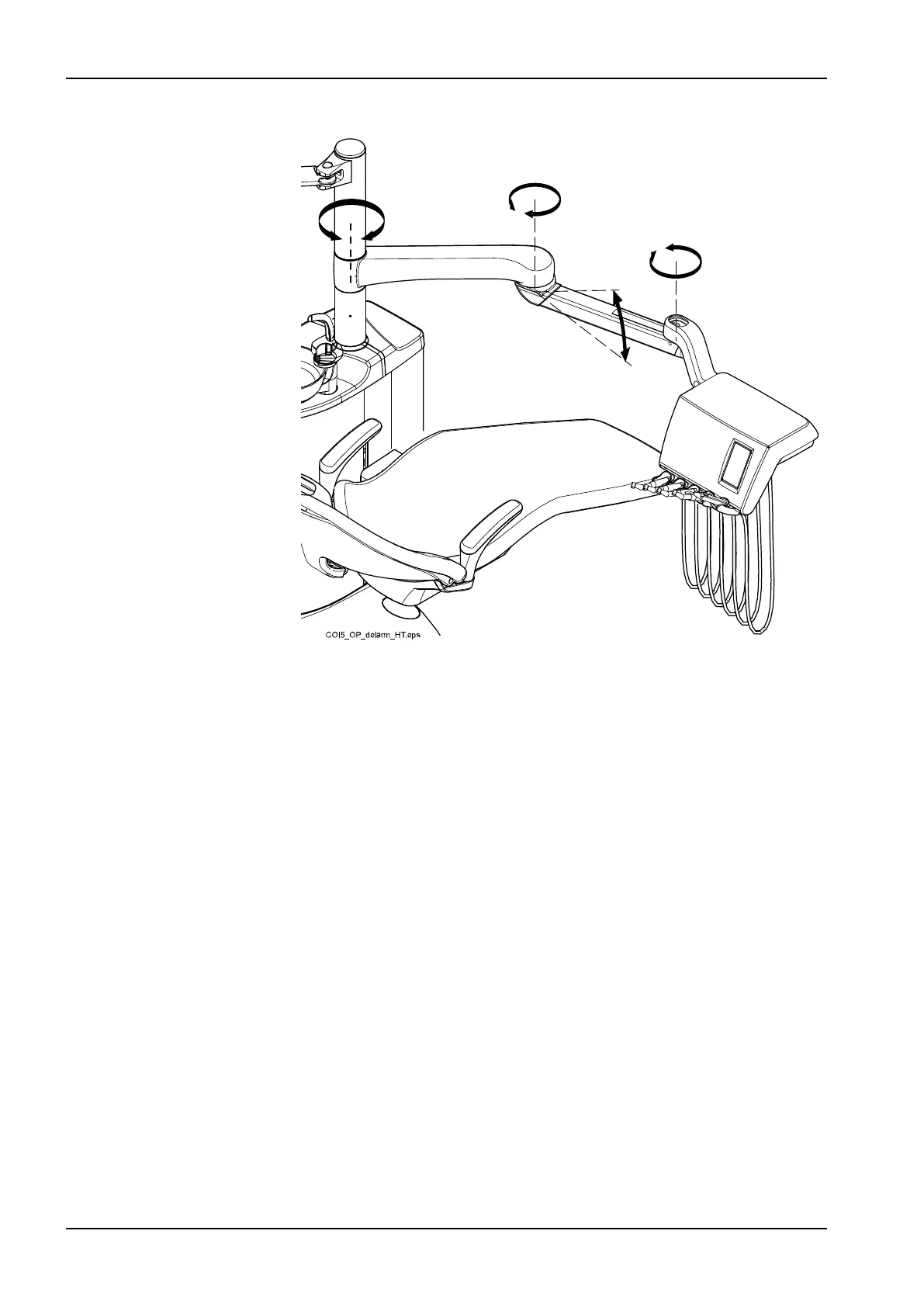

The following presents the OP delivery arm with hanging-tube instruments.
10.1.2 Side delivery arm
The side delivery arm is attached to the cuspidor base and swings under the
chair.
CAUTION
Do not stand on the side delivery arm.
The instruments can be positioned using the handle on the instrument
console. The arm does not need to be locked into position.
10 Instrument system
38 Planmeca Compact i User's manual
