12.5 Manual headrest

12.5.1 Adjusting height of headrest

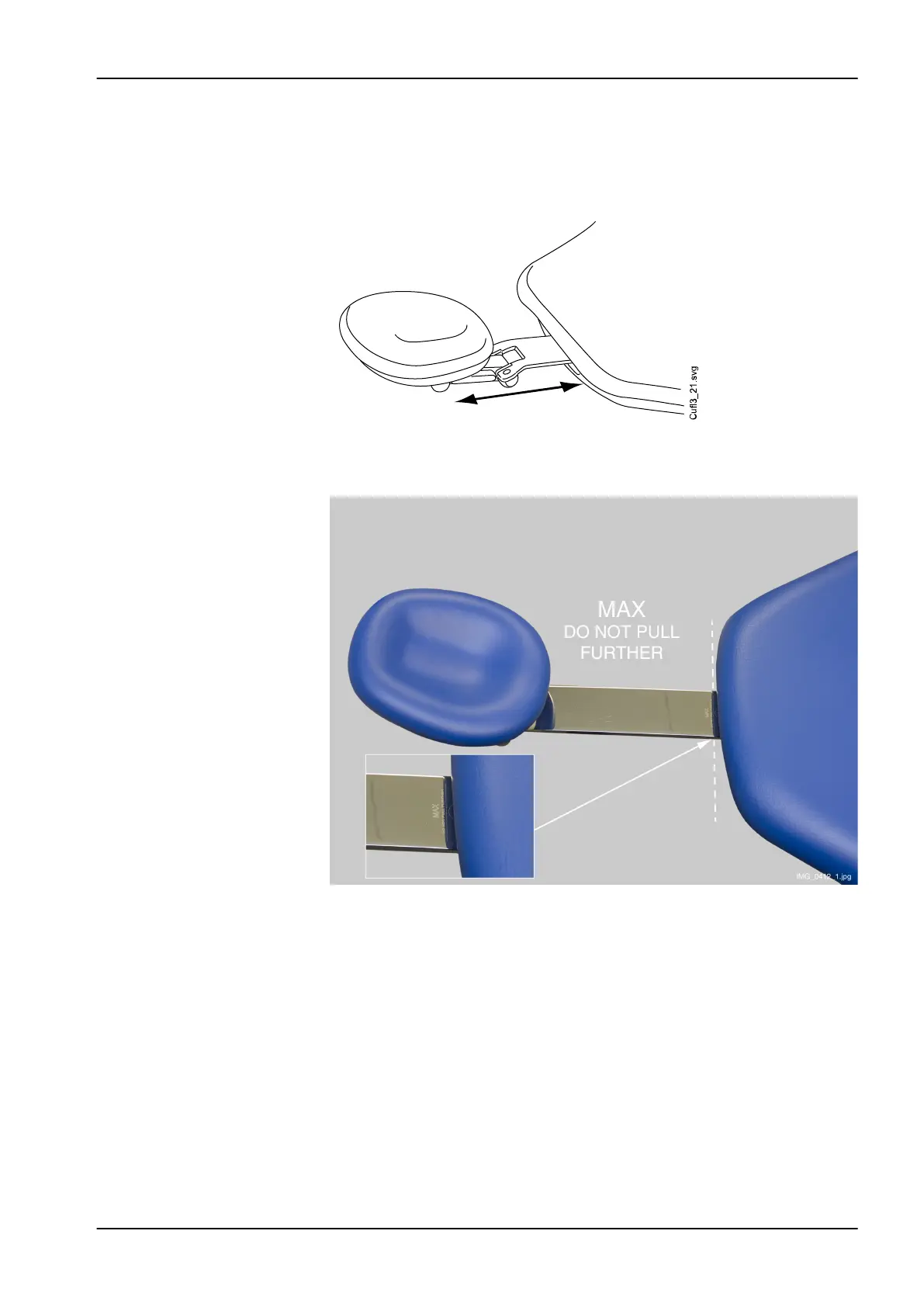

The height of the headrest can be adjusted by sliding it manually.

NOTE

The headrest can only be pulled out as far as to the MAX mark.

12 Patient chair

User's manual Planmeca Compact i 69
