FUEL SYSTEM/CARBURETION
4.10

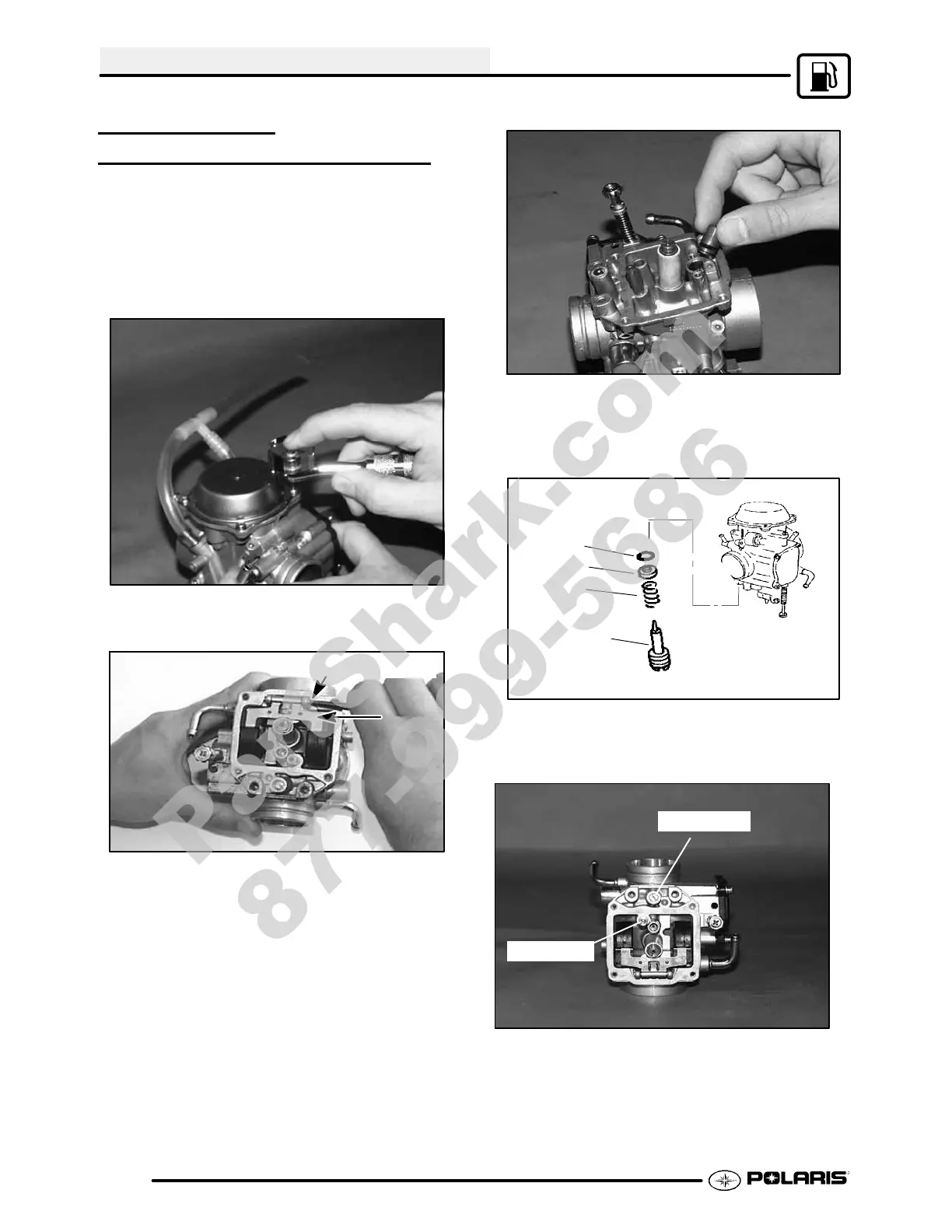

CARBURETOR
DISASSEMBLY - MIKUNI
CV
Use the following disassembly, assembly, and
inspection techniques to service a CV carburetor .
1. Remove carburetor diaphragm chamber cover
with a ratchet style screwdriver. DO NOT use an
impact driver to remove the screws or carburetor
may be permanently damaged.
2. Remove float bowl and carefully remove the
pressed float pin.
Support Here
NOTE: Be careful not to damage the float pin tower
during the float pin removal. Support the float pin
tower while removing the float pin. This helps to
prevent the float pin towers from breaking off.
3. Remove inlet needle seat retaining screw along
with plate, and carefully remove needle seat.
NOTE: Do not use a pliers to remove the seat or
permanent damage may occur.
4. Remove the pilot mixture screw, spring, flat
washer , and O-Ring. NOTE: If an anti-tamper
plugis installedover thepilot screwcavity, it must
be removed for access.
O-Ring
W asher
Spring
Pilot Screw
NOTE: The starter jet is not removeable. Upon
disassembly, place the parts in a container for safe
keeping.
Starter Jet
Pilot Screw
