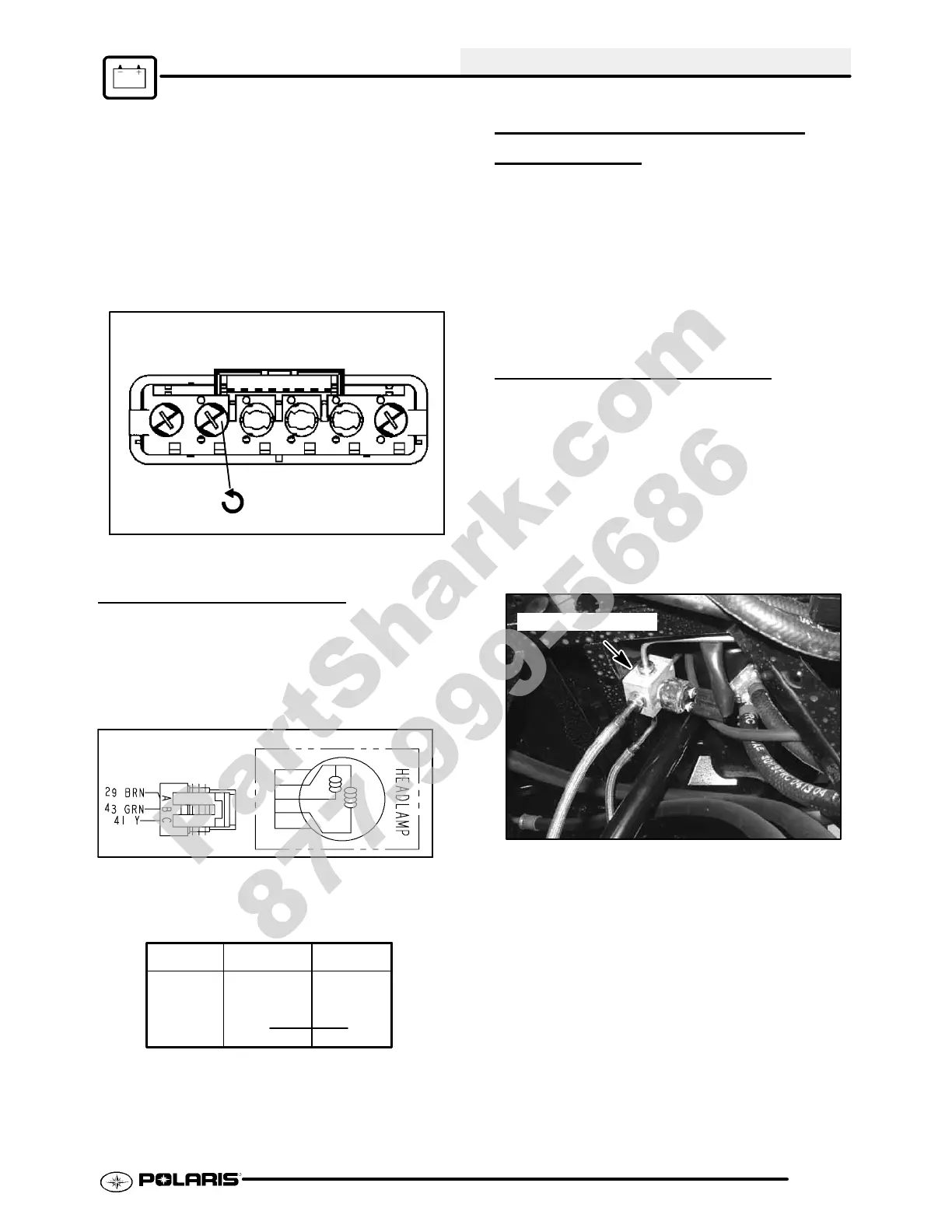

ELECTRICAL
10.27
2. Disconnect indicator light panel from harness, by
lifting the retaining latch from the wire connector.
NOTE: The indicator panel (C) does not have to be
remove from the pod to replace an indicator light.
3. To remove defective light: Use a small
screwdriver and turn light holder a quarter turn,
pull light holder out with a needle nose pliers or
equivalent. Replace with new holder and bulb
assembly and reassemble pod.
Rear view of indicator lamp panel
1/4 Turn
4. Reverse the above steps for installation.
HEADLAMP SWITCH
Follow procedure, Headlight Lamp Replacement, on
Page 10.26 to access connector. Probe the
headlamp plug wires (Brown, Green, Yellow) at back
of connector. T urn headlight on. Test for battery
voltage across the connections.
Check continuity across pins of the left handle bar
switch assembly. See illustration below.
Continuity
R/W
Grn
Off
On
F
F
NEUTRAL LIGHT CIRCUIT
OPERA
TION
Power is supplied tothe transmission switch fromthe
Red/White wire when the key and engine stop switch
areon. Whenneutralisselected,powerflowsthrough
the switch to the Green/White wire, through the lamp
and to ground via the Brown wire.
Ifthelightis notonwhenneutralisselected,checkthe
bulb. If the bulb is good, check the wiring,
transmission switches, and lamp socket ground path.
BRAKE LIGHT SWITCH
1. Remove front cover, if necessary. Look under
front fender area for switch location.
2. Disconnect wire harness from switch.
3. Connect an ohmmeter across switch contacts.
Reading should be infinite (∞).
4. Apply brake at handlebar lever and check for
continuity between switch contacts. Replace
switch if there is no continuity or greater than .5
ohms resistance when the brake is applied with
slight pressure.
Brake Light Switch
