ENGINE
3.25

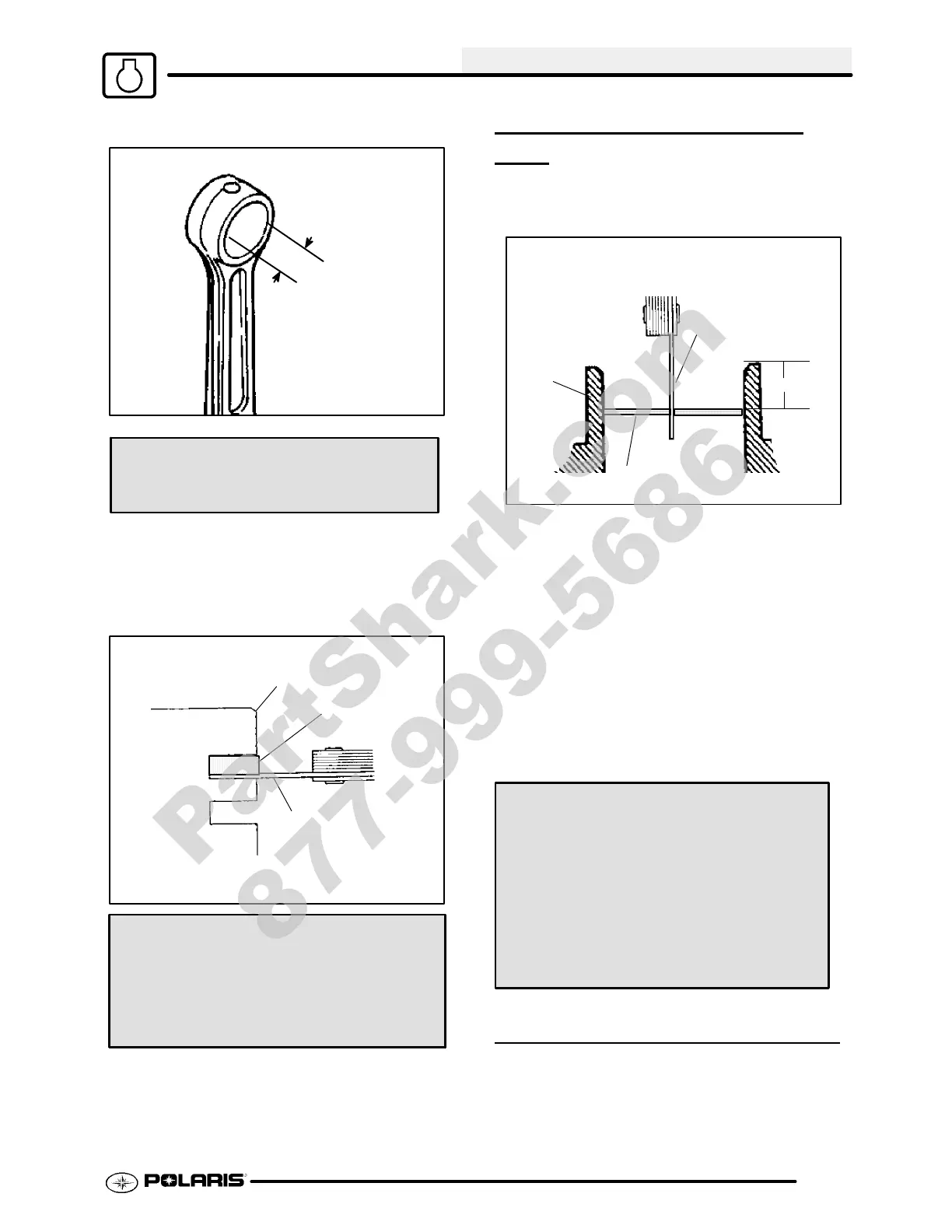

5. Measure connecting rod small end ID.
Connecting Rod Small End I.D.
.7095-.7101I (18.007- 18.023 mm)
6. Measure piston ring to groove clearance by
placing the ring in the ring land and measuring
with athickness gauge. Replacepistonandrings
if ring-to-groove clearance exceeds service
limits.
Piston
Ring
Feeler Gauge
Ring to groove clearance
Piston Ring-to- Groove Clearance
Top Ring Std: .0014-.0030I (.035-.075 mm)
Limit: .0059I (.15 mm)
Second Ring Std: .0010-.0026I (.025-.065
mm)
Limit: .0059I (.15 mm)
PISTON RING INSTALLED
GAP
1. Placeeachpistonringinsidecylinderusingpiston
to push ring squarely into place as shown.
25-50mm
Cylinder
Piston Ring
Feeler Gauge
Piston ring end gap installed
2. Measure installedgap witha feeler gauge at both
the top and bottom of the cylinder .
NOTE: A differencein endgap indicatescylinder
taper. The cylinder should be measured for
excessive taper and out of round.
3. Ifthebottominstalledgapmeasurementexceeds
the service limit, replace the rings.
NOTE: Always check piston ring installed gap after
re-boring a cylinder or when installing new rings. A
re-bored cylinder should always be scrubbed
thoroughly with hot soapy water, rinsed, and dried
completely. Wipe cylinder bore with an oil rag
immediately to remove residue and prevent rust.
Piston Ring Installed Gap
Top Ring
Std: .0079-.0118I (.20-.36 mm)
Limit: .039I (1.0 mm)
Second Ring
Std: .0138-.0197I (.35- .50 mm)
Limit: .039I (1.0 mm)
Oil Ring
Std: .0079-.0236I (.20- .70 mm)
Limit: .059I (1.5 mm)
CRANKCASE DISASSEMBLY
NOTE: The recoilstarter, starter motor, starter drive,
flywheel, stator, cam chain and sprockets can be
serviced with the engine in the frame.
