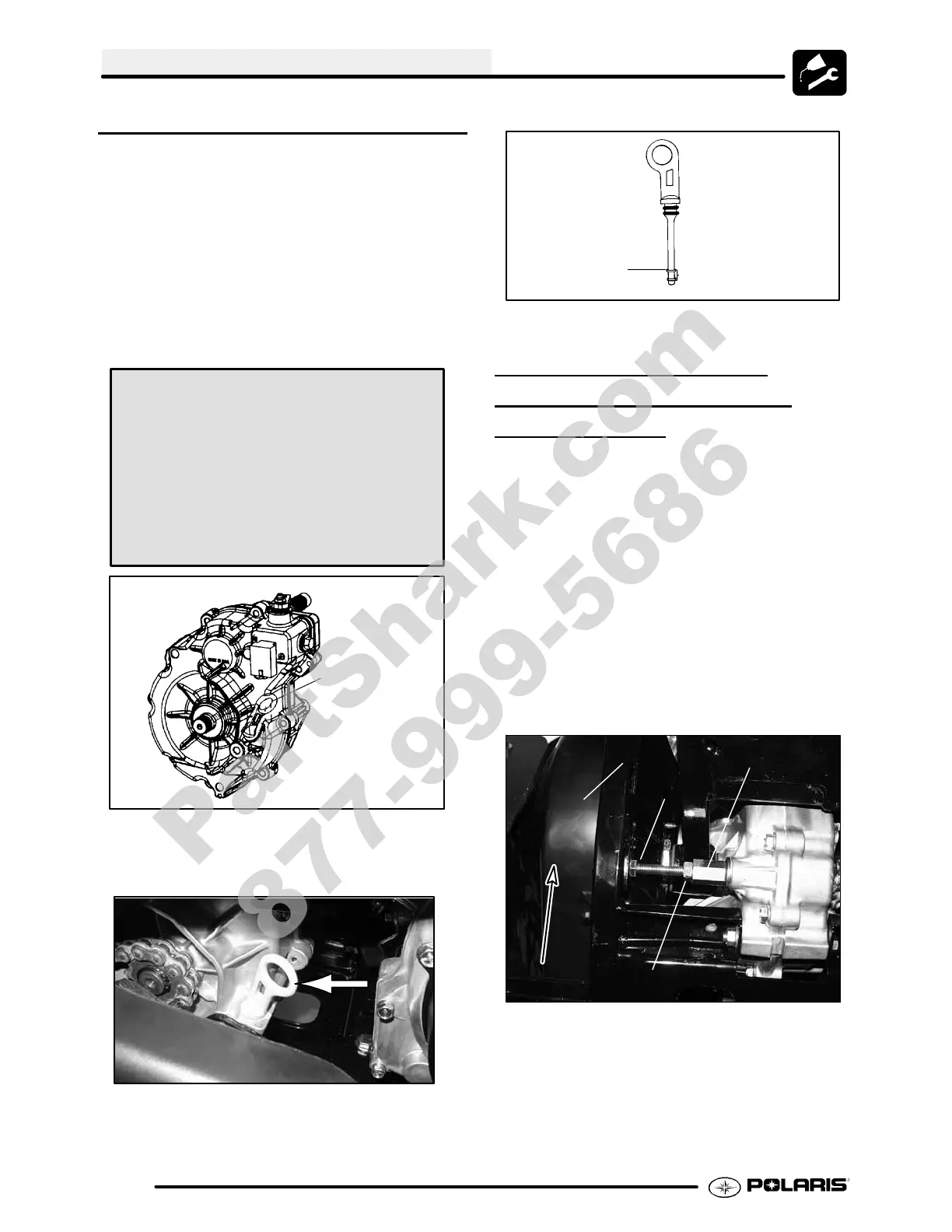

MAINTENANCE
2.12
TRANSMISSION LUBRICATION
The transmission lubricant level should be checked
and changed in accordance with the maintenance
schedule.
G Be sure vehicle is level before
proceeding.
G Check vent hose to be sure it is
routed properly and unobstructed.
G Follow instructions on following
pages to check / change
transmission lubricant.
Specified Lubricant:
Polaris AGL Gearcase Lubricant:
(PN 2873603) (Gallon) (PN 2873602) (12 oz.)
Capacity: 11.3 oz. (335 ml)
Drain Plug / Fill Plug Torque:
14 ft. lbs. (19.4 Nm)
TRANSMISSION SPECIFICATIONS
Transmission
Dipstick
To check the level:
1. Remove dipstick and wipe clean.
2. Reinstall dipstick completely, remove and check
the level. Add the proper lubricant as required to
bring level into operating range as shown.
Full
Operating
Range
TRANSMISSION FLUID
CHANGE/T ORQUE ST
OP
ADJUSTMENT
1. Remove skid plate (if necessary).
2. Place a drain pan beneath the transmission oil
drain plug area.
3. Loosen jam nut (A).
4. Turn adjuster bolt (B) in to allow the removal of
drain plug.
5. Removethedrainplugandwipethemagneticend
clean to remove accumulated metallic filings.
6. After the oil has drained completely, install a new
sealing washer and install the drain plug. Torque
to 14 ft. lbs. (19.3 Nm).
7. Turn adjuster bolt (B) out until it touches the
frame, and then an additional 1/2 turn.
Forward
PVT Cover
A
B
Drain Plug
8. Tighten the jam nut securely while holding the
adjuster bolt.
9. Addthe properlubricant throughthedipstick hole
until the oil level is between the upper and lower
limits. Do not overfill.
10. Check for leaks.
11. ReinstallskidplateifremovedinStep1.
