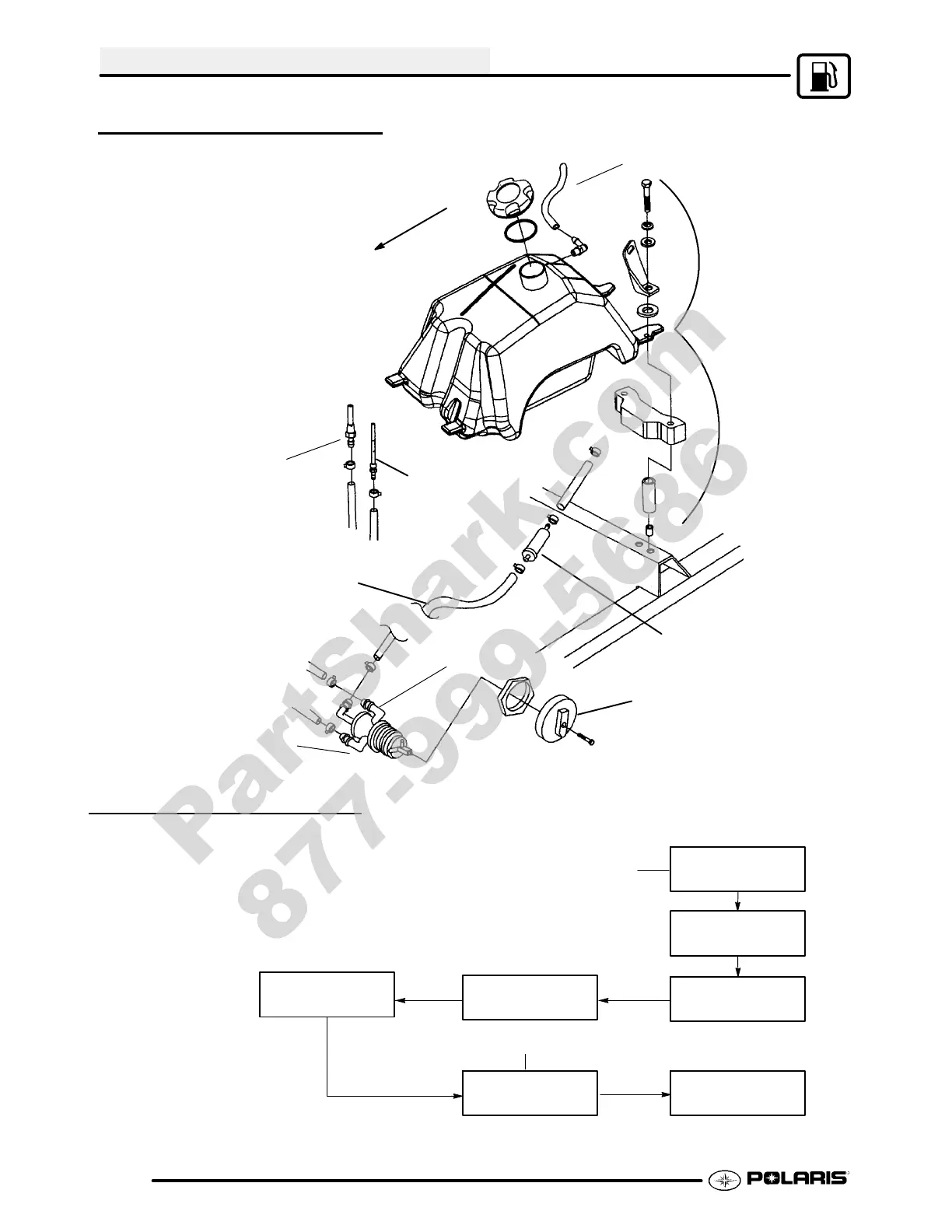

FUEL SYSTEM/CARBURETION
4.4
FUEL TANK ASSEMBLY
Fuel Tank
Fuel Valve
Engine
Filter
Fuel Pump
Carburetor
Fuel Tank Vent
Carburetor Vent
Fitting Screens
L
FUEL FLOW DIAGRAM
Vent line routed smoothly
into center of steering post
Forward
“1 (ON)”
“2 (Reserve)”
Tank to fuel valve connection --
Gold fitting (tall stand pipe) to
“ON”
Gas Tank Mounting
Hardware
Fuel Valve
90 Degree Fuel
Outlet Fitting
90 Degree Fuel
Reserve Outlet Fitting
Fuel Filter
Fuel Line
(Marked “2” on fuel valve)
(Marked 1) on fuel
valve)
L Located Above Coolant Reservoir
Above LH Front Tire
