BODY / STEERING / SUSPENSION
5.6
Front Rack
G Remove: 4 screws, lock washers, and
flat washers
Front Cab Assembly
G Remove: Seat
G Side panels
G 2 screws at rear of cab at fuel tank
mount bracket
G Front rack
G Front bumper
G Front cover panel
G 3 screws from bottom left mudflap
G 3 screws from bottom right mudflap
G 1 inner screw from front cab to foot
rest on each side
G 2 screws under front panel

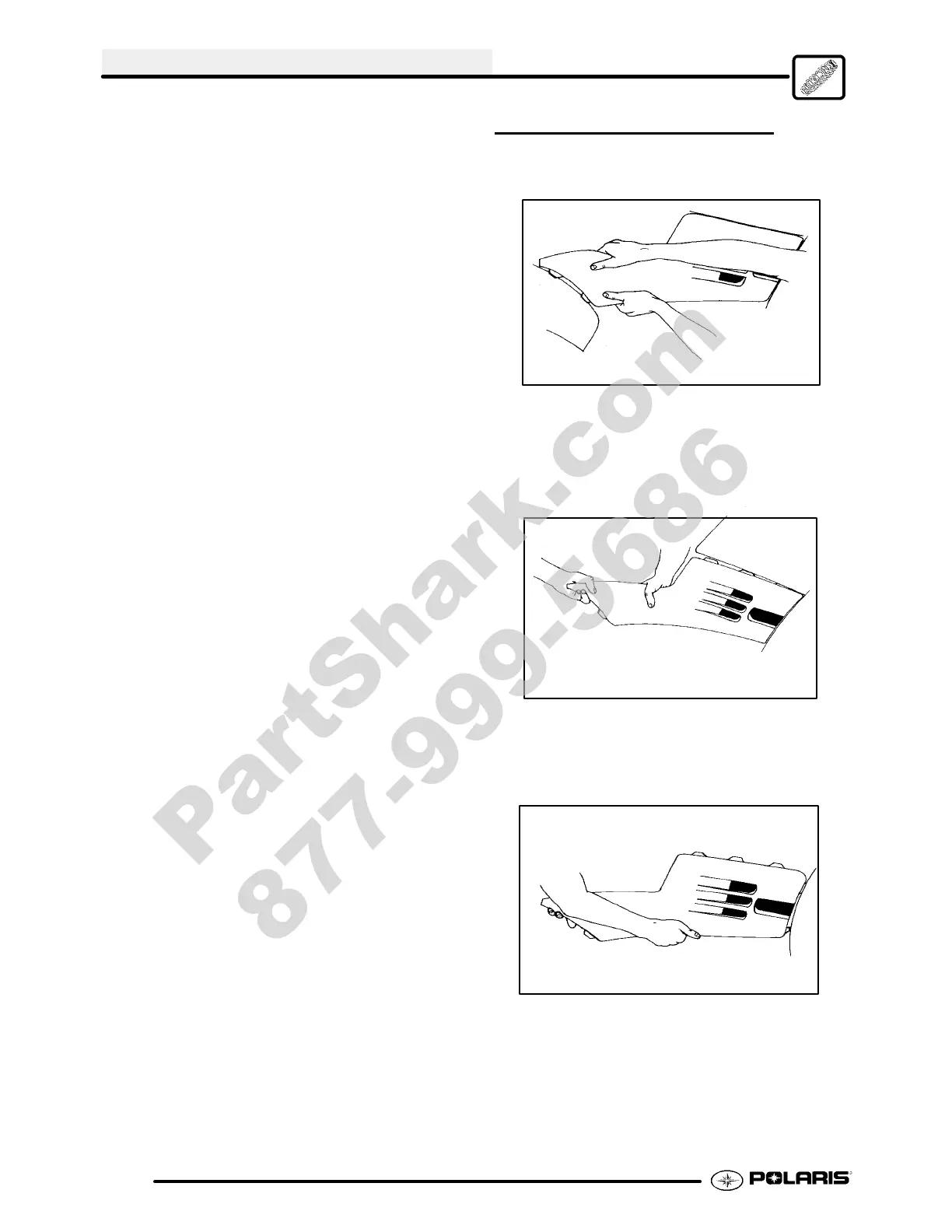

SIDE PANEL REMOVAL
1. Removeseat. Grasp rear of panel near rear cab.
With a quick and firm motion, pull panel forward
and outward to disengage the two rear tabs.
Pull forward and out to disengage
two rear tabs.
Step 1.
2. Place hand on top of side panel behind the fuel
tank. Withaquick and firm motion,pushdownon
the side panel to disengage the top rear tabs.
Then pull up on side panel to disengage front
tabs.
Push down to disengage top rear
two tabs.
Step 2.
3. To reinstall side panel, align panel tabs with slots
onfrontcab. Pushpanelupwardandforwarduntil
tabs lock. Bend rear of side panel and insert the
two tabs into the rear cab.
To reinstall, align panel tabs with slots.
Push upward and forward until tabs lock.
Step 3.
