MAINTENANCE
2.19
ENGINE MOUNTS
Inspect rubber engine mounts for cracks or damage.
ENGINE FASTENER TORQUE
Check engine fasteners and ensure they are tight.
BATTERY MAINTENANCE
WARNING
Batteryelectrolyteispoisonous. Itcontains
sulfuricacid. Serious burnscan resultfrom
contact with skin, eyes or clothing. Anti-
dote:
External: Flush with water.
Internal: Drink large quantities of wateror
milk. Follow with milk of magnesia, beaten
egg, or vegetable oil. Call physician im-
mediately.
Eyes: Flush withwater for15 minutes and
get prompt medical attention.
Batteries produce explosive gases. Keep
sparks, flame, cigarettes, etc. away. Venti-
late when charging or using in an enclosed
space. Always shield eyes when working
nearbatte ries. KEEPOUT OF REACHOF
CHILDREN.
NOTE: All Trail Boss ATV batteries are
Maintenance --Free design and construction. All
Maintenance--Freebatteries arefully chargedand
tested at the factorybefore installation. Expected
shelf life is 6--8 months depending on storage
conditions. As a general rule before placing the
battery into service, check the battery condition
and charge accordingly .
Maintenance --Free batteries are permanently
sealed at the time of manufacture. The use of
lead--calcium and AGM technology instead of
lead--antimony allows the battery acid to be fully
absorbed. For this reason, a Maintenance--Free
battery case is dark and the cell caps are not
removable, since there is no need to check
electrolyte level.
NEVER attempt to add electrolyte or wate r to a
Ma inte na nce--Fre e batt e r y. Doing so will dam age
the case and shorten the life of the battery. Refer
to the Battery Maintenance V ideo (PN 9917987) for
prope r instruc t ion on ser v ic ing Maint e na nc e--Free
batteries .

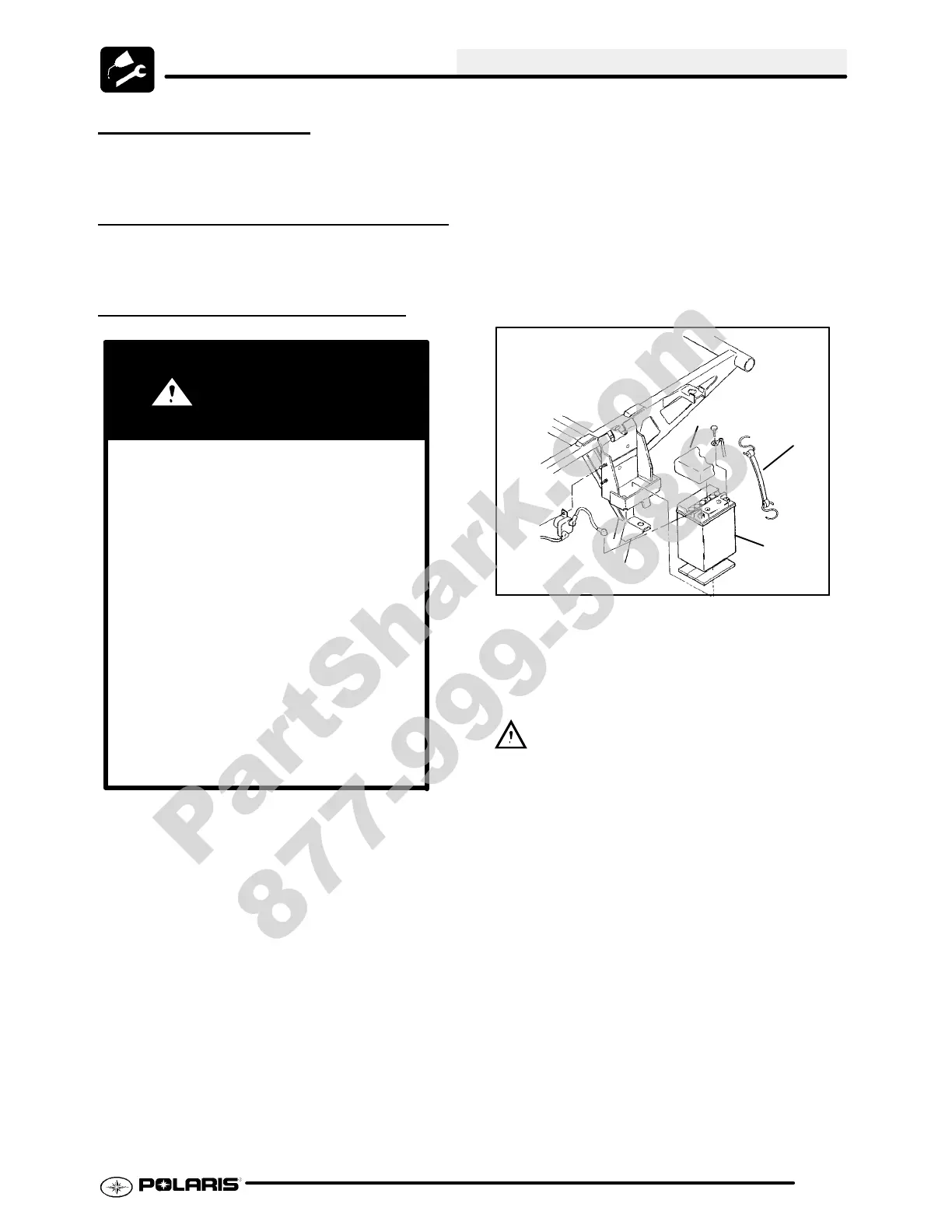

The battery is located under the left rear fender.
A
B
Battery
To remove the battery:
1. Disconnect holder strap (A) and remove cover
(B).
2. Disconnect batterynegative(-)(black) cablefirst,
followed by the positive (+) (red) cable.
CAUTION
To reduce the chance of sparks: Whenever
removing the battery, disconnect the negative
(black) cable first. When reinstalling the battery,
install the negative cable last.
3. Remove the battery.
4. Cleanbatterycablesandterminalswithastif fwire
brush. Corrosion can be removed using a
solution of one cup water and one tablespoon
baking soda. Rinse well with clean water and dry
thoroughly.
5. Reinstallbattery,attachingpositive(+)(red)cable
first and then the negative (-) (black) cable.
6. Coat terminals and bolt threads with Dielectric
Grease (PN 2871329).
7. Reinstall battery cover and holder strap.
