MAINTENANCE
2.23
ENGINE OIL LEVEL
To check the oil level:
1. Set machine on a level surface.
2. Start and run engine for 20-30 seconds. Thiswill
return oil to its true level in the engine sump.
3. Stop engine, remove dipstick and wipe dry witha
clean cloth.
4. Reinstall dipstick, screwing into place.
5. The dipstick must be screwed completely in to
ensure accurate measurement.
6. Remove dipstick and check to see that the oil
level is in the normal range. The oil should be
between thetop of the bottom crosshatched area
andthebottomofthetopcrosshatchedarea. Add
oilas indicatedbythelevelonthedipstick. Donot
overfill.

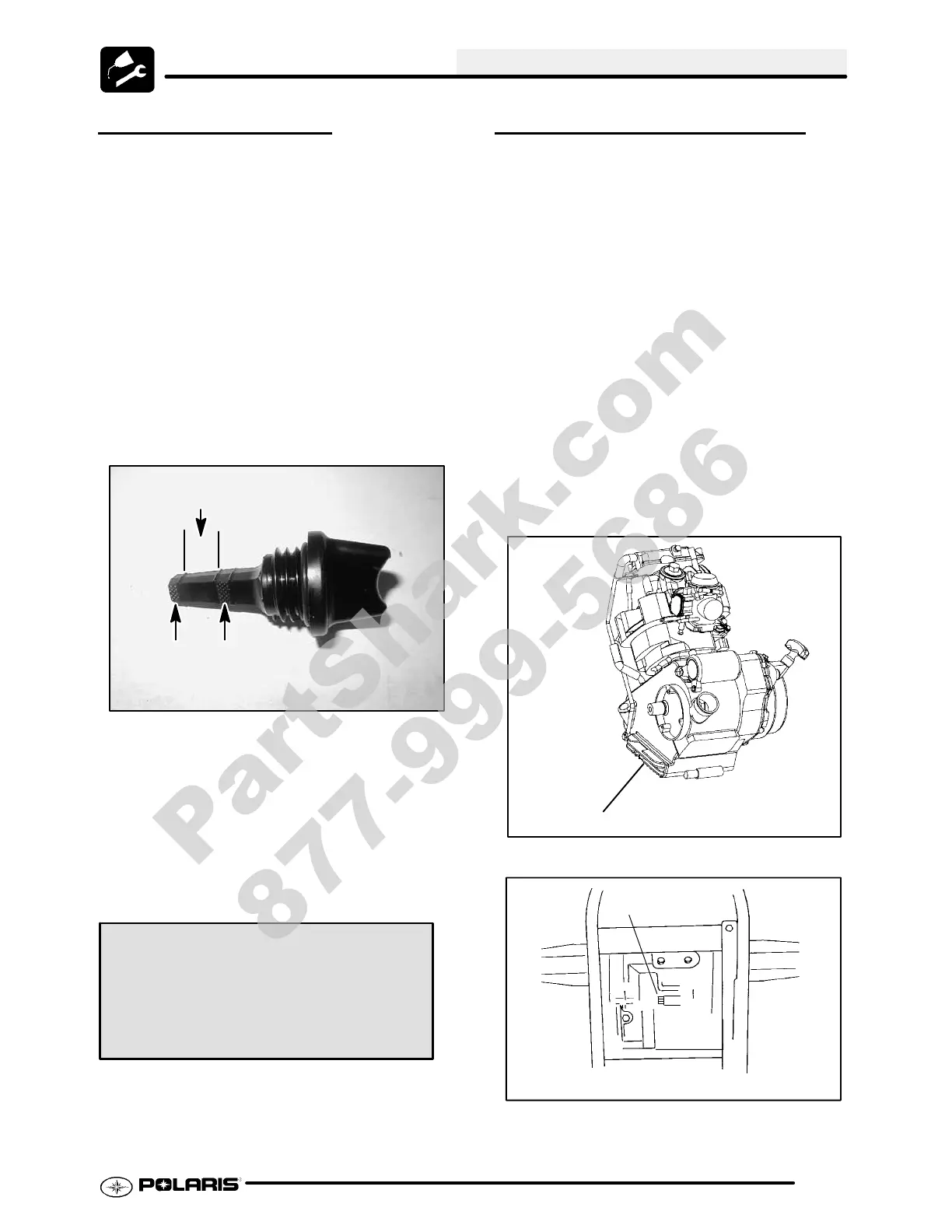

Crosshatch Areas of Dipstick
Normal Oil Operating
Range is between crosshatch.
NOTE: Do not fill the over the normal oil operating
range. Filling over the normal operating range could
cause a mist of oil to enter the air box.
NOTE: Rising oil level between checks in cool
weatherdriving,canindicatemoisturecollectinginthe
oil reservoir. If the oil level is over the full mark,
change the oil.
Recommended Engine Oil:
Polaris Premium 4 All Season
Synthetic, 2W--50
OIL AND FILTER CHANGE
1. Place vehicle on a level surface.
2. Cleanarea around drain plugat bottomof oilpan.
3. Runenginetwotothreeminutesuntilwarm. Stop
engine.
4. Place a drain pan beneath oil pan and remove
drain plug fromunder thecrankcase. CAUTION:
Oil may be hot. Do not allow hot oil to come into
contact with skin as serious burns may result.
5. Allow oil to drain completely.
NOTE: It is not necessary to drain the oil from the oil
cooler , unless contaminants, water, or debris are
found in the crankcase oil.
6. Replacesealingwasher(A)ondrainplug. NOTE:
The sealing surfaces on drain plug and oil tank
should be clean and free of burrs, nicks or
scratches.
7. Reinstall drain plug and torque to 14 ft. lbs. (19
Nm).
Drain plug located under the engine.
Engine Sump Drain Plug - Bottom View
Crankcase Drain
8. The oil filter is located on the right side of the
machine. Place shop towels beneath oil filter.
