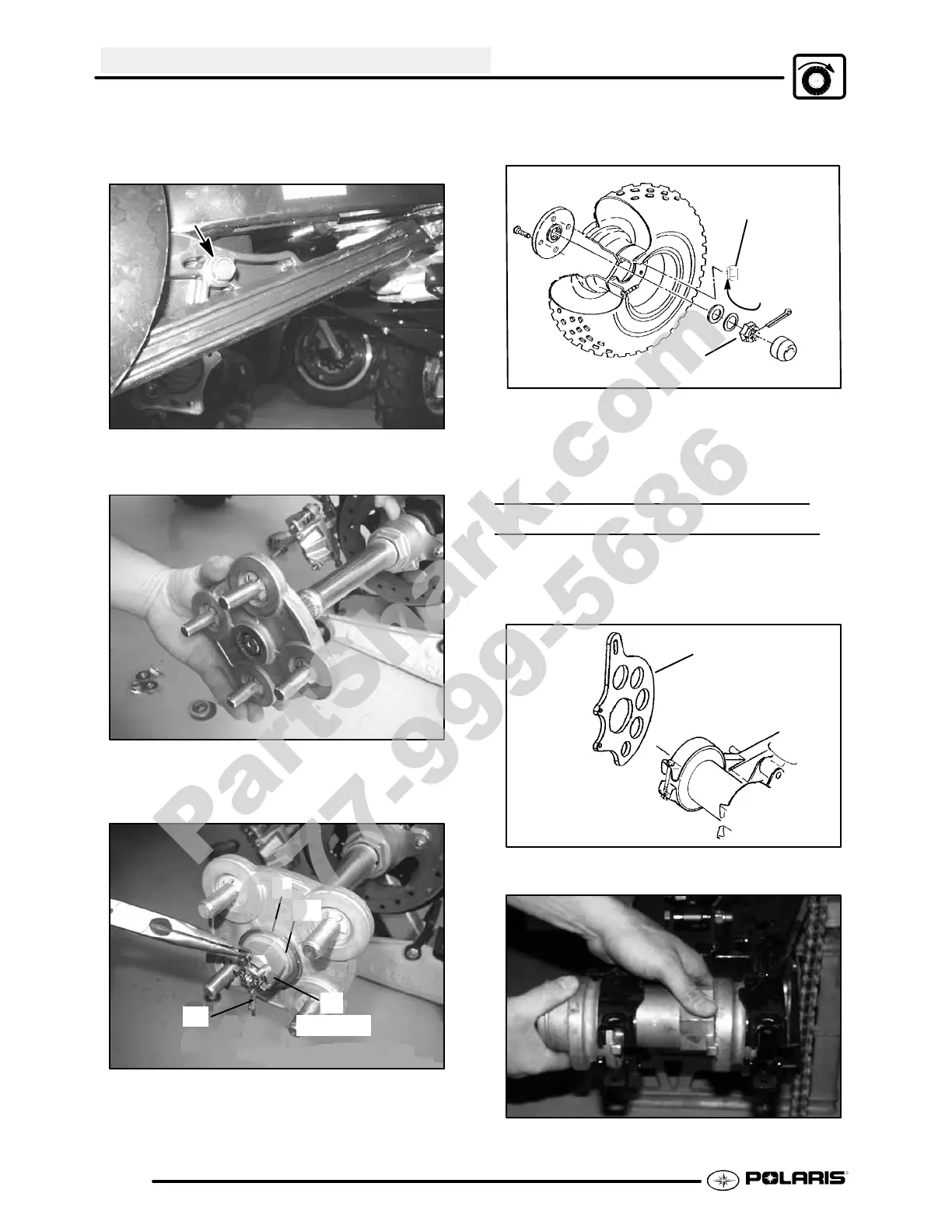

FINAL DRIVE
7.10
11. Install the chain guard if previously removed.
Install the bolt and spacer to secure the chain
guard into place.
12. Apply Anti--Seize lube to the axle splines. Install
the rear wheel hubs on both sides.
13. Installflatwasher(I),cupped washer(m)andhub
nut (J). Torque the hub nut to 80 ft.lbs. (109 Nm).
Install a new cotter pin (K).
I
J
K
80 ft.lbs.
M
14. Installtherearwheelsandtorquewheelnutsto50
ft. lbs. (68 Nm).
Rear Wheel
Rear Wheel Nuts (4)
50 ft. lbs. (68 Nm)
Rear Hub Nut
80 ft. lbs. (108 Nm)
Taper end faces
wheel for install.
15. Lubricate the axle housing through the grease
fitting with Polaris All Season Grease (PN
2871423).
CONCENTRIC SWINGARM
REAR HOUSING REMOV
AL
1. Remove rear axle.
2. Remove the caliper mounting bracket (A) from the
side of the axle housing.
A
3. Remove the rear housing from the swingarm.
4. Inspect housing for cracks or wear. Replace if
damaged.
