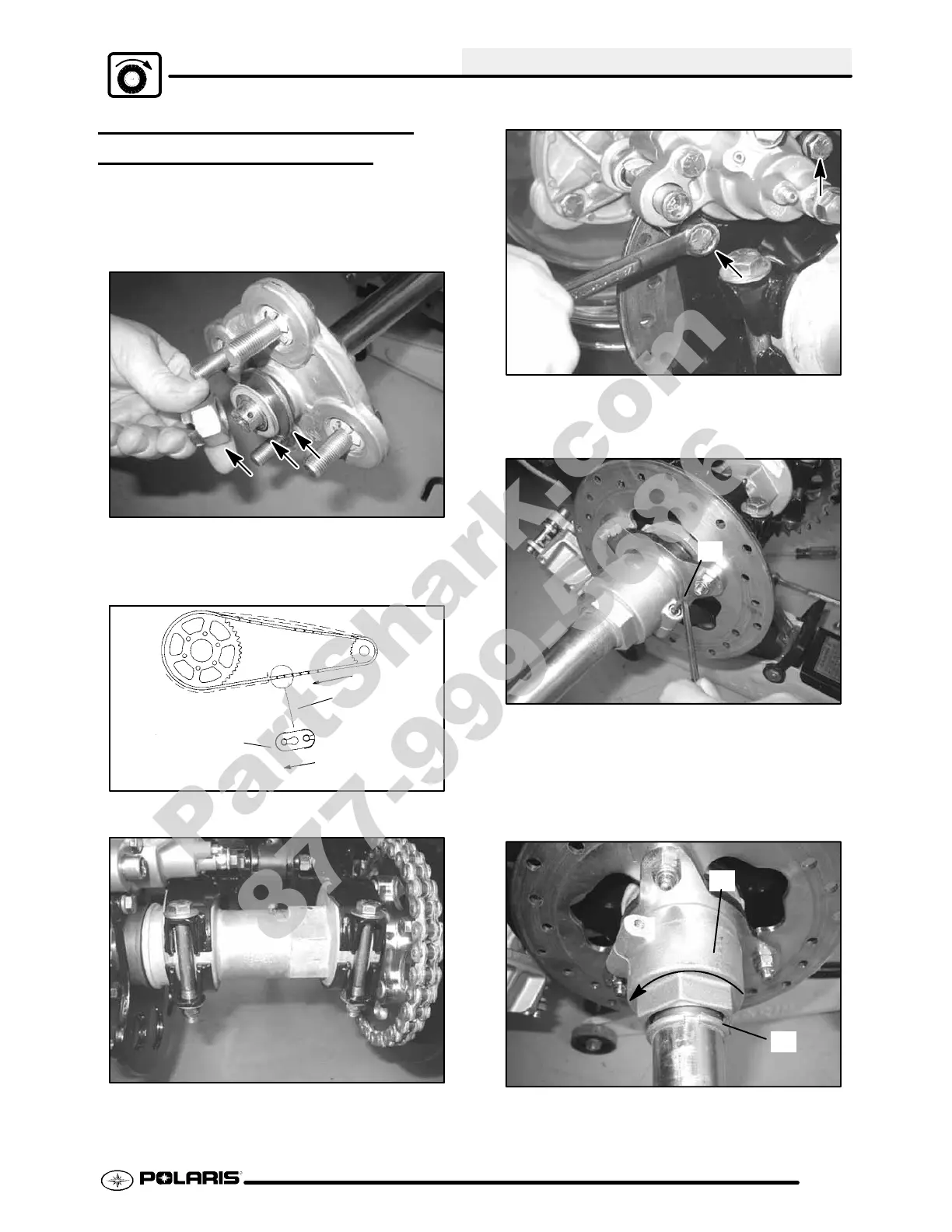

FINAL DRIVE
7.7
CONCENTRIC SWINGARM
REAR AXLE REMOV
AL
1. Securely support rear of machine with rear wheels
off the floor . Remove rear wheels.
2. Removing the cotter pin, hub nut, and washer ,
Pull off the left side hub.
3. Remove the splice link clip and remove the drive
chain. Loosen or remove thechain guardlocated
at the bottom of the swingarm under the chain.
Remove the
Splice link Clip
Opening
Position
4. Loosen the concentric clamp bolts.
5. Removeth etwobol ts thatsecureth e brakecaliper.
Support the rear caliper with wire or a tie strap. Do
not hang the caliper by brake line.
6. Loosen the hex screw (A) to loosen the axle nut.
A
7. Turntheaxlenut collar (B)counter clockwisewith
a13/4”Wrench(PN 2870772) until the retaining
ring(C)isvisible. Slidetheretainingring(C)down
the axle.
B
C
8. Slide the axle nut collar (B) and brake disc from
the axle.
