Polaris 2009 Trail Boss 330 Service Manual

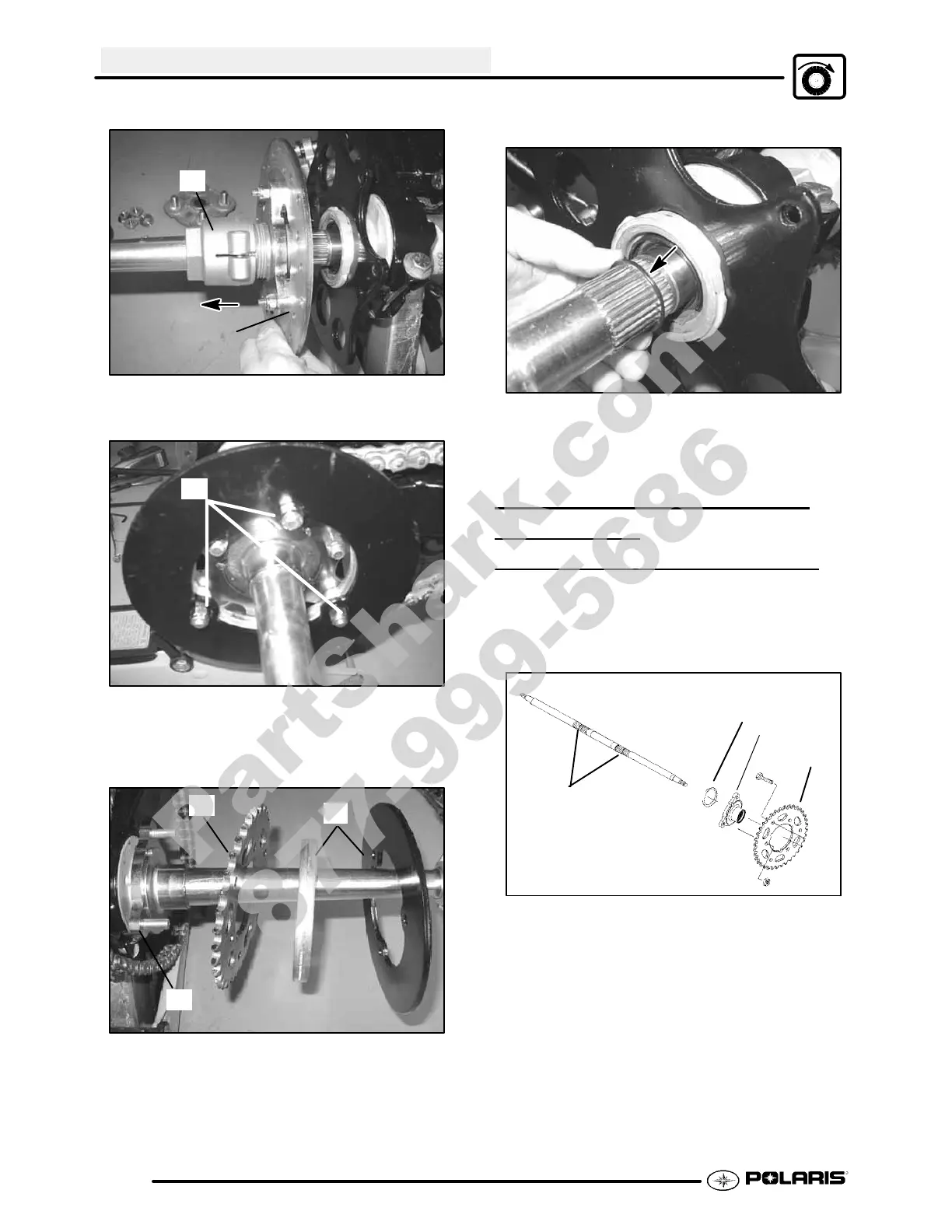

FINAL DRIVE
7.8
B
Brake Disc
9. Remove the three bolts that secure the sprocket
guard (C) on the other side of the axle.
C
10. Remove the three nuts that secure the sprocket
(D)to the sprocket hub(E). Pullthe sprocket(D),
sprocket hub (E), and guard assembly (F) from
the axle.
D
E
F
11. Remove the O--rings from left side of the axle.
12. Slide the axle out the right side of the axle
housing.
CONCENTRIC SWINGARM
REAR
AXLE
ASSEMBLY/INSTALLA
TION
1. Apply Never Seize onto the splines of the axle.
Lubricateand installthe O--ring (A), sprocket hub
(B), and sprocket (B). Slide the axle into the right
side of the axle housing.
A
B
C
Never Seize
2. Mount sprocket to sprocket hub and install
sprocket nuts. Torque sprocket nuts to 16--19
ft.lbs. (22--26 Nm).
