BRAKES
9.12

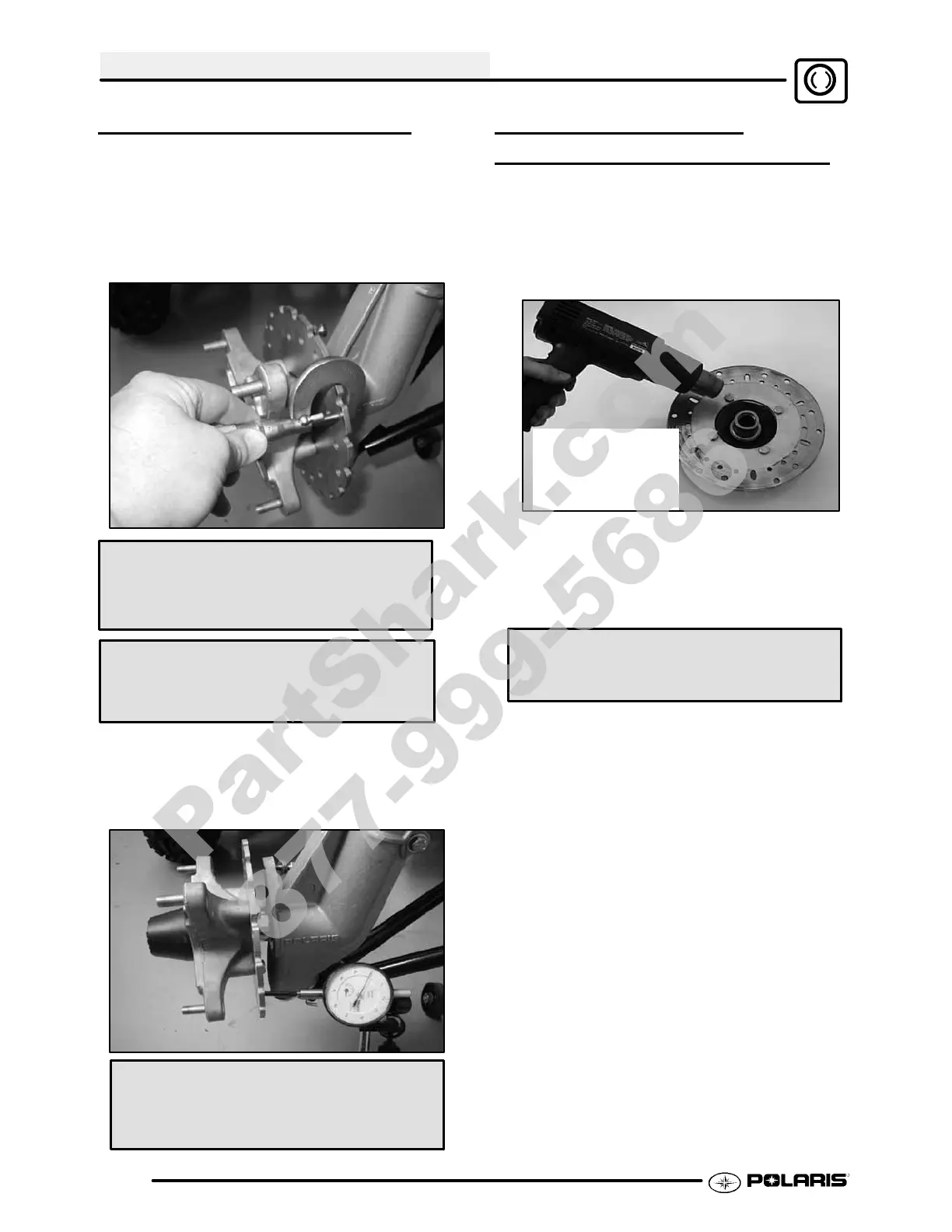

FRONT DISC INSPECTION
1. Visually inspect the brake disc for nicks,
scratches, or damage.
2. Measure the disc thickness at eight different
points around the pad contact surface using a
0-1″ micrometer. Replace disc if worn beyond
service limit.
Brake Disc Thickness
Service Limit .140″ / 3.556 mm
New .150-.164″ (3.810-4.166 mm)
Brake Disc Thickness Variance
Service Limit: .002″ (.051 mm)
difference between measurements.
3. Mount dial indicator as shown to measure disc
runout. Slowly rotate the disc and read total
runout on the dial indicator . Replace the disc if
runout exceeds specifications.
Brake Disc Runout
Service Limit .010″ (.254 mm)
FRONT BRAKE DISC
REMOVAL /
REPLACEMENT
NOTE: To reduce the possibility of warpage, try
removing the brake disc mounting bolts before
applying heat to the bolts.
1. Applyheat to thehub in the areaof thebrakedisc
mounting bolts to soften the bolt locking agent.
18 ft. lbs. (25 Nm)
new bolts have
pre-applied
locking agent.
2. Remove bolts and disc.
3. Clean mating surface of disc and hub.
4. Install disc on hub.
5. Install new bolts and tighten to specified torque.
Front Brake Disc Mounting Bolt Torque
18 ft. lbs. (25 Nm)
CAUTION: Always use new brake disc mounting
bolts. The bolt s have a pre- applied locking agent
which is des t roy ed upon rem oval.
