Polaris 2009 Trail Boss 330 - Strut Assembly

BODY / STEERING / SUSPENSION
5.10

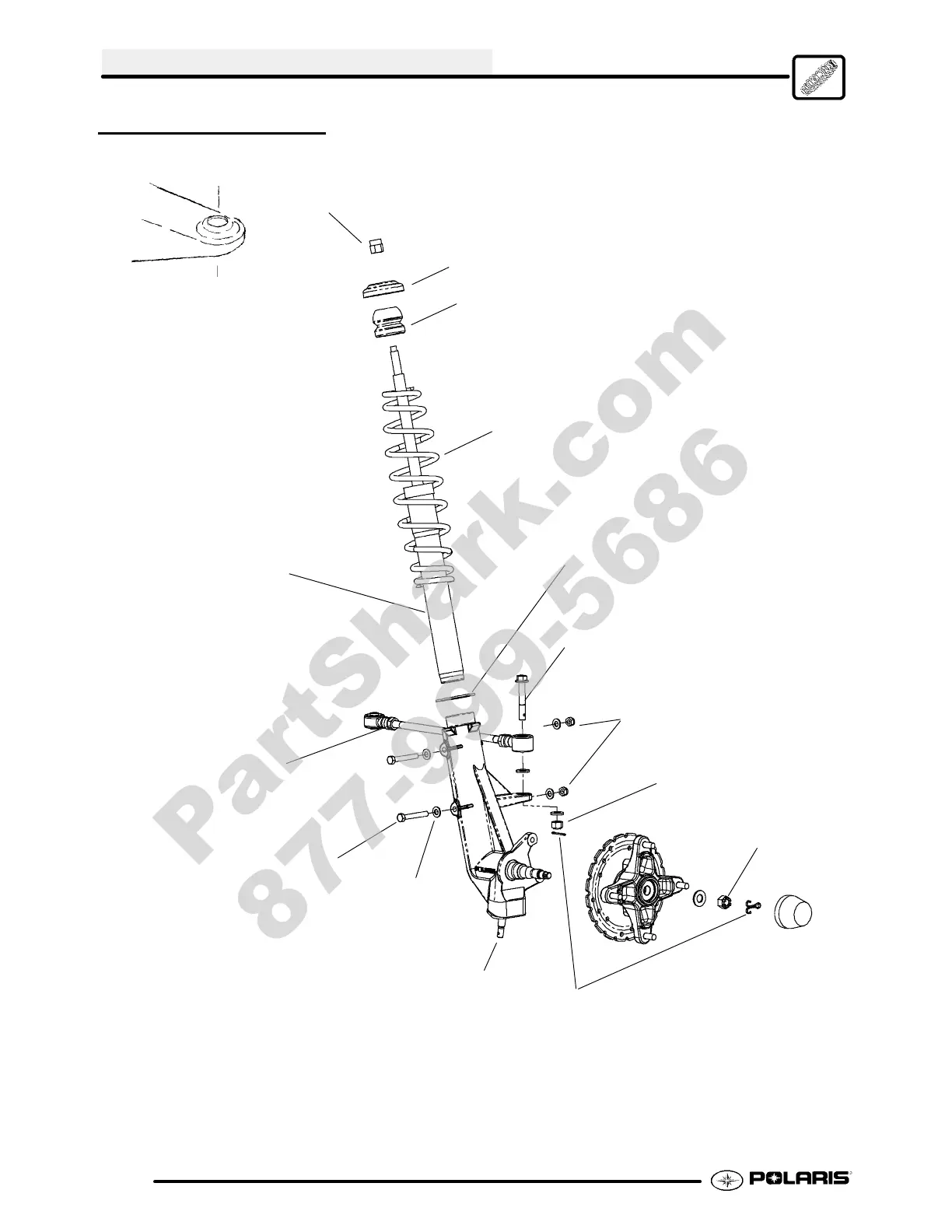

STRUT ASSEMBLY
15 ft. lbs.
(21 Nm)
Nut
15 ft. lbs.
(20 Nm)
40 ft. lbs.
(54 Nm)
Cotter Pin
Lower A--Arm Pivot
W asher
Spring Retainer
Spring
Pinch Bolt
Jam Nut
Spring Retainer
Strut Bumper
45 ft. lbs.
(61 Nm)
Strut
14 ft. lbs.
(19 Nm)
Tie--Rod Bolt
Hub Nut
25 ft. lbs.
(35 Nm)
