CLUTCH
6.7
PVT SEALING AND DUCTING COMPONENTS

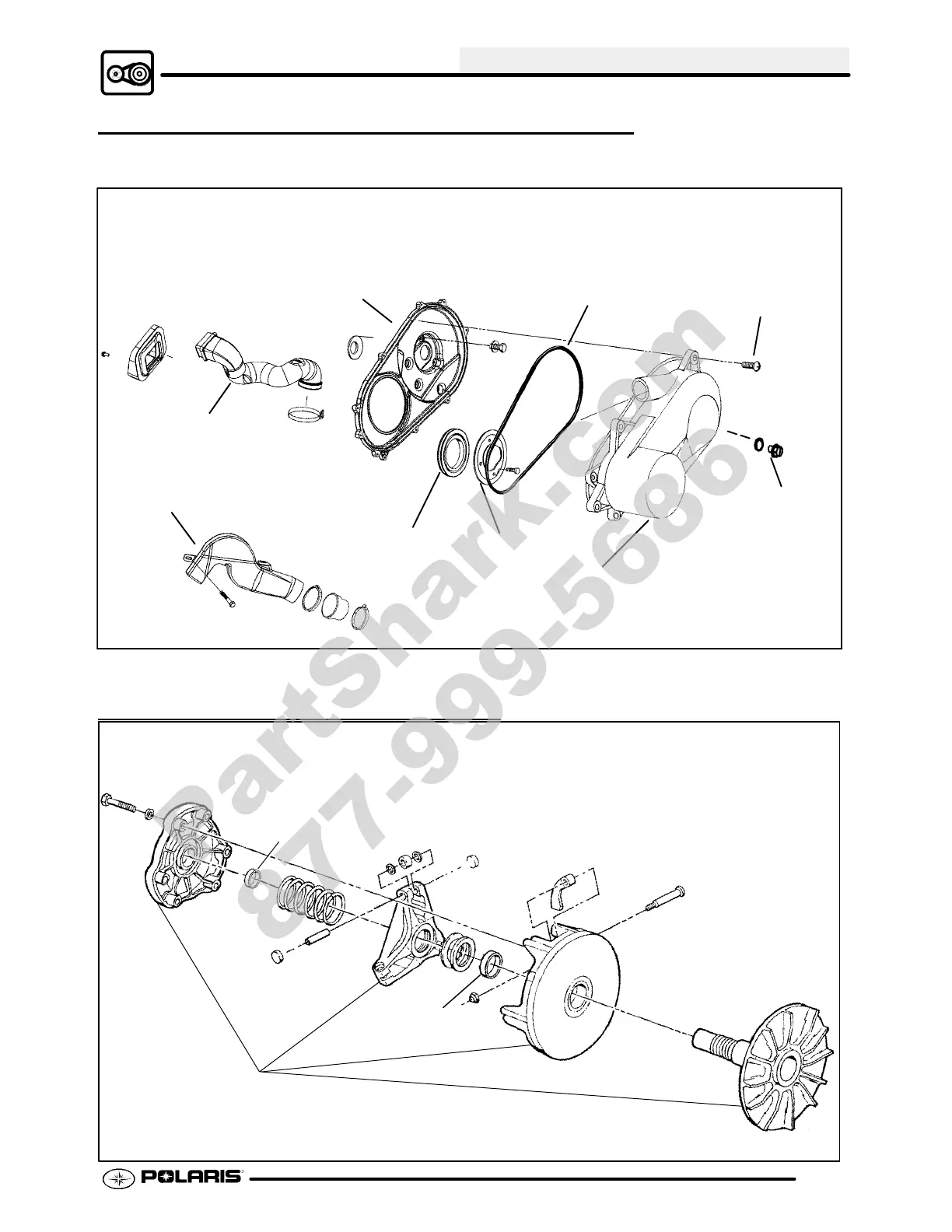

DRIVE CLUTCH EXPLODED
VIEW
Outer Cover
Exhaust Duct
Inner Cover Seal
Retainer
Cover Screws (9)
Inner Cover
Outer Cover Seal
Drive Clutch
Mark with permanent
marker before disassembly
Teflont coated
brass bushing
Teflont coated
brass bushing
Inlet Duct
Drain Plug
