FINAL DRIVE
7.2
SPECIAL TOOLS
PART NUMBER TOOL DESCRIPTION
2870872 Shock Spanner Wrench
2870871 Ball Joint Replacement
Tool
2870623 Shock Absorber Spring
Compression Tool
2871572 Strut Rod Wrench
2871573 LH Strut Spring
Compressor
2871574 RH Str ut Spring
Compr essor
2871199 Seal Sleeve Installation
Tool Kit
WHEEL, HUB, AND SPINDLE
TORQUE TABLE
¡
Item Specification
Front Wheel Nuts 27 Ft. Lbs. (37 Nm)
Rear Wheel Nuts 50 Ft. Lbs. (68 Nm)
Front Spindle Nut 40 Ft. Lbs. (54 Nm)
Rear Hub Retaining Nut 80 Ft. Lbs. (109 Nm)
¡
Refer to exploded views and text for torque values
of other fasteners
CAUTION: Locking nuts, and bolts with preapplied
locking agent should be replaced if removed. The
self-locking properties of the nut or bolt are reduced
or destroyed during removal.
FRONT HUB
DISASSEMBL
Y/INSPECTION
1. Elevate front end and safely support machine
under footrest / frame area.
CAUTION: Serious injury may result if machine tips
or falls. Be sure machine is secure before beginning
this service procedure. Wear eye protection when
removing bearings and seals.

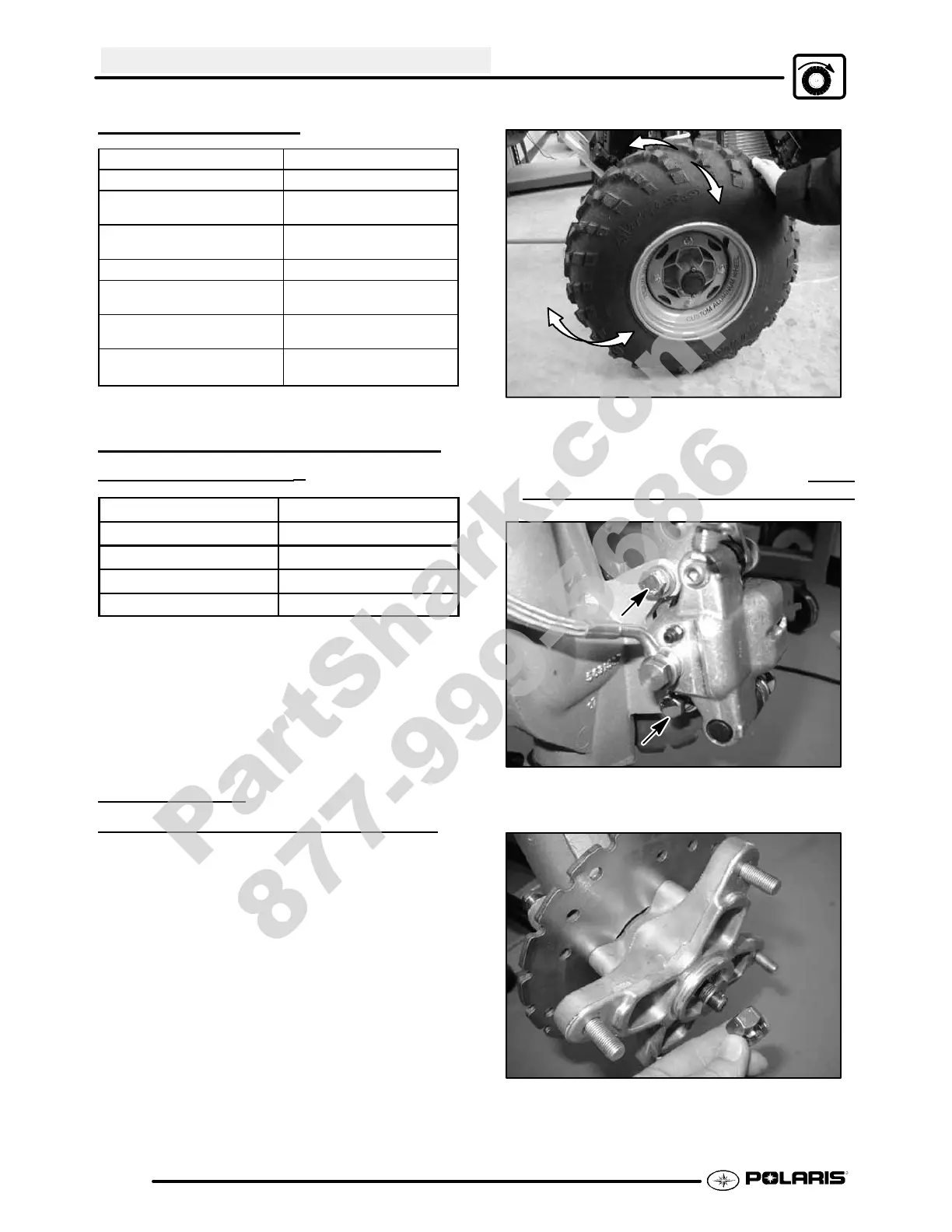

2. Check bearings for side play by grasping tire /
wheel firmly (top and bottom) and checking for
movement. It should rotate smoothly without
binding or rough spots.
3. Remove wheel nuts and wheel.
4. Removethetwo brakecaliper bolts and thebrake
caliper . Use mechanic’s wire or other suitable
material to support the caliper assembly. Do
not
allow caliper assembly to hang by the brake line!
5. Removehubcap,cotterpin, frontspindlenut,and
washer .
