FINAL DRIVE
7.3

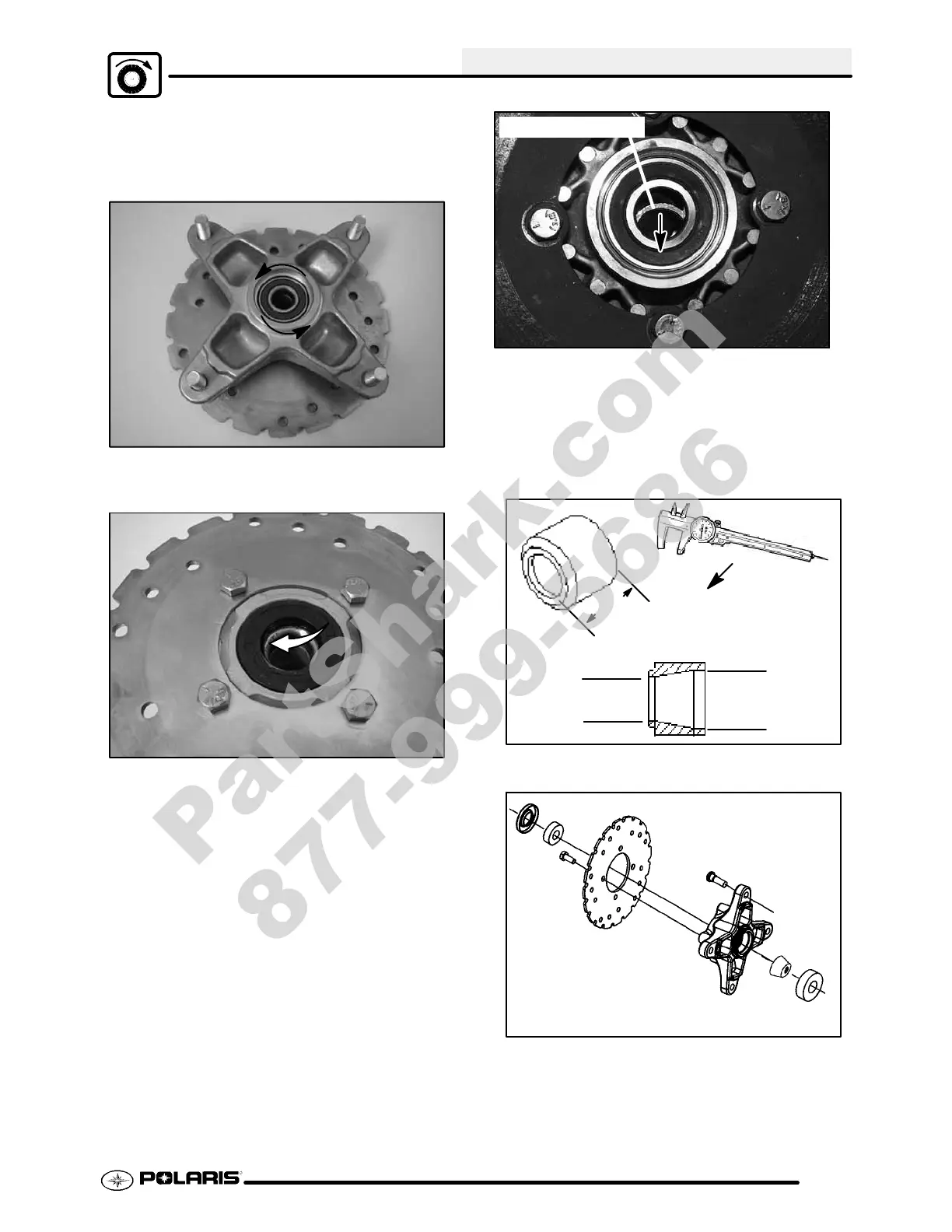

6. Rotate each bearing by hand and check for
smooth rotation. Visually inspect bearing for
moisture, dirt, or corrosion. Replace bearing if
moisture, dirt, corrosion, or roughness is evident.
7. Use a flat head screw driver to carefully pry the
seal out of the hub.
8. Usingabrass drift,tapbearing spacertoone side
to expose inner bearing race. Drive bearing out
using a drift through opposite side of hub and
discard.
Tap spacer to side
9. Remove spacer. Drive other bearing out and
discard.
10. Clean hub and spacer thoroughly.
11. Inspect spacer for wear or damage. Measure
length of spacer and replace if worn beyond
service limit or if ends are rounded.
0.774 ± 0.008”
(19.66 ± 0.203 mm)
0.60 ± 0.005”
(15.24 ± 0.127 mm)
0.797 ± 0.005”
(20.24 ± 0.127 mm)
12. Lay out parts for reassembly.
