FINAL DRIVE
7.11

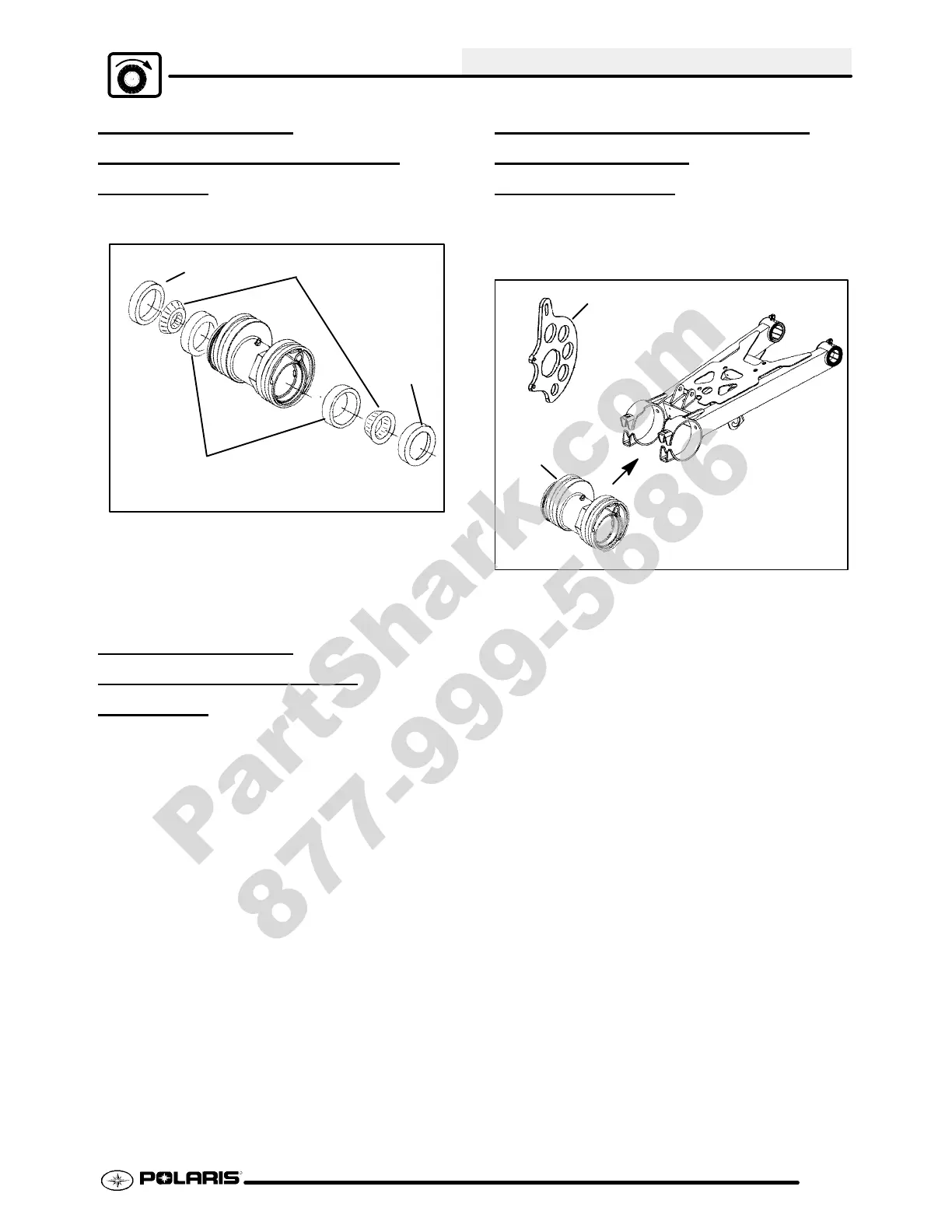

REAR HOUSING
DISASSEMBL
Y/BEARING
SER
VICE
1. Remove seals from housing.
Seal
Bearing
Bearing Race
Seal
2. Remove bearings.
3. Drive bearing race out from opposite sides.
4. Inspect housing for cracks or wear. Replace if
damaged.
REAR HOUSING
ASSEMBL
Y/BEARING
SER
VICE
1. Drivein new bearing racewithbrass drift, making
sure that race fully seats in the housing.
2. Lubricate and install new tapered bearings.
3. Lubricate and install new seals.
CONCENTRIC SWINGARM
REAR
HOUSING
INSTALLA
TION
1. Re--install the housing (A) into the swing arm
mounts. Re--install the brake caliper mounting
bracket (B) onto the housing.
Swing arm
A
B
2. Install rear axle. (See Page 7.22)
3. Fill housing with grease until grease purges from
both seals.
