FINAL DRIVE
7.12

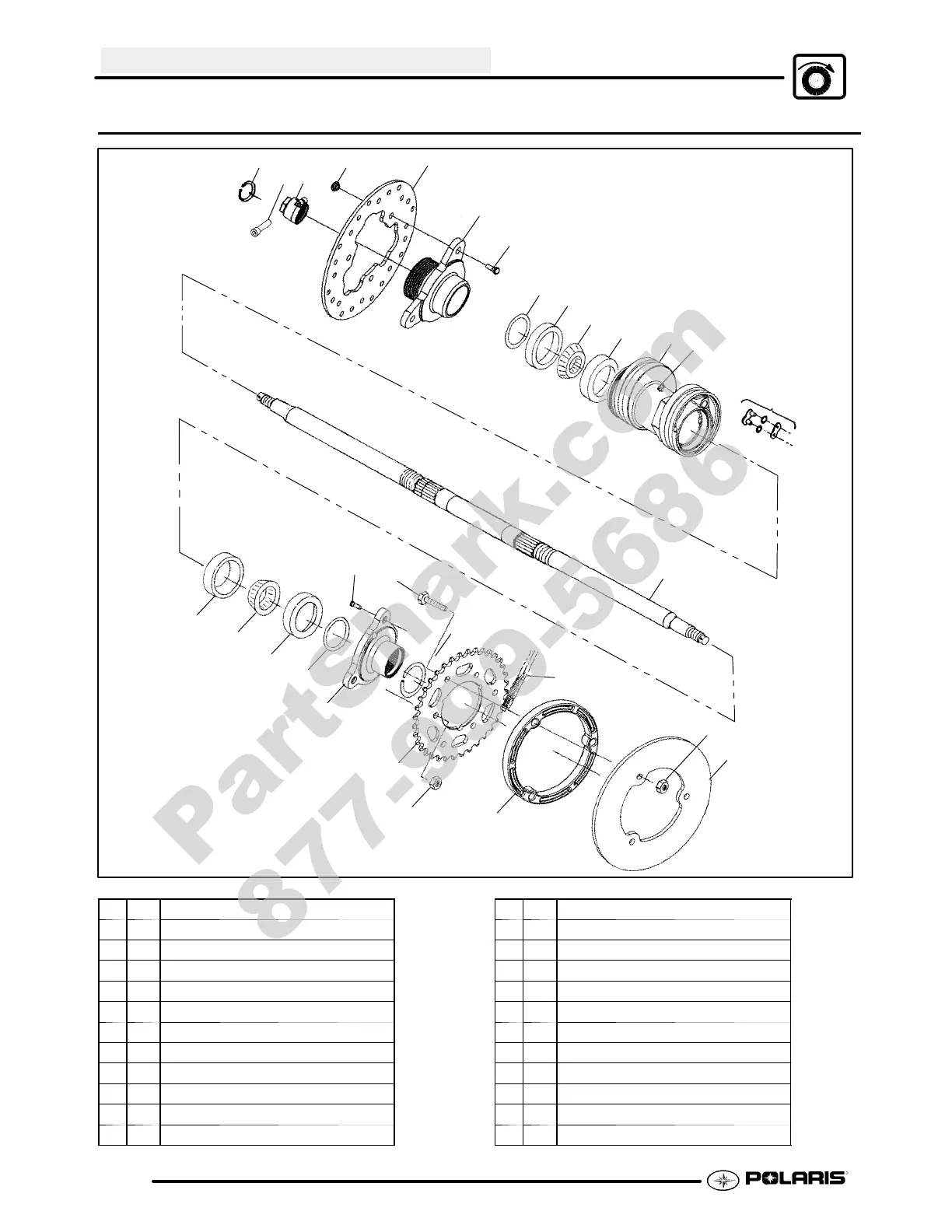

CONCENTRIC SWINGARM REAR AXLE ASSY, EXPLODED VIEW
1
23
4
5
6
7
8
9
10
11
12
13
14
15
16
12
11
10
9
22
24
23
21
18
17
20
18
19
1.
1 Ring, Retaining
2. 1 Screw
3. 1 Nut, Axle
4. 3 Nut, Nylok
5. 1 Disc, Brake
6. 1 Hub, Brake Disc
7. 3 Screw
8. 1 Ring, Retaining
9. 2 O-Ring
10. 2 Seal
11. 2 Bearing, Cone, Tapered
12. 2 Bearing, Cup, Tapered
13. 1 Housing, Axle, Rear
14. 1 Fitting, Lubric ation
15. 1 Link, Connector, 520
16. 1 Axle, Rear
17. 1 Chain, 520 O-Ring
18. 6 Nut, Nylok
19. 1 Guard, Sprocket
20. 1 Spacer
21. 1 Sprocket, 36T
22. 1 Asm., Hub, Sprocket (Incl. 24.)
23. 3 Screw
24. 3 Stud
